Packing Machine Manufacturer
Zhangjiagang Mic Machinery offers high-performance packing machines designed to streamline packaging operations for a wide range of containers—bottles, cans, jars, and cartons. Our machines ensure safe, reliable, and consistent packaging, ideal for beverage, food, pharmaceutical, and chemical industries.
With over 15 years of packaging automation experience, we provide machines that enhance line speed, reduce labor, and protect your products through every stage of packing.
What Is a Packing Machine?

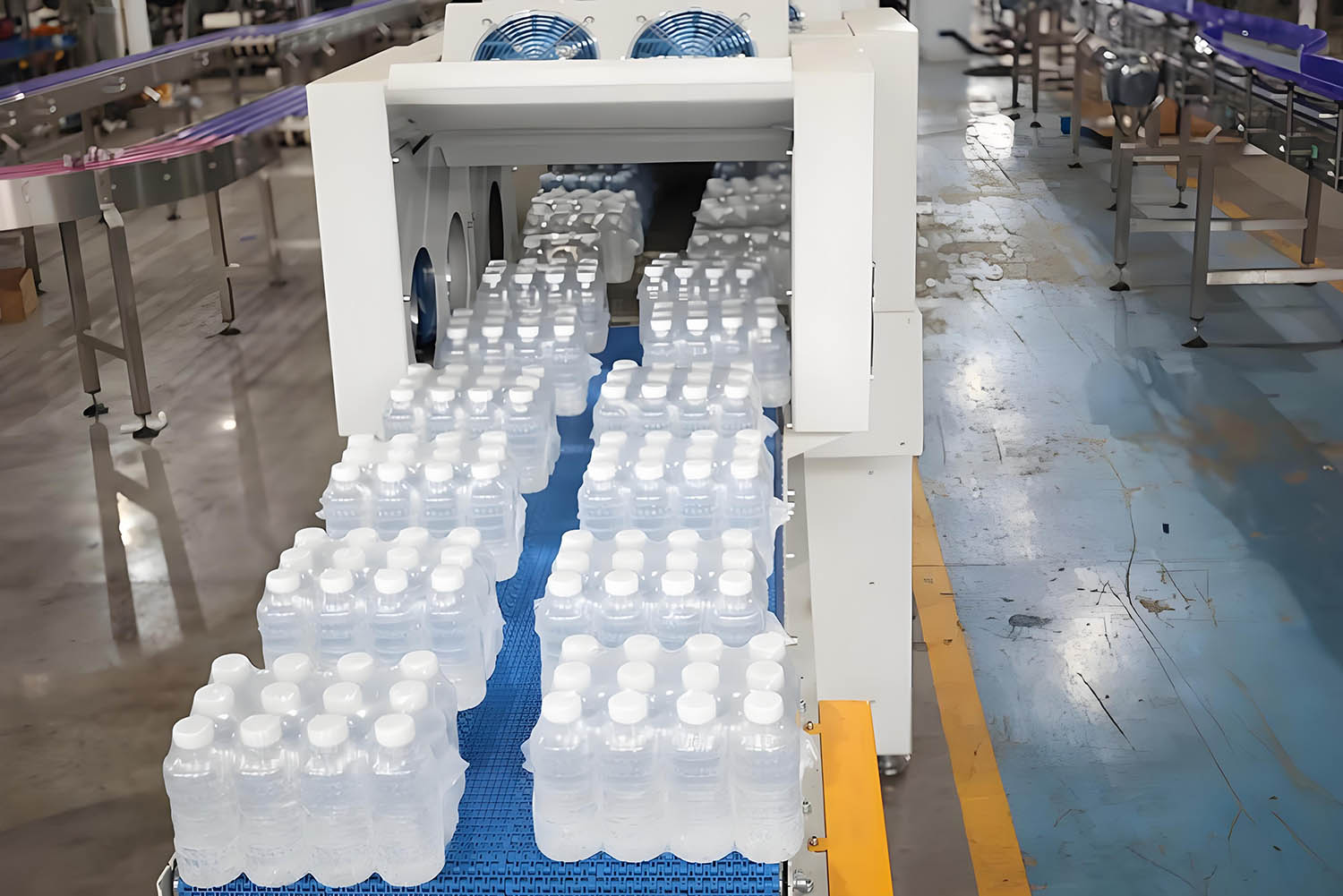

A packing machine automates the final stage of packaging, bundling products into trays, cartons, shrink-wrapped packs, or multipacks. Designed for precision and reliability, these systems are suitable for high-speed production environments and ensure damage-free handling during packaging.
More Wrap Packing Model And Speed Click
|
Model |
MIC 20P |
MIC 10B |
MIC 15B |
MIC 20B |
MIC 35B |
MIC |
|
Dimension for the whole unit |
|
L6500mm*W3200mm*H2100mm |
L11083mm*W1100mm*H2100mm |
L11840mm*W1100mm*H2100mm |
L12000mm*W1530mm*H2500mm |
L13490mm*W1100mm*H2100mm |
|
Thermal shrinkage passage dimension |
|
L1800mm*W650mm*H400mm |
L2400mm*W650mm*H450mm |
L2400mm*W650mm*H450mm |
L2500mm*W650mm*H450mm |
L2400mm*W650mm*H450mm |
|
Max package dimension |
|
L600mm*W400mm*H350mm |
L600mm*W400mm*H350mm |
L600mm*W400mm*H350mm |
|
L600mm*W400mm*H350mm |
|
Packaging speed |
10－15bag／min |
8-10Pcs/minute |
10-15Pcs/minute |
15Pcs/minute |
|
35Pcs/minute |
|
Transfer belt width |
|
304mm |
550mm |
550mm |
|
550mm |
|
Sealing and cutting time/temperature |
|
0.5-1.5s 140°C-160°C |
0.5-1.5s 180°C-260°C |
0.5-1.5s 180°C-260°C |
0.5-1.5s 160°C-260°C |
0.5-1.5s 180°C-260°C |
|
Operating power supply/power |
|
380V 24kw |
380V 30kw |
380V 30kw |
380v 40KW |
380V 30kw |
|
Operating air pressure |
|
0.6-0.8Mpa |
0.6-0.8Mpa |
0.6-0.8Mpa |
|
0.6-0.8Mpa |
|
Air Consumption |
|
|
0.6m3/min |
0.6m3/min |
0.1-0.12m3/min |
0.6m3/minute |
More Case Packing Model And Speed Click
|
Model |
MIC 10C |
MIC 15C |
MIC 35C |
|
Carton size |
L260-535* W260-420*H130-330 |
L260-535* W260-420*H130-330 |
350-450 |
|
Speed |
10 carton/min(according to the carton size） |
17 carton/min(according to the carton size) |
10-14 carton/min(according to the carton size) |
|
Dimension |
1950*1500*1450mm |
1950*1500*1450mm |
6285*2582*2115mm |
|
Power supply |
220V;50Hz |
220V;50Hz |
380V,three-phase/220V AC |
|
Table high |
Min 600mm; Max 720mm |
Min 600mm; Max 720mm |
|
|
Tape width |
45~72mm |
45~72mm |
|
|
weight |
300kg |
400kg |
3.5T |
|
Power |
3.5kw |
|
10KW |
|
Capacity |
500-600 case/hour |
|
600-840 case/hour |
|
Total weight |
1200kg |
|
|
|
Air consumption |
5-6kg/cm2 460L/min |
|
0.6~0.8MPa 1500 L/min |
Engineered for Productivity and Versatility
Our packing machines are meticulously engineered to adapt to your evolving production needs. Whether you're packing bottles, cans, or cartons, our systems deliver:
-
Flexible packaging formats including shrink film, trays, cartons, and bands
-
Adjustable conveyor layouts to integrate with existing lines
-
Low-maintenance design with easy access panels and self-diagnostics
-
Consistent sealing quality thanks to temperature-controlled shrink tunnels and precision pushers
These features ensure our solutions evolve alongside your business without requiring costly upgrades.
Suitable For:
-
-
PET/glass bottles (water, juice, beer)
-
Aluminum and steel cans
-
Jars, tubes, and pouches
-
Square or irregular-shaped containers
-
Fully packed consumer cartons
Our solutions cater to tray, carton, shrink-wrapped or banded formats—ideal for retail distribution or bulk handling.
Seamless Integration for Turnkey Solutions
As a one-stop provider, Zhangjiagang Mic Machinery integrates packing machines with:
-
Bottle/can unscramblers and conveyors
-
Shrink labeling or sleeve machines
-
Automatic date coding systems
-
Carton formers and case erectors
-
Palletizers or robotic pick-and-place modules
This turnkey integration optimizes line efficiency and reduces manual labor, delivering faster ROI and smoother operation.
Optimize Your Packaging Efficiency Today
Whether you're transitioning to new packaging formats or scaling production, Zhangjiagang Mic Machinery offers reliable packing machines that deliver enhanced performance, flexibility, and cost-effectiveness. Elevate your production line with integrated solutions that work better together.
Contact us now to request a quote, line layout, live demo, or free consultation!
