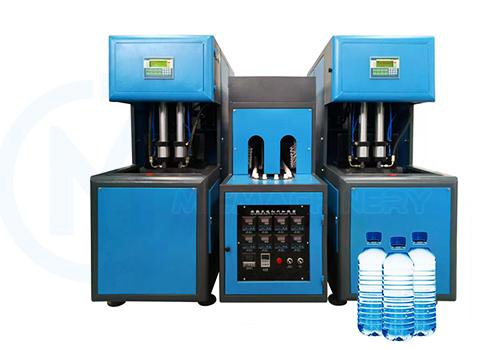

Semi Auto Bottle Blowing Machine – Cost-Effective & High-Performance Solution
Micmachinery specializes in designing and manufacturing high-quality bottle production equipment, including the semi automatic blow moulding machine. Engineered for precision, efficiency, and ease of operation, our machines provide an ideal solution for businesses looking to produce PET bottles with minimal investment. Whether you are a startup or an established manufacturer, our semi automatic pet blowing machine ensures consistent bottle quality and excellent production output.
|
Item |
MIC-8Y |
MIC-8Y1 |
MIC-FBA-102 |
MIC-9A |
MIC-12 |
|
Capacity Range |
0.1L-2L |
0.1-2L |
200-2500 ml |
100ML-6L |
10L-25L (3-5 Gallon) |
|
Theoretical Output (Based on 500ml) |
1800-2000PCS/H |
700-1000PCS/H |
1200-1600 Bottles/H |
600-800PCS/H (Based on 2.5L) |
60-90PCS/H (Based on 5 Gallon) |
|
Preform Length |
15mm-350mm |
15-350mm |
- |
15mm-400mm |
15mm-460mm |
|
Preform Inner Diameter |
φ5mm-38mm |
Φ5-38mm |
- |
Φ10mm-160mm |
φ5mm-200mm |
|
Max. Mold Size (L×W) |
350x380mm |
350×380mm |
- |
400x460mm |
420x500mm |
|
Max. Mold Thickness |
180mm |
180mm |
- |
300mm |
40mm |
|
Mold Opening Stroke |
160mm |
160mm |
- |
280mm |
380mm |
|
Main Machine Dimensions (L×W×H) |
160x60x161cm |
1600×600×1610mm |
L380cm×W180cm×H190cm |
175×67×186cm |
218×77×196cm |
|
Main Machine Weight |
500Kg |
500kg |
5000 KG |
600Kg |
1000Kg |
|
Heater Dimensions (L×W×H) |
187x63x145cm |
1870×630×1450mm |
- |
187×63×145cm |
237×68×165cm |
|
Heater Weight |
250Kg |
250kg |
- |
250Kg |
380Kg |
|
Power |
17.5kw |
17.5kw |
42 KW |
17.5kw |
40kw |
Features & Benefits of the Semi Auto Bottle Blowing Machine
1. Efficient Production with High Precision

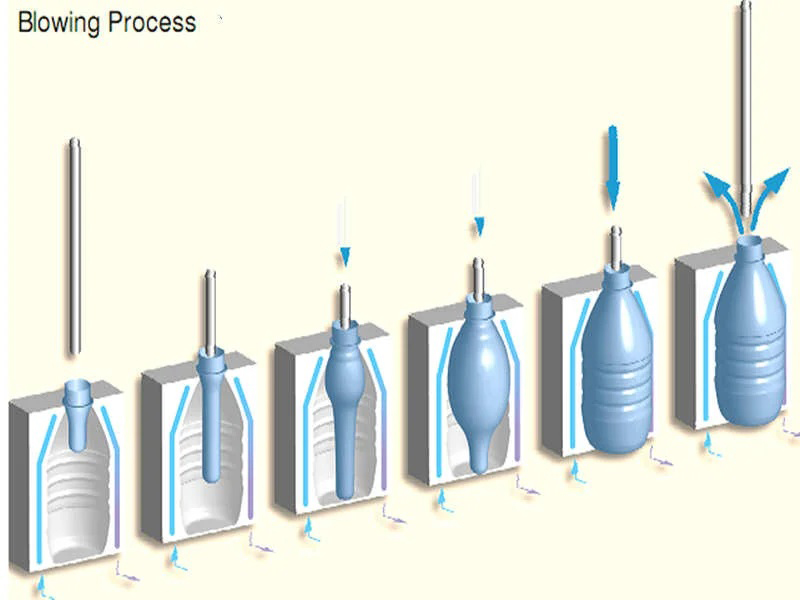

Our semi auto bottle blower is designed to produce PET bottles with uniform thickness and excellent clarity. The advanced heating and stretching system ensures that every bottle meets industry standards for durability and appearance.
2. User-Friendly & Cost-Effective Operation
Unlike fully automatic systems, the semi automatic pet bottle blowing machine requires manual loading of preforms, reducing initial investment while maintaining high efficiency. It is a practical choice for manufacturers looking for a budget-friendly solution.
3. Versatile Bottle Compatibility
Our semi automatic blowing machine can produce various bottle sizes and shapes, making it suitable for industries such as beverages, cosmetics, and pharmaceuticals. The flexibility of the machine allows for easy adjustments to accommodate different production needs.
4. Low Maintenance & High Durability
The semi automatic pet bottle making machine price is highly competitive, offering a long service life with minimal maintenance. Built with high-quality components, our machines are designed to withstand continuous operation while maintaining peak performance.
5. Multi-Cavity Design for Increased Output
For higher production efficiency, our 2 cavity semi automatic pet bottle blowing machine price option allows manufacturers to produce multiple bottles simultaneously. This increases productivity while keeping operational costs low.
Why Choose Micmachinery?
- Expert Manufacturing – As a professional producer of semi automatic blow molding machines, we ensure top-quality engineering and performance.
- Competitive Pricing – Our semi automatic pet blow molding machine provides the best value for businesses looking for an efficient, cost-effective solution.
- Comprehensive Support – We offer full technical support and after-sales service to ensure smooth operation of your semi automatic pet blow moulding machine.
Get the Best Semi Automatic Bottle Blowing Machine for Your Business
If you’re looking for a high-quality semi automatic pet blowing machine price, Micmachinery offers durable and efficient solutions tailored to your needs. Contact us today to learn more about our semi automatic pet stretch blow moulding machine and get the best semi automatic pet blow molding machine price for your production line.
