Circulating Bottled Water Production Line

Introduction to Advanced Bottling Technology

Zhangjiagang Mic Machinery is a globally recognized leader in designing and manufacturing high-efficiency Circulating Bottled Water Production Line systems. Specializing in turnkey solutions for 3-5 gallon (18.9L) bottled water production, our integrated systems combine cutting-edge automation, rigorous hygiene standards, and robust engineering to deliver exceptional performance for mineral water, purified water, and drinking water applications. As an industry pioneer in fully automatic water bottle filling machine technology, we serve clients across 60+ countries, providing scalable solutions for outputs ranging from 300 to 1,200 bottles per hour to meet diverse production needs.

Circulating Bottled Water Production Line – Process Description

The Circulating Bottled Water Production Line designed and manufactured by Zhangjiagang Mic Machinery ensures safe, hygienic, and efficient bottled water production. The line integrates advanced water purification, barrel cleaning, filling, capping, inspection, and packaging technologies, guaranteeing premium-quality drinking water for the market.

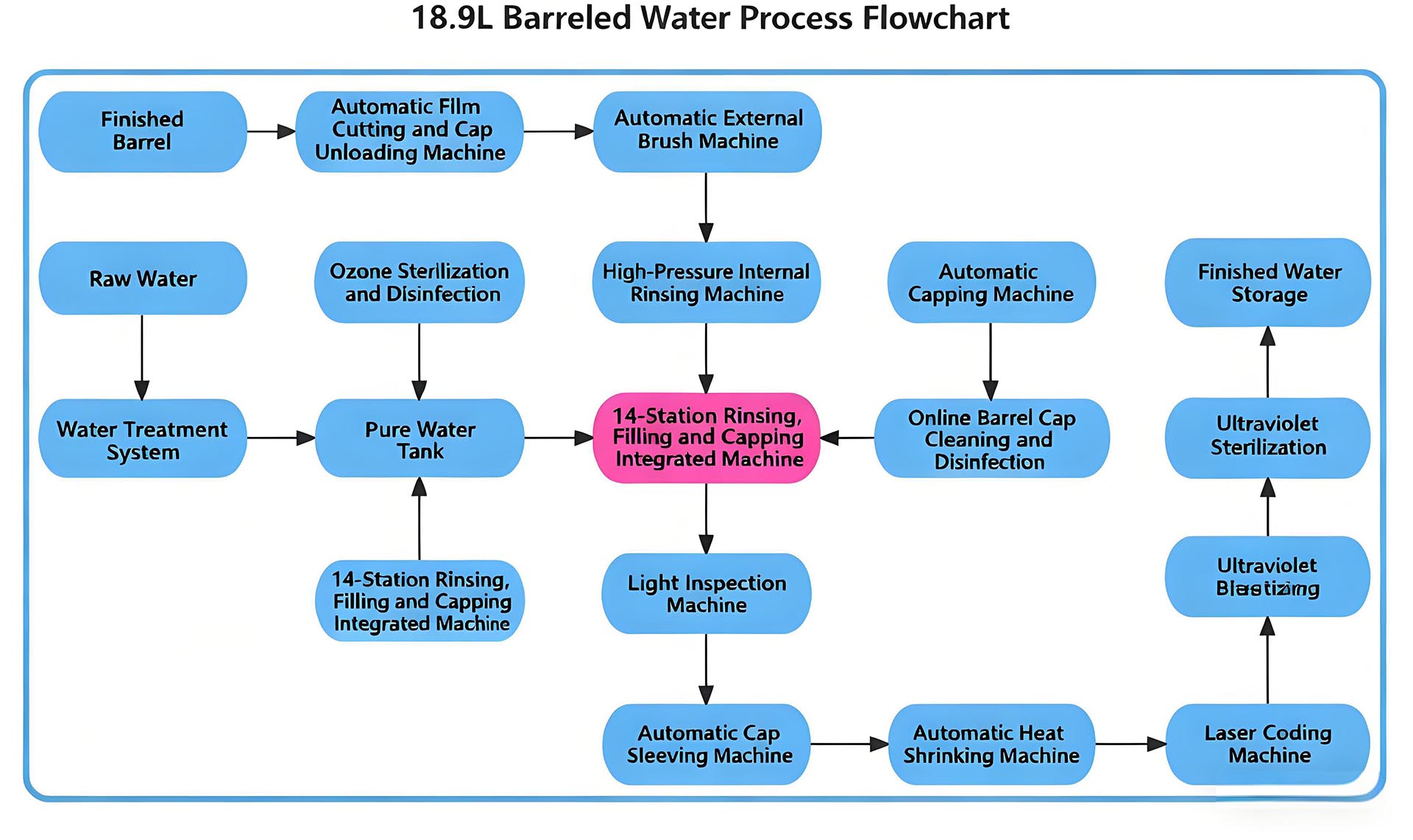

Production Process

1. Raw Water Treatment

• Raw water is first introduced into the water treatment system, where it undergoes multi-stage filtration and reverse osmosis purification.

• Disinfection is carried out using ozone sterilization and ultraviolet sterilization to eliminate bacteria and microorganisms.

• The treated water is stored in a pure water tank, ready for the filling process.

2. Empty Barrel Preparation

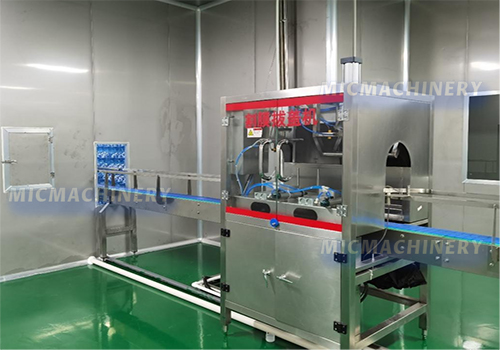

• Recycled barrels enter the line and are processed by an automatic film-removing and cap-pulling machine, removing old films and caps.

• Barrels are then cleaned externally by an automatic outer brushing machine, ensuring dirt and dust are eliminated.

3. Internal Cleaning & Sterilization

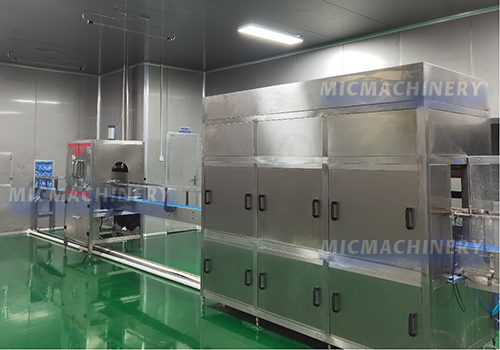

• Barrels pass through a high-pressure inner rinsing machine, which uses strong water jets and sterilizing solutions to remove residues.

• In the 14-station washing, filling, and capping monoblock, barrels undergo multiple cleaning cycles, including alkaline water rinse, circulating water rinse, ozone water rinse, and pure water rinse. This ensures thorough sterilization before filling.

4. Filling & Capping

• Cleaned barrels are precisely filled using PLC-controlled filling valves, ensuring accuracy and hygiene.

• Bottle caps are disinfected through the cap online cleaning and sterilization system.

• An automatic cap loader and capping unit then securely seals the barrels to prevent secondary contamination.

5. Inspection & Labeling

• Each filled barrel passes through a lamp inspection unit, allowing operators to detect impurities or defects.

• Barrels are then processed by an automatic capping and shrink-wrapping machine, applying tamper-proof seals for product safety.

6. Coding & Final Packaging

• A laser coding machine prints production dates and batch codes for full product traceability.

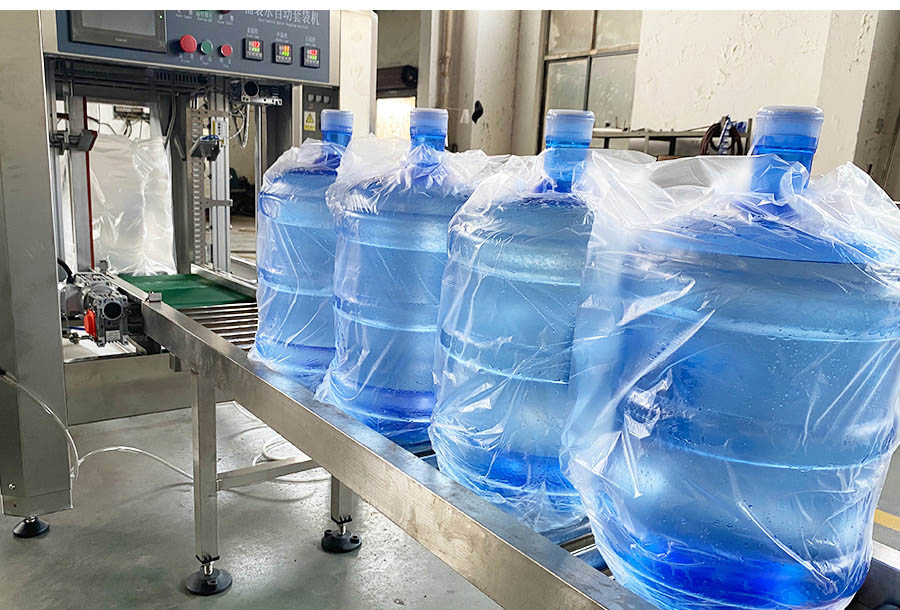

• Barrels are packaged using an automatic bagging machine for dust-proof protection.

• An automatic palletizer stacks the finished barrels neatly for storage and distribution.

7. Finished Product Storage

• The completed bottles of water are transferred to the finished product warehouse, ready for delivery to distributors and customers worldwide.

Product Highlights

• Complete Line Integration: Combines washing, filling, and capping in one unit to reduce labor costs.

• Advanced Purification: Water passes through ozone disinfection and UV sterilization before entering the mineral water bottle filling machine.

• Smart Automation: Features such as automatic decapping, cap sterilization, and automatic water bottle filling machine ensure product safety.

• Flexible Layouts: Customizable designs to fit customer factory spaces and production goals.

• Cost Efficiency: Provides an affordable water bottle filling machine price without compromising quality.

Comprehensive Production Line Process

Our Circulating Bottled Water Production Line integrates every critical stage of bottling operations, ensuring seamless efficiency and product safety:

1. Automatic Barrel Handling

   • Laser-guided destacking systems for empty barrel loading

   • Automated cap removal and membrane cutting technology

   • Internal/external brushing with high-pressure RO water rinsing (0.2µm filtration)

2. Ozone Sterilization & UV Treatment

   • Multi-stage ozone dissolution technology (0.3-0.5mg/L residual ozone)

   • UV-C light sterilization tunnels (254nm wavelength, 99.99% microbial reduction)

   • Stainless steel circulation pipelines with CIP/SIP capabilities

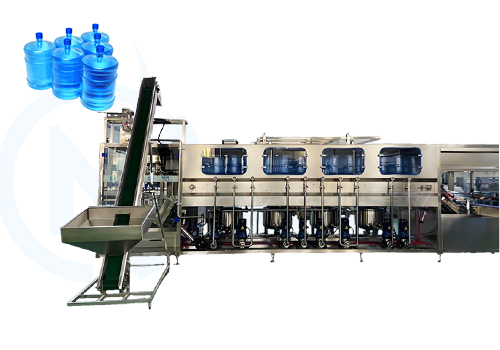

3. 14-Station Rotary Filling System

   • Precision volumetric filling (±1% accuracy) with nitrogen flushing

   • Automated cap placement and torque-controlled sealing

   • Food-grade 316L stainless steel contact surfaces

4. Quality Assurance & Packaging

   • Automated light inspection for fill-level verification

   • Labeling, sleeve application, and heat shrinking stations

   • Laser coding for batch tracing and expiration dates

   • Robotic palletizing with pattern optimization software

Why Choose Us?

Choosing Zhangjiagang Mic Machinery means choosing reliability, innovation, and long-term value for your business. As one of the leading solution providers in the beverage and water packaging industry, we specialize in designing and manufacturing Circulating Bottled Water Production Line systems that meet international standards.

1. Strong Manufacturing Experience – With decades of industry expertise, we have supplied advanced water bottle filling machine technology to customers in over 50 countries worldwide.

2. Comprehensive Product Range – From automatic water bottle filling machine models for small-scale plants to fully automatic water bottle filling machine lines for large enterprises, we cover every production demand.

3. Strict Quality Control – Every unit of our mineral water bottle filling machine and packaging system is tested under rigorous quality assurance procedures, ensuring reliability and durability.

4. Customization Capability – We design water filling bottle machine solutions according to your factory layout, production volume, and budget, offering flexible configurations.

5. Global Service Network – Our professional engineering team provides overseas installation, operator training, technical support, and lifetime service to guarantee smooth production.

6. Competitive Pricing Advantage – By manufacturing in China and exporting globally, we can provide the most reasonable water bottle filling machine price while maintaining premium quality.

Conclusion

The Circulating Bottled Water Production Line from Zhangjiagang Mic Machinery is more than just a production solution—it is a comprehensive system designed for efficiency, hygiene, and profitability. With advanced sterilization processes, precision filling, secure capping, and automated packaging, it helps businesses achieve international standards in bottled water manufacturing.

As a trusted cold aseptic filling system company and a leader in beverage machinery, we continue to innovate and expand our technology portfolio, ensuring our clients always stay ahead in a competitive market.

Whether you are starting a new water bottling plant or upgrading an existing facility, our fully automatic water bottle filling machine and integrated production solutions will bring long-term value to your investment.
