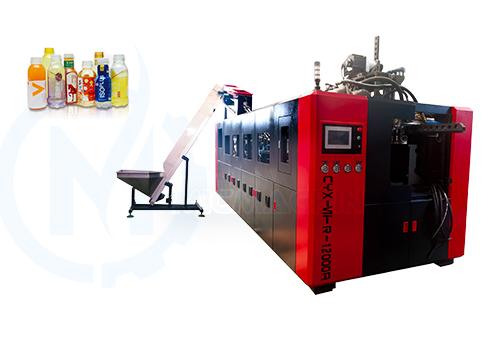

The MIC-R-12000A is a fully automatic rotary pet bottle blowing machine built for high-output beverage plants. Rated at 12,000 pcs/h (150ml, 28g preform, round bottle) across 7 cavities, it handles preforms up to 0.8L and cuts heating energy by 25–30% versus older linear machines. Below are the real specs, the factors that move the price, and how it integrates into a full PET line.
These are the factory-tested numbers for the MIC-R-12000A pet bottle blowing machine. The 12,000 pcs/h figure is rated under defined conditions (150ml bottle, 28g preform, round shape); real output shifts with bottle volume, wall weight, and ambient air supply.
|
Item |
Value |
|
Model |
MIC-VII-R-12000A |
|
Number of cavities |
7 |
|
Cavity pitch |
80 mm |
|
Theoretical output |
12,000 pcs/h (150ml, 28g preform, round bottle) |
|
Max bottle volume |
0.8 L |
|
Max bottle inner diameter |
75 mm |
|
Max bottle height |
270 mm |
|
Preform neck (inner diameter) |
20–30 mm |
|
Max preform height |
150 mm |
|
Number of preform holders |
148 pcs |
|
Heating pitch |
50 mm (dense infrared arrangement) |
|
Heating ovens / infrared lamps |
4 ovens / 32 lamps |
|
Max heating power |
48 kW |
|
Specified power consumption |
75 kW |
|
Voltage |
380V, 50/60 Hz |
|
Main machine dimensions (L×W×H) |
5300 × 2200 × 2550 mm |
|
Elevator dimensions (L×W×H) |
3100 × 1500 × 3500 mm |
|
Weight |
8.5 tons |
When buyers compare a global pet bottle blowing machine for export, three numbers decide the purchase: rated output (pcs/h), kWh per thousand bottles, and mold-change time. The R-12000A is engineered around those three.
The preform elevator feeds straight into a rotating heating tunnel. Preforms don't flip between loading and heating, which shortens the footprint and removes a common jam point on linear machines.
Heating pitch is 50mm between preforms. Infrared lamps sit closer together, so less empty air gets heated. On the factory line, heating energy dropped 25–30% versus a 90mm-pitch conventional oven.

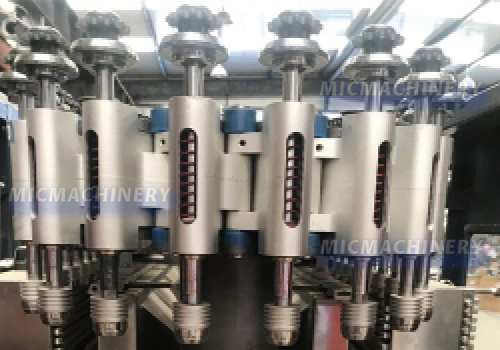

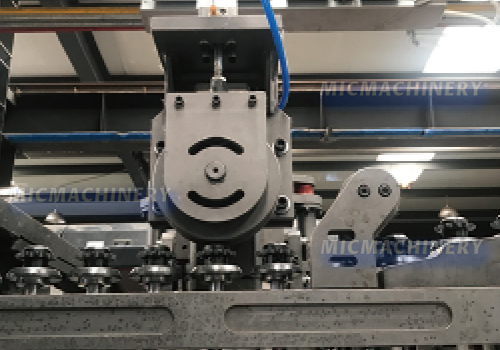

The transfer arm is servo-controlled rather than pneumatic. It adjusts pitch on the fly between heating and blowing stations, which keeps positioning accurate at 12,000 pcs/h. Mold open/close and bottom mold also run on a servo linkage.
A dedicated high-speed valve set handles blow air. Faster valve response means each cycle spends less time on the air-in step — that is where the extra output over older 6-cavity machines (around 10,000 pcs/h) comes from.
A blow molding machine is an advanced industrial device designed for the mass production of hollow plastic products, such as bottles, containers, and other packaging solutions. It utilizes the blow molding process, which involves inflating heated plastic parisons or preforms into desired shapes within a mold cavity.
The machine comprises several critical components, including a heating system, mold clamping unit, stretch rod, and high-pressure air system. The process begins with the heating of plastic preforms to a precise temperature, ensuring optimal plasticity. These preforms are then transferred into the mold cavity, where a stretch rod extends to elongate the preform vertically. Simultaneously, high-pressure air is injected, expanding the preform horizontally to conform to the mold's contours. After cooling and solidification, the mold opens, and the finished product is ejected.
The R-12000A covers up to 0.8L and neck finishes from 20mm to 30mm inner diameter — the range that matches most non-returnable PET formats on a 6,000–12,000 pcs/h line.
500ml and 1.5L round water bottles are the machine's home turf. Lightweight 10–12g preforms blow quickly; the 12,000 pcs/h rating feeds a 6,000–9,000 BPH filler with buffer accumulation.
Juice bottles need taller bodies and contoured shapes. The 270mm max height and 75mm max diameter cover most 330ml and 500ml still-juice formats; custom ergonomic molds are available.
CSD bottles need heavier preforms and higher blow pressure. The R-12000A runs them, but expect real output to fall from 12,000 pcs/h to roughly 8,000–10,000 pcs/h depending on bottle weight — confirm with the factory before sizing the filler.
A complete PET bottling line doesn't start and stop at the blow molder. The R-12000A pairs with the following equipment from the same supply base, so commissioning and spare-parts support stay under one supplier.
· PET bottle filling capping machine — rinsing, filling, and capping monoblock for water or juice, sized to match the 12,000 pcs/h blow molder with an accumulator table in between. View filling capping machine →
· Carbonated drink mixing machine — CO2 injection and sugar syrup dosing for sparkling lines, where blow molder output is derated for heavier CSD preforms.
· Round bottle labeling machine — self-adhesive or hot-melt label application after the filler, sized for 12,000 pcs/h round PET bottles. View round bottle labeler →
· Case packing machine — automatic case erector and packer for shrink-wrap or tray packs downstream of the labeler. View case packing machine →
· Palletizer — automatic layer palletizer for finished cases, linked into the warehouse conveyor. View palletizer →
When you compare quotes on a pet bottle blowing machine, the price gap often hides in the documentation, not in the hardware. Ask for the following before you order:
· CE certification for the EU market, covering machinery and low-voltage directives.
· ISO 9001 quality management certification for the manufacturing plant.
· Food-contact safety documentation for parts touching preforms and finished bottles (aluminum mold surfaces, conveyor belts, air filters).
· On-site factory audit — reputable suppliers welcome video calls or in-person visits. Ask to see a running R-12000A blowing your own bottle sample, not a showroom unit.
· Warranty and spare-parts list — standard warranty terms, urgent-parts response time, and a recommended spare kit (seals, lamps, valve sets) quoted at order time.
Send us your bottle drawing (volume, diameter, height, neck finish), target hourly output, and destination port. We'll come back with a fixed price that includes the mold set, the matched high-pressure air compressor package, and CE documentation — so the number on the quote is the number on the container.
Email: sales@micmachinery.com | WhatsApp / WeChat: +86-130-8399-1987
1. What is the output of the MIC-R-12000A pet bottle blowing machine?
Theoretical output is 12,000 pcs/h, rated on a 150ml round bottle with a 28g preform. Heavier preforms (CSD, hot-fill), square or contoured shapes, and taller bottles pull real output down — typically to 8,000–10,000 pcs/h for CSD. Send your bottle drawing for a realistic estimate.
2. What bottle sizes can the MIC-R-12000A blow?
Up to 0.8L volume, 75mm inner diameter, and 270mm height. Preform neck inner diameter range is 20–30mm and preform height up to 150mm. Outside this envelope, the factory quotes custom mold and frame changes.
3. How much does this pet bottle blowing machine cost?
Price depends on cavity count, bottle size range, mold set, included compressor package, and destination certifications. Budget in the mid-range for a 7-cavity, 12,000 pcs/h fully automatic rotary unit; the compressor, chiller, and air dryer are usually a separate line item.
4. Can this machine connect to my existing filling line?
Yes, through an air conveyor or accumulation table between blow molder and filler. Tell us your filler speed, bottle size, and current conveyor height, and we'll specify the connecting section.
5. Do you supply the whole line, or just the blow molder?
We supply the full PET line: blow molder, filling capping monoblock, CSD mixing, labeling, case packing, and palletizer. One supplier means fewer commissioning disputes.
6. What about a pet granulation machine for recycling waste?
We can quote a separate PET granulation line for internal waste. Food-contact bottle preforms usually require virgin resin; regrind is more commonly routed to industrial or fiber-grade applications.
7. How long is the warranty?
Warranty and spare-parts terms are stated on the quote. Ask for the urgent-parts response-time commitment and the recommended spare-parts list before you sign.
MIC Machinery is a China-based manufacturer of PET blow molding machines and complete beverage bottling lines, with CE- and ISO 9001-certified units exported to 60+ countries. The MIC-R-12000A is the company's high-output rotary platform for water, juice, and CSD bottles at up to 12,000 pcs/h.
MIC Machine | sales@micmachinery.com | +86-130-8399-1987 (WhatsApp / WeChat)| Technical parameters: | |
| Model&Name | MIC-VII-R-12000A |
| Overall Dimensions(mm) Length*Width*Height(mm) |
Main machine: 5300*2200*2550
Elevator: 3100*1500*3500
|
| Weight | 8.5(ton) |
| No. of Cavities | 7(cav.) |
| Cavity Pitch | 80(mm) |
| Max. Capacity | 0.8(litre) |
| Heating Pitch | 50(mm) |
| No. of Perform Holders | 148(PCS) |
| Preform Neck (inner dia.) | 20-30(mm) |
| Preform Height (max) | 150(mm) |
| Bottle Inner Diameter (max) | 75(mm) |
| Bottle Height (max) | 270(mm) |
| No. of Heating Ovens | 4(unit) |
| No. of Infrared Lamps | 32(pcs) |
| Max. Heating Power | 48(kw) |
| Specified Power Consumption | 75(kw) |
| Voltage | 380V(50/60hz) |
|
Theoretical Production
(Based on 150ml; Preform: 28g; Round Bottle)
|
12000(pcs/h) |
