Combiblock Blowing Filling Capping Machine

All About Blowing Filling Capping Machine: Working, Benefits & Pricing

In today’s fast-paced beverage industry, efficiency, hygiene, and precision are critical. Traditional bottling systems often involve multiple separate machines—one for blowing, another for filling, and a third for capping. However, with the rise of integrated technology, the blowing filling capping machine has revolutionized how manufacturers produce bottled beverages. This all-in-one solution streamlines the production process, reduces contamination risks, and saves valuable floor space.

For producers in water, juice, tea, carbonated drinks, adopting a blowing-filling-capping machine is no longer optional—it’s a competitive necessity. Especially when scalability and energy efficiency are key, systems like the combi-block blowing filling capping machine offer unmatched flexibility and performance.

What is the Working Principle of Blowing Filling Capping Machine?

The blowing filling capping machine operates on a seamless, three-stage principle:

1. Blow Molding: It begins with PET preforms fed into a heating module, where infrared heaters bring them to the optimal temperature. These preforms are then transferred into blowing molds and inflated using high-pressure air to form bottle shapes.

2. Filling: The freshly blown bottles are transferred via a robotic arm to the filling station. Since the bottle is still warm and uncontaminated, it is ideal for direct contact with liquid products, ensuring hygiene. Filling is usually controlled by flow meters or weight sensors for precision.

3. Capping: Once filled, the bottles are moved to the capping turret, where caps are automatically placed and sealed tightly.

This fully integrated process is the core of the blowing-filling-capping machine, eliminating intermediate conveying systems and potential contamination risks.

How Does Blowing Filling Capping Work?

The blowing filling capping 3 in 1 machine integrates three systems into one rotary unit:

• Bottle Blowing Unit: Receives PET preforms and forms bottles using high-pressure air and custom molds.

• Liquid Filling Unit: Applies accurate filling based on the specific beverage or liquid type (still water, juice, milk, etc.).

• Cap Sealing Unit: Uses torque control to apply and seal caps consistently.

These steps are orchestrated by an advanced control system with real-time monitoring to ensure speed, precision, and safety.

In models like the combiblock blowing filling capping machine, servo motors, pneumatic drives, and hygienic contact materials ensure high performance with minimal downtime.

What are the Advantages of Blowing Filling Capping Machine?

The blowing-filling-capping machine offers numerous advantages over traditional bottling setups:

• Compact Footprint: Combines three machines into one, saving valuable floor space.

• Improved Hygiene: Since the bottle is never exposed to open air after being formed, the risk of contamination is significantly reduced.

• Energy Efficiency: Advanced machines use optimized heating and air recovery systems to reduce energy consumption.

• Faster Changeovers: Integrated design allows quicker transitions between bottle sizes and formats.

• Labor Reduction: Fewer operators are needed, lowering long-term operating costs.

• Precision and Speed: The automatic blowing filling capping machine ensures consistent quality at high speeds—ideal for mass production.

Manufacturers looking to upgrade efficiency and quality often opt for a combi-block blowing filling capping machine for its automation and reduced TCO (Total Cost of Ownership).

Blowing Filling Capping Machine Technical Specifications

Number of Working Positions	Blowing 8, Filling 32, Capping 10
Rated Capacity	18000BPH (600ml)
Filling Method	Gravity Filling
Applicable Bottle	PET bottle
	Diameter of bottle: Φ50～Φ92mm
	Height of bottle: 150-320mm
Applicable Cap	Normal Standard Cap
Installed Power	200KW

How Much Does a Blowing Filling Capping Machine Cost?

The cost of an automatic blowing filling capping machine varies based on production capacity, bottle size range, number of cavities in the blow molding unit, and other customization options. Entry-level models for small-scale operations can start around $80,000–$120,000, while high-speed, fully automated systems for large factories may exceed $500,000.

A more advanced blowing-filling-capping combi machine with aseptic or hot-fill capabilities can cost even more, depending on the specifications and add-ons like CIP (Clean-in-Place) systems, cap sterilizers, and digital monitoring features.

What Products Can Be Bottled with This System?

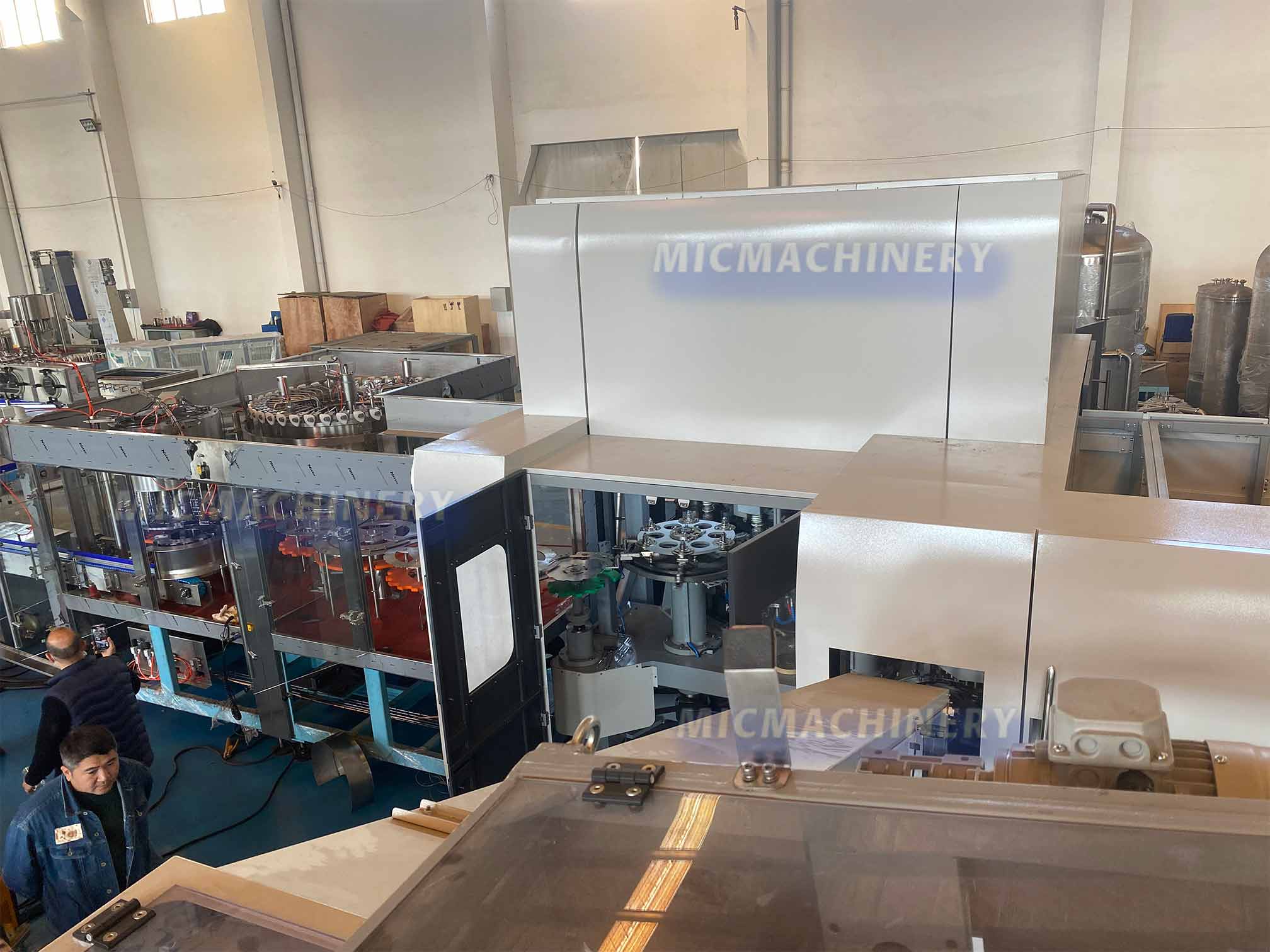

combi-block blowing filling capping machine

The blowing filling capping machine is commonly used for still water, carbonated soft drinks, flavored water, milk, tea, juice, and even certain edible oils. Its flexibility allows producers to bottle a wide range of liquid products using the same production line, provided proper sterilization and cleaning protocols are followed.

A blowing-filling-capping machine designed for high acid or hot-fill applications will require additional thermal and microbiological safety features. The modular design of the combi-block blowing filling capping machine makes these adaptations straightforward.

Is the Machine Suitable for Different Bottle Sizes?

Yes, most combiblock blowing filling capping machines support a variety of PET bottle sizes, typically ranging from 200ml to 2 liters or more. Modern systems feature quick-change parts and adjustable settings to accommodate different bottle diameters and heights. This makes the equipment ideal for manufacturers targeting multiple SKUs or launching seasonal products.

Maintenance and Cleaning

Routine maintenance involves checking the blow mold cavity, cleaning the heating lamps, and inspecting filling valves and capping heads. The best blowing filling capping 3 in 1 machines include automated lubrication systems and remote diagnostics, helping operators reduce downtime and maximize uptime. For hygiene-sensitive applications, CIP and SIP (Sterilize-in-Place) modules can be integrated into the system.

Energy Efficiency and Sustainability

Today’s PET bottle blowing filling capping machines are designed with energy recovery systems, variable-frequency drives (VFDs), and lightweight preform compatibility. These features help reduce environmental impact while lowering production costs. Additionally, using a blowing-filling-capping combi machine eliminates the need for air conveyors and multiple transfer points, further enhancing sustainability.

Conclusion

The blowing filling capping machine represents a giant leap in efficiency, hygiene, and automation for bottling operations. With its compact design, integrated operation, and cost-saving advantages, it is increasingly the preferred choice for beverage, dairy, and chemical industries.

Whether you're scaling up production or modernizing an outdated line, a blowing-filling-capping machine—especially a combiblock blowing filling capping machine—offers the flexibility, speed, and quality your business needs to compete in today’s fast-paced market.
