Laser Coding Machine


In today’s fast-paced manufacturing world, the demand for high-efficiency, low-maintenance, and environmentally friendly coding technology is at an all-time high. At Zhangjiagang Mic Machinery, we offer a full range of industrial laser coding machines that deliver unparalleled speed, precision, and reliability across industries including food, beverage, pharmaceuticals, cosmetics, and more.


What Is a Laser Coding Machine?

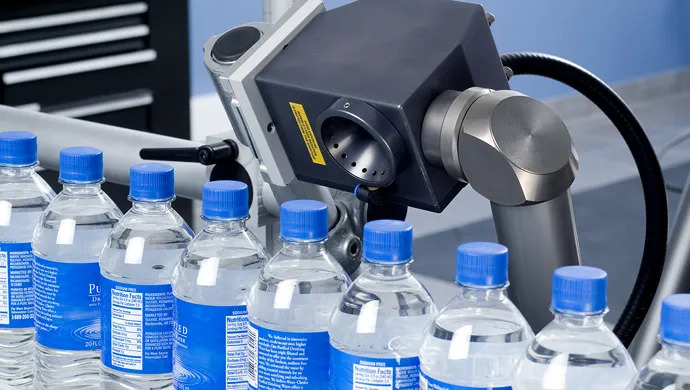

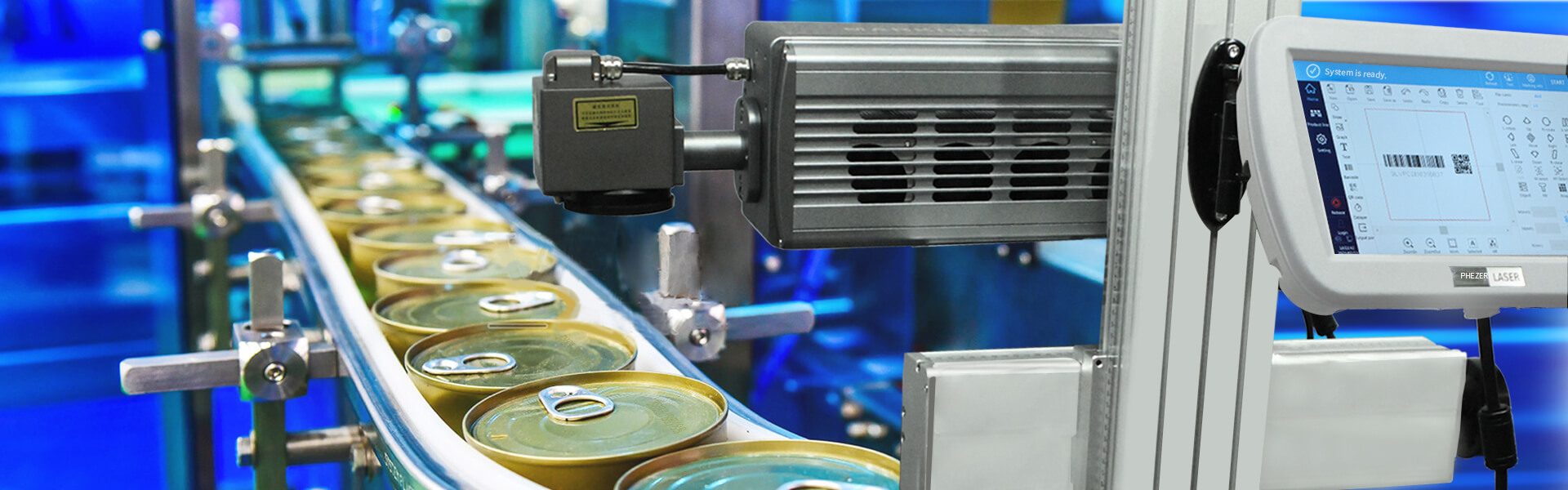

A laser coding machine uses concentrated laser beams to create permanent marks on product surfaces without physical contact. Unlike inkjet printers, which require consumables like ink and solvents, laser batch coding machines use heat to engrave text, barcodes, logos, and variable data onto substrates like paperboard, plastic, glass, metals, and flexible packaging.

These machines are known for creating high-contrast, tamper-proof markings that ensure compliance and traceability throughout the supply chain.

Advantages of Laser Coding Technology


Our machines — including UV laser coding machines, fiber laser coding machines, and CO₂ laser coding machines — offer distinct advantages:

• High-speed precision with consistent clarity even at 200 m/min.
Zero consumables, reducing operating costs significantly.
Eco-friendly performance, eliminating ink waste and chemical residues.
Low maintenance, thanks to air-cooled or water-cooled systems.
Capable of printing expiry dates, MRP codes, and batch numbers.

Whether you're marking HDPE bottles or foil packaging, Zhangjiagang Mic Machinery offers the right laser coding printer for your production line.

Versatility Across Applications


Our machines are used in various sectors and product types, such as:

• Food and beverage packaging (laser MRP printing machine, laser date printing machine)
Pharmaceuticals (batch traceability with laser batch coding machines)
Cosmetics and personal care products (laser barcoding machines)
Industrial packaging (laser date coders for cables, metals, and plastic parts)



Models Tailored for Every Need


We provide multiple types of machines based on different laser technologies:

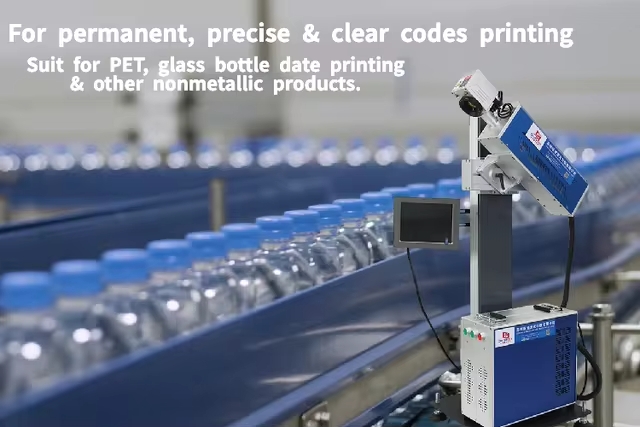

1. CO₂ Laser Coding Machine

Ideal for non-metallic surfaces like paper, cardboard, glass, and plastic films. This model is perfect for food-grade packaging lines requiring consistent laser date coding and laser expiry date printing performance.

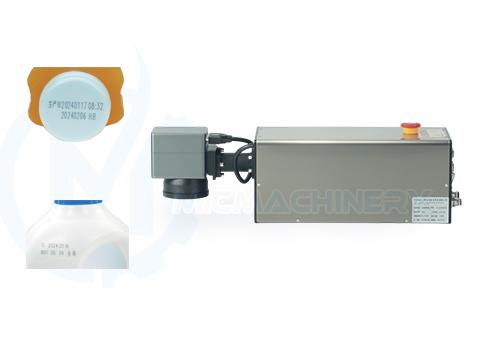

2. Fiber Laser Coding Machine

Recommended for hard plastics and metal surfaces, offering a more precise and cleaner alternative to inkjet printing. Commonly used as a batch code laser printer for electronic components, tools, and automotive parts.

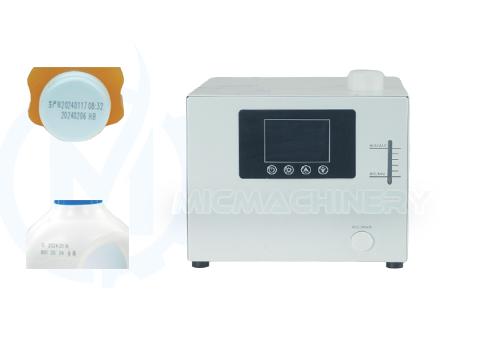

3. UV Laser Coding Machine

The ultimate solution for sensitive materials, like flexible films and soft plastics. UV models deliver ultra-fine markings without damaging the product surface, making it ideal for laser date code printers in cosmetics, medicine, and high-end packaging.


Model CO₂ Laser Coding Machine
Fiber Laser Coding Machine Water-cooled UV Laser Coding Machine Air-cooled UV Laser Coding Machine
Application Industries
Cardboard boxes, flexible packaging films, plastic bottles, glass bottles, etc.
Flexible packaging films, PP, metals, etc.
Flexible packaging films, HDPE, LDPE, PP, metals, etc.
Flexible packaging films, HDPE, LDPE, PP, metals, etc.
Marking Mode

Flying Marking: 200 meters per minute

Static Marking: Can mark multiple products simultaneously

Flying Marking: 150 meters/min, 800 characters/second

Static Marking: Can mark multiple products simultaneously

Flying Marking: 150 meters/min

Static Marking: Can mark multiple products simultaneously

Flying Marking: 150 meters/min

Static Marking: Can mark multiple products simultaneously

Marking Laser

Type: CO2 laser generator

Wavelength: 10.6μm (standard), 9.3μm (optional), 10.2μm (optional)

Laser Output: 30W

Type: Fiber laser generator

Wavelength: 1064nm

Laser Output: 20W/30W

Type: UV laser generator

Wavelength: 355 nm

Laser Output: 5W


Type: UV laser generator

Wavelength: 355 nm

Laser Output: 5W



Marking Range/Working Distance (mm)
70x70/100, 90x90/130, 110x110/150, 140x140/200, 175x175/250, 210x210/300, 250x250/355, 300x300/435
110x110/200, 150x150/260, 175x175/277, 300x300/473
110x110/191, 150x150/245, 175x175/288, 220x220/373, 250x250/395
110×110/191, 150×150/245, 175×175/288, 220×220/373, 250×250/395
Character Types

Fonts: Single-line, double-line, dot matrix

Barcodes: Code39, Code25, EAN-13, Code128, etc.

QR Codes: PDF147, QRCODE, DATAMATRIX

Images: DXF/PLT vector graphic input/output

Fonts: 26 fonts, user-customizable font types

Barcodes: Barcodes, QR codes

Variables: Serial numbers, text, date, time, counters, shift codes

Images: BMP/DXF/PLT/HPGL/JPEG

Fonts: Single-line, double-line, dot matrix

Barcodes: Code39, Code25, EAN-13, Code128, etc.

QR Codes: PDF147, QRCODE, DATAMATRIX

Images: DXF/PLT vector graphic input/output

Fonts: 26 fonts, user-customizable font types

Marks/Symbols: Dots, Lines, Rectangles, Circles

Readable Codes: Barcodes, QR Codes

Variables: Serial Numbers, Text, Date, Time, Counters, Shift Codes

Images: BMP/DXF/PLT/HPGL/JPEG

Key Features


• XY-axis vector scanning for simultaneous dual-axis marking.
Support for flying and static modes.
User-friendly 10-inch Linux-based touchscreen.
Variable data support: time, date, batch, QR code, barcode, and MRP.
Multiple I/O ports and communication protocols (USB, Ethernet, RS232).
IP54 or optional IP65 protection for industrial-grade environments.



Competitive Laser Coding Machine Prices


At Zhangjiagang Mic Machinery, we believe in value through innovation. Our laser coding machine prices are competitive, and our machines are engineered for long-term durability. Whether you're looking for a reliable laser batch coding machine price or a cost-effective laser date coding machine for small-batch production, we have a solution that matches your budget and scale.

Why Choose Zhangjiagang Mic Machinery?


• Decades of experience in designing industrial coding and packaging systems.
Dedicated R&D for laser solutions, from laser batch printing machines to MRP laser printing machines.
CE-certified, robust, and globally compatible coding systems.
Comprehensive after-sales support and customization options.

We also serve global clients with our China laser coding machine production hub, ensuring top-quality export-grade products delivered worldwide.
Conclusion


Whether you need a laser date coder for pharmaceuticals, a laser barcoding machine for logistics, or a UV laser coding machine for delicate packaging, Zhangjiagang Mic Machinery provides the complete coding solution you can trust. Our machines are engineered to handle every industrial marking requirement while ensuring traceability, compliance, and long-term reliability.


For technical specs, demo videos, or pricing inquiries, contact us today to find the ideal laser coding machine for your business.
