What Is a Laser Coding Machine?
How Does a Laser Coding Machine Work?
Types of Laser Coding Machines

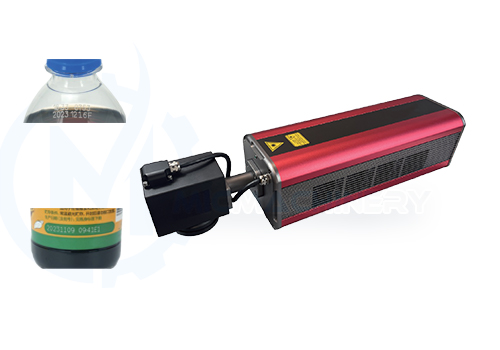

1. CO2 Laser Coding Machine
Ideal for organic materials like cardboard, paper, wood, glass, and flexible packaging.

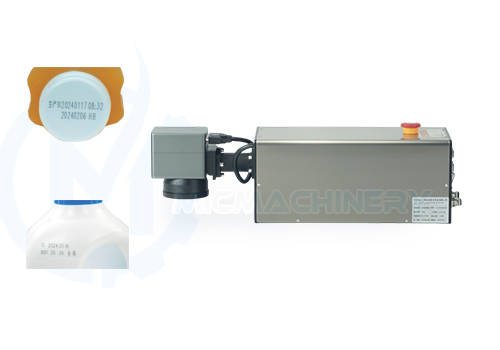

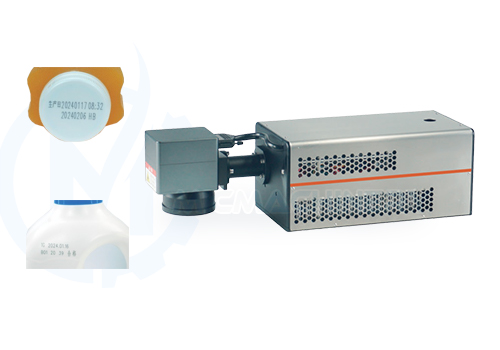

2. Fiber Laser Coding Machine
Best suited for metals, hard plastics (PE, PP), and electronic components.

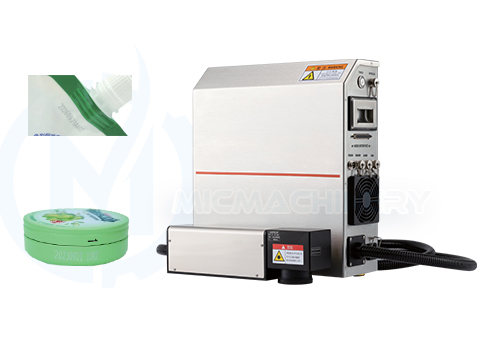

3. UV Laser Coding Machine
Used for delicate materials like films, plastics, medical packaging, and cosmetic containers. Provides ultra-fine markings with minimal heat impact.
Model |
CO₂ Laser Coding Machine |
Fiber Laser Coding Machine | Water-cooled UV Laser Coding Machine | Air-cooled UV Laser Coding Machine |
Application Industries |
Cardboard boxes, flexible packaging films, plastic bottles, glass bottles, etc. |
Flexible packaging films, PP, metals, etc. |
Flexible packaging films, HDPE, LDPE, PP, metals, etc. |
Flexible packaging films, HDPE, LDPE, PP, metals, etc. |
Marking Mode |
Flying Marking: 200 meters per minute Static Marking: Can mark multiple products simultaneously |
Flying Marking: 150 meters/min, 800 characters/second
Static Marking: Can mark multiple products simultaneously
|
Flying Marking: 150 meters/min Static Marking: Can mark multiple products simultaneously |
Flying Marking: 150 meters/min Static Marking: Can mark multiple products simultaneously |
Marking Laser |
Type: CO2 laser generator Wavelength: 10.6μm (standard), 9.3μm (optional), 10.2μm (optional) Laser Output: 30W |
Type: Fiber laser generator Wavelength: 1064nm Laser Output: 20W/30W |
Type: UV laser generator Wavelength: 355 nm Laser Output: 5W |
Type: UV laser generator Wavelength: 355 nm Laser Output: 5W
|
Marking Range/Working Distance (mm) |
70x70/100, 90x90/130, 110x110/150, 140x140/200, 175x175/250, 210x210/300, 250x250/355, 300x300/435 |
110x110/200, 150x150/260, 175x175/277, 300x300/473 |
110x110/191, 150x150/245, 175x175/288, 220x220/373, 250x250/395 |
110×110/191, 150×150/245, 175×175/288, 220×220/373, 250×250/395 |
Character Types |
Fonts: Single-line, double-line, dot matrix Barcodes: Code39, Code25, EAN-13, Code128, etc. QR Codes: PDF147, QRCODE, DATAMATRIX Images: DXF/PLT vector graphic input/output |
Fonts: 26 fonts, user-customizable font types Barcodes: Barcodes, QR codes Variables: Serial numbers, text, date, time, counters, shift codes Images: BMP/DXF/PLT/HPGL/JPEG |
Fonts: Single-line, double-line, dot matrix Barcodes: Code39, Code25, EAN-13, Code128, etc. QR Codes: PDF147, QRCODE, DATAMATRIX Images: DXF/PLT vector graphic input/output |
Fonts: 26 fonts, user-customizable font types Marks/Symbols: Dots, Lines, Rectangles, Circles Readable Codes: Barcodes, QR Codes Variables: Serial Numbers, Text, Date, Time, Counters, Shift Codes Images: BMP/DXF/PLT/HPGL/JPEG |
Benefits of Using a Laser Coding Machine
FAQ About Laser Coding Machines
Q: What is the difference between a laser coding machine and an inkjet printer?
A: Laser coding machines use light to mark surfaces permanently without touching them. Inkjet printers use ink, which can fade or smear over time. Laser coding printers require less maintenance and no consumables.
Q: Can a laser batch coding machine print on plastic and metal?
A: Yes, depending on the type of laser. A fiber laser coding machine works well on metals and hard plastics. A UV laser coding machine is perfect for thin films and soft plastics like PP and PE.
Q: What is the typical laser batch coding machine price?
A: The laser batch coding machine price can range from $3,000 to $15,000+ depending on laser type, power, and automation level. China laser coding machines offer competitive pricing and robust quality.
Q: What kind of codes can a laser date coder mark?
A: A laser date coder can print:
• Expiry datesQ: Are laser expiry date printing machines compliant with packaging regulations?
A: Yes. A laser expiry date printing machine meets regulatory standards in industries like food and pharma. It provides clear, tamper-proof expiration dates that ensure consumer safety and traceability.
Q: Is a laser MRP printing machine suitable for retail packaging?
Q: Can one machine do batch, date, and barcode printing?
Application Industries
Laser coding machines are widely used in:
Choosing the Right Laser Coding Machine
Here are a few tips to help you choose the best machine:
Conclusion
