MIC 24-6 Canning Machine Drinks(4000-8000CPH)

MIC 24-6 Canning Machine Drinks(4000-8000CPH)
MIC 24-6 Canning Machine Drinks(4000-8000CPH)
MIC 24-6 Canning Machine Drinks(4000-8000CPH)
MIC 24-6 Canning Machine Drinks(4000-8000CPH)
Video
  • Introduction
  • Parameters
  • Setup List
  • Client Views

Mic 24-6 canning machines drinks adopts isobaric pressure filling system which is applicable for beer, carbonated beverage, soft drink, hard cider, soda water, sparkling water and other canned drinks (Cold filling temperature at 0-4 degrees Celsius) If you also want to use the same machine to fill non-carbonated drinks is available. Through change the counter pressure filling valves to normal pressure filling valves then it will be suitable for filling non-carbonated beverages such as energy drink, fruit juice, cold brew coffee, herbal tea and so on.


Machine features:

1. Mic 24-6 canning machines drinks is in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit. Filling and seaming part is the overall designed, in order to ensure that both the absolute synchronization and coordination.

2. The machine adopts PLC, frequency converter, human machine interface controlling system, having the advanced controlling technologies, such as frequency control, no can no filling and so on.

3. Isobaric filling system, controlled by pressure, accuracy is +/-1%,liquid level difference is not more than 2mm. (requires steady pressure and temperature at 0-4degrees Celsius).

4. Can seaming machine is qualified for Chinese seaming standard, and no air leakage at all.

5. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can equip CIP system according to the customers’ request. It is the preferred equipment for the small brewery and medium beverage plant

6. Aluminum can and metal can are both available working on our seaming machine, We use our own technical drawing and own processing machine, to make sure our seaming head quality and always easy to purchase.

7. If Cans stock on conveyor then sensor will inform PLC to stop the Can feeding.

8. About machine test and shipment, we are stick with real production test till all problem is fix and then ship out.

MIC 24-6 Canning Machine for Drinks (4000-8000CPH)

Overview
Introducing the MIC 24-6 Canning Machine for Drinks, a state-of-the-art solution from Micmachinery designed to enhance your beverage production capabilities. With a speed range of 4000 to 8000 cans per hour (CPH), this machine is perfect for businesses looking to streamline their canning process while maintaining high quality.

Key Features
High-Speed Efficiency
Operate at an impressive capacity of 4000 to 8000 CPH, making it an ideal drink canning machine for high-volume production needs.

Versatile Beverage Compatibility
Designed to handle various beverages, including carbonated drinks and flavored waters, this canning machine for drink adapts easily to your product lineup.

Precision Filling System
Advanced filling technology ensures accurate fills, minimizing waste and guaranteeing product consistency in your canning machine drinks operations.

User-Friendly Interface
An intuitive control panel allows for easy monitoring and adjustments, reducing training time and improving operational efficiency.

Robust Construction
Built with high-quality materials for durability, the MIC 24-6 minimizes maintenance needs and promises a long service life.

Energy-Efficient Design
Operate sustainably with reduced energy consumption, helping lower costs and promote eco-friendly practices.

Easy Maintenance
Quick disassembly features facilitate thorough cleaning, ensuring compliance with hygiene standards and protecting your brand reputation.

Conclusion
The MIC 24-6 Canning Machine for Drinks (4000-8000CPH) is a top-tier solution for beverage manufacturers looking to enhance their canning efficiency. With its robust features and user-friendly design, this drink canning machine is a reliable choice for boosting productivity. Partner with Micmachinery to transform your canning operations today! For more information, contact us to discuss how the MIC 24-6 can meet your specific needs.
In the fast-paced beverage industry, efficient and precise packaging processes are vital to meet the ever-growing demands of consumers. When it comes to packaging drinks, cans have become a popular choice due to their convenience and portability. To optimize the canning process and enhance productivity, the industry has witnessed the advent of advanced canning machines drinks. These cutting-edge machines revolutionize the beverage packaging landscape, providing seamless canning solutions and ensuring the highest quality standards.

Empty can depalletizer


Automatic empty aluminum cans depalletizer is mainly used for automatic unloading of empty cans. The empty cans stacked on the pallet, from bottom to top layer of lift and push to the net conveyor and matching use with inline cans rinser which is the ideal equipment of medium-sized and large beverage manufacturers essential.

Inline can rinser / can washing machine


The inline can rinser is used to clean the empty cans by clean water before filling, we can add this can rinser in the beginning of filling line. The twist cages are customized with your sample cans. As long as the height and diameter of your cans are different, you need to buy the extra set twist cages to change.

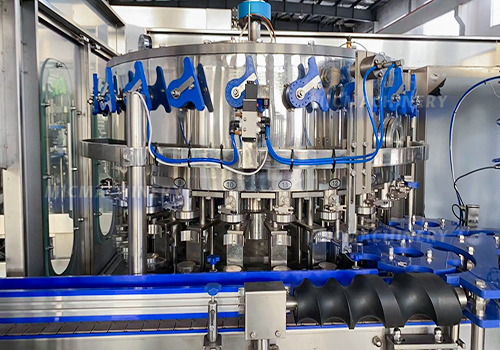

Isobaric pressure / counter pressure filling system


“MIC” Isobaric pressuring filling does not create foaming during fill, unless beer is above 40°F. Counter Pressure filling leaves 1.27CM headspace, required by can manufacturers for product expansions and potential warming during distribution. Our machine will not foaming and it can keep low DO in the cans. Counter pressuring filling does not create foaming during filling process. Adopts high precision buffing process and food grade 304 stainless steel liquid tank. It will equipped with CIP connector as customer's demand.

Liquid nitrogen doser


Normally, as for cold brew coffee, fruit juice and herbal tea filling, we will suggest our customer to add this liquid nitrogen doser to work with canning machine. In order to extend its shelf life and make sure it tastes good. It also makes the aluminum cans fuller and less prone to deformation.

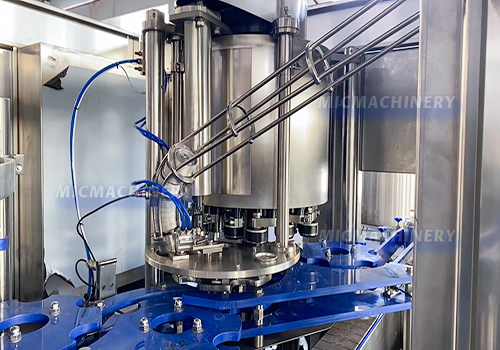

Aluminum lid seaming system


The “MIC” system is a mechanism actuated, cam-driven seamer with easily adjustable rollers that allow for precise adjustment to from seams that are within can-maker specifications. Seams are formed in under only a second, faster than any other system in its class. Through two past decade’s technology innovation and optimization, the result is revolutionary.

Mic 24-6 Parameters

Power
3.5Kw
Filling heads
24piece
Sealing heads
6piece
Production capacity

4000-8000CPH based on 330ml

Filling temperature
0-4℃
Filling pressure

Max 5bar/0.5Mpa

Can diameter range

Ф40-90MM

Bottle height
92-168MM
Dimension
2580*1700*1950mm
Weight
3000Kg



More Model And Speed Click

Model
MIC 12-1 MIC 18-1 MIC 18-6 MIC 24-6 MIC 32-8
Application Beer,  Carbonated Beverage, Gas Drinks, Cold Coffee, Sparking Water, Cider, Soda Water, Herbal Tea, Non-Carbonated Drinks And So On
Packing Type Aluminum Cans, Metal Cans, Tin Cans, Pet Cans Etc
Speed 1000-2000CPH 1000-2500CPH 3000-6000CPH 4000-8000CPH 6000-10000CPH
Filling Arrange 180ml, 250ml, 330ml, 355ml, 440ml, 500ml, 8oz, 12oz, 16oz, 1L and so on (0.1-1L)
Power 1.1kw 1.5kw 2.5kw 3.5kw 4.2kw
Size 1.8*1.3*1.95 (M) 1.9*1.3*1.95(M) 2.3*1.4*1.9(M) 2.58*1.7*1.8(M) 2.8*1.7*1.95(M)
Weight 1800KG 2100KG 2500KG 3000KG 3800(KG)

1

Name

Brand

2

Push Button

Schneider France

3

Electromagnetic Contactor

Schneider France

4

Relays

Omron Japan

5

Frequency Converter

Siemens

6

Air Cylinder

AirTAC Taiwan

7

Electromagnetic Valve

AirTAC Taiwan

8

PLC Control System

Siemens

9

Touch Screen

Siemens

10

Photoelectric Switch

Autonics

11

Proximity Switch

Autonics

12

Reducer

Zhejiang Duoli China

13

Sealing Motor

Zhejiang Duoli China

14

Barometer

AirTAC Taiwan

15

Bearing

Harbin China
