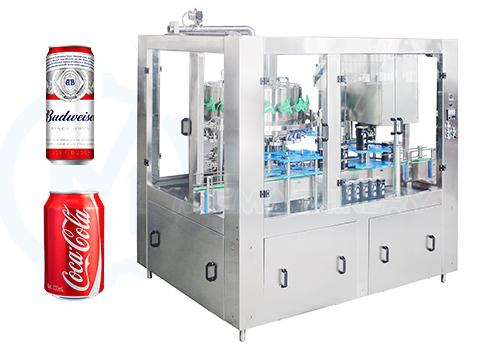

MIC 18-1 Beer Filling Machine (1500-2500CPH, manufacturer sale price click for factory video)
MIC 18-1 Beer Filling Machine (1500-2500CPH, manufacturer sale price click for factory video)
MIC 18-1 Beer Filling Machine (1500-2500CPH, manufacturer sale price click for factory video)
MIC 18-1 Beer Filling Machine (1500-2500CPH, manufacturer sale price click for factory video)
MIC 18-1 Beer Filling Machine (1500-2500CPH, manufacturer sale price click for factory video)
Video
  • Introduction
  • Parameters
  • Setup List
  • Client Views


Mic 18-1 carbonated drink can filling line machine adopts counter pressure filling system which is applicable for beer, carbonated beverage, soft drink, hard cider, soda water, sparkling water and other canned gas drinks (Cold filling temperature at 0-4 degrees Celsius)

If you also want to use the same machine to fill non-carbonated drinks is available. Through change the counter pressure filling valves to normal pressure filling valves then it will be suitable for filling non-carbonated beverages such as energy drink, fruit juice, cold brew coffee, vitamin water, herbal tea and so on.

beer canning machine, beer can machine, beer can filling machine, beer filling machine, canning line, beer canning machine for sale, beer canning line


Machine features:

1. Mic 18-1 carbonated beverage can filling machine is in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit. Filling and seaming part is the overall designed, in order to ensure that both the absolute synchronization and coordination.


2. Isobaric filling system, controlled by pressure, accuracy is +/-1%liquid level difference is not more than 2mm. (requires steady pressure and temperature at 0-4degrees Celsius).


3. Can seaming machine is qualified for Chinese seaming standard, and no air leakage at all.


4. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can equip CIP system according to the customers’ request. It is the preferred equipment for the small brewery and medium beverage plant.


5. Aluminum can and metal can are both available working on our seaming machine, We use our own technical drawing and own processing machine, to make sure our seaming head quality and always easy to purchase.


6. If Cans stock on conveyor then sensor will inform PLC to stop the Can feeding.


Looking for a high-speed and efficient solution for your brewery's beer canning needs? Micmachinery offers a beer filling machine that can fill 1500-2500 cans per hour, making it perfect for medium-sized to large breweries.

Our beer filling machine is designed for precision and consistency, allowing you to quickly and easily fill your beer cans with minimal product loss. It features a user-friendly interface, automatic filling controls, and a compact footprint, making it easy to integrate into your existing beer canning setup.

With our beer filling machine, you can increase your canning production output while maintaining the quality of your beer packaging. It's also easy to clean and maintain, which helps to reduce downtime and increase productivity.

At Micmachinery, we're committed to providing high-quality beer filling machines that meet the needs of medium to large breweries. Contact us today to learn more about how our equipment can benefit your brewery and take your beer canning to the next level.

Inline can rinser / can washing machine

The inline can rinser is used to clean the empty cans by clean water before filling, we can add this can rinser in the beginning of filling line. The twist cages are customized with your sample cans. As long as the height and diameter of your cans are different, you need to buy the extra set twist cages to change.

Isobaric pressure / counter pressure filling system


“MIC” Isobaric pressuring filling does not create foaming during fill, unless beer is above 40°F. Counter Pressure filling leaves 1.27CM headspace, required by can manufacturers for product expansions and potential warming during distribution. Our machine will not foaming and it can keep low DO in the cans. Counter pressuring filling does not create foaming during filling process. Adopts high precision buffing process and food grade 304 stainless steel liquid tank. It will equipped with CIP connector as customer's demand.

Foaming device before seaming for craft beer


“MIC” Counter pressure can filler foaming with hot water or beer jet after filling to eliminate head space and exposure to atmosphere. In order to prevent the oxygen into the can's top position. Jet foaming is the practice used by high-standard breweries. We have tested with dissolved oxygen meter, our TPO is lower than 50PPB.

Aluminum lid seaming system

The “MIC” system is a mechanism actuated, cam-driven seamer with easily adjustable rollers that allow for precise adjustment to from seams that are within can-maker specifications. Seams are formed in under only a second, faster than any other system in its class. Through two past decade’s technology innovation and optimization, the result is revolutionary.

Mic 18-1 Parameters

Power
1.5Kw
Filling heads
18piece
Sealing heads
1piece
Production capacity

1000-2500CPH based on 330ml

Filling temperature
0-4 ℃
Filling pressure
Max 5bar/0.5Mpa
Can diameter range
Ф40-90MM
Can height
92-168MM
Dimension

1900*1300*1950mm

Weight 2100Kg

More Model And Speed Click

Model
MIC 12-1 MIC 18-1 MIC 18-6 MIC 24-6 MIC 32-8
Application Beer,  Carbonated Beverage, Gas Drinks, Cold Coffee, Sparking Water, Cider, Soda Water, Herbal Tea, Non-Carbonated Drinks And So On
Packing Type Aluminum Cans, Metal Cans, Tin Cans, Pet Cans Etc
Speed 1000-2000CPH 1000-2500CPH 3000-6000CPH 4000-8000CPH 6000-10000CPH
Filling Arrange 180ml, 250ml, 330ml, 355ml, 440ml, 500ml, 8oz, 12oz, 16oz, 1L and so on (0.1-1L)
Power 1.1kw 1.5kw 2.5kw 3.5kw 4.2kw
Size 1.8*1.3*1.95 (M) 1.9*1.3*1.95(M) 2.3*1.4*1.9(M) 2.58*1.7*1.8(M) 2.8*1.7*1.95(M)
Weight 1800KG 2100KG 2500KG 3000KG 3800(KG)

Name

Brand

Buttons

Schneider (France)

Touch screen

Siemens (Optional)

AC Contactor

Schneider (France)

PLC

Mitsubishi (Japan) / Siemens (Optional)

Frequency changer

Schneider (France)

Air cylinder

AirTAC (China) / FESTO (Optional)

Solenoid valve

AirTAC (China) / FESTO (Optional)

Relay

Omron (Japan) / Schneider (France)

photoelectric sensor

Autonics (Korea) / Omron (Optional)

Proximity switch

Autonics / Omron (Optional)
