MIC 18-18-1 Beer Bottling Machine(800-1500BPH)

If you are a brewery owner or a beverage producer looking for a reliable machine that handles everything from washing to filling to capping in one clean flow, you have found exactly what you need. The MIC 18-18-1 Beer Bottling Machine is one of the most dependable machines available for small to medium production facilities running between 800 and 1500 bottles per hour. It does not overcomplicate things.

It washes the bottles, fills them with beer at the right temperature and pressure, seals them properly and sends them down the line ready for the shelf. Every single time. That kind of consistency is what separates a good brewery from a great one.

This beer filling machine is built entirely from SUS304 food grade stainless steel which makes it safe for beverage production, easy to clean and resistant to the kind of wear that cheaper machines start showing after a few months of heavy use. The entire operation runs through a Siemens PLC control system with a Siemens touch screen so your team can monitor and adjust everything from one simple panel without needing an engineer on site every time something needs changing.

How the MIC 18-18-1 Beer Bottling Machine Works from Start to Finish

Washing, Filling and Capping All in One Smooth Process

The process starts with the washing part. Every bottle gets turned upside down and placed directly above a spraying nozzle that pushes clean rinse water into the bottle. After the water drains completely the bottle gets turned back upright and moves straight into the filling station.

This step sounds simple but it makes a huge difference to the quality of the final product. Clean bottles mean clean beer and that matters a lot when your brand is on the label.

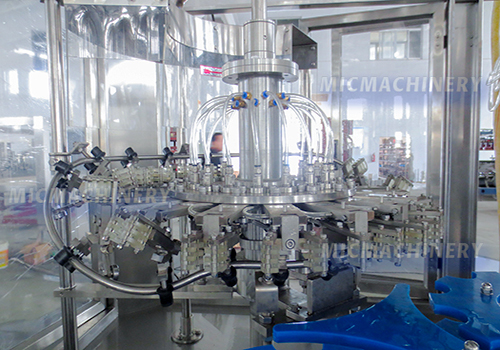

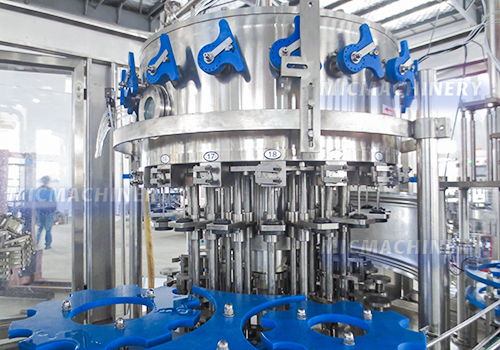

The automatic beer bottling equipment filling system uses isobaric low temperature filling valves made from SUS316L stainless steel. These valves fill each bottle with the beer at a consistent pressure and temperature which keeps the carbonation exactly where it should be. There is no foam buildup, no oxygen getting in and no variation between one bottle and the next. Every bottle that comes off this machine is filled to the same level with the same quality every single shift.

After filling, the capping station takes over. The cap chute is equipped with a photoelectric switch that stops the machine automatically if there is no cap in position. The inlet bottle detection switch also watches for any bottle that is not in the right place before capping begins. These two small features alone save a huge amount of wasted product and rework time over the course of a full production day.

Key Features of This Automatic Beer Bottling Machine

What Makes This Machine Stand Out from Everything Else

This bottling beer machine comes loaded with features that genuinely make your daily operation easier and more efficient. Here are the key ones you need to know about:

The filling valves use a high precision mechanical design with a no bottle no fill mechanism. If there is no bottle in position the valve does not open. This stops beer from spilling onto the machine and wasting product during any slowdown or gap on the line.

The machine runs two rounds of vacuumizing before filling begins and comes with a high pressure foam simulating device. This combination removes oxygen from inside the bottle before the beer goes in which protects the taste and extends the shelf life of every bottle you produce.

The drive system uses open gear and gear combination with stepless frequency speed adjustment so you can fine tune the speed of the line to match your current production needs without stopping everything to make mechanical changes.

An automatic lubrication device keeps all the moving parts running smoothly without requiring your team to stop the machine for manual greasing throughout the shift.

The product level inside the filling tank is controlled by an electric probe that keeps the liquid level stable at all times. This means every filling valve always has the same amount of beer available and filling consistency is maintained even during long uninterrupted production runs.

This beer filling machine also works perfectly as a juice bottling machine and a beer bottle washing machine all in one unit. Whether you produce beer, juice or other carbonated beverages, this machine handles multiple product types without needing a separate setup for each one.

Trusted Components That Keep This Beer Bottling Machine Running Reliably

Built With Brands That Production Managers Around the World Rely On

The MIC 18-18-1 automatic beer bottling equipment is not put together with random parts. Every component was chosen specifically for durability and performance in real industrial environments. Schneider France handles the push buttons and electromagnetic contactors. Omron Japan supplies the relays.

Siemens provides the frequency converter, the PLC control system and the touch screen panel. AirTAC Taiwan takes care of the air cylinders, electromagnetic valves and barometers. Autonics handles the photoelectric and proximity switches. Harbin bearings keep the rotating parts running true over years of continuous use.

Contact Micmachinery Today and Get Your Beer Bottling Machine Working for You

A Team That Supports You Long After the Machine Is Installed

Micmachinery does not just sell you this bottling beer machine and walk away. Every purchase comes with full installation support, hands on operator training and reliable after sales service that you can actually reach when you need help.

Whether you are setting up a new brewery line or replacing aging equipment, the MIC 18-18-1 automatic beer bottling machine gives you the speed, the consistency and the build quality your production deserves. Contact us today to get your quote and get started.
