MIC12-12-5 machine is a kind of professional filling machine for juice, mineral water, pure water which applies to PET bottle. It is made of high quality SUS304 stainless steel. Main components are processed precisely by CNC machine tool. The machine adopts advanced photo electricity to detect running status. No bottle no filling. It realize man-machine conversation because of applying touch screen for operation
1) Bottle is entered by air conveyor, the speed of bottle entering is fast and bottle shape isn’t changed because of adopting hanging clamping bottleneck way
2) Adopting clamping bottleneck way to wash bottle mouth and avoid touching screw mouth, adopting clamping bottleneck way in the whole conveying process. When bottle type changes, you need to change the board related with bottle diameter
3) Filling adopts cylinder feeding structure, filling valve adopts high filling speed and mass flow rate valve which control liquids level accurately and without loss.
4) Screw capper adopts French advanced technology which cans screw cap promptly when clamping bottle.
5) The PLC and transducer are chosen from international famous brand, such as OMRON, MITSUBISHI.
Certainly! A soft drink filling machine price in the beverage industry used for filling bottles or cans with soft drinks. The price of a soft drink filling machine can vary depending on several factors, such as the type of machine, its production capacity, and the manufacturer.
Fully automated soft drink filling machines are generally more expensive than semi-automatic or manual machines due to their advanced features and higher production capacity. However, they can significantly increase efficiency and productivity, which can lead to cost savings in the long run.
The soft drink filling machine price is an essential consideration for beverage manufacturers, particularly those operating on a tight budget. It is important to evaluate production needs and carefully consider the costs and benefits of different machine types before making a purchase.

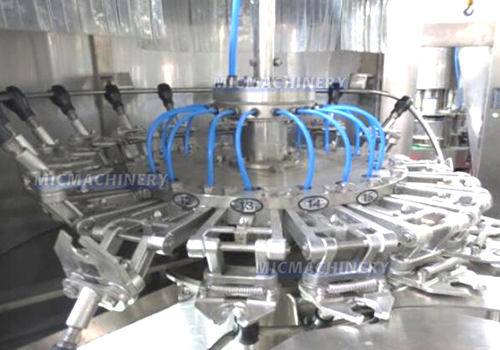

Washing Part

Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

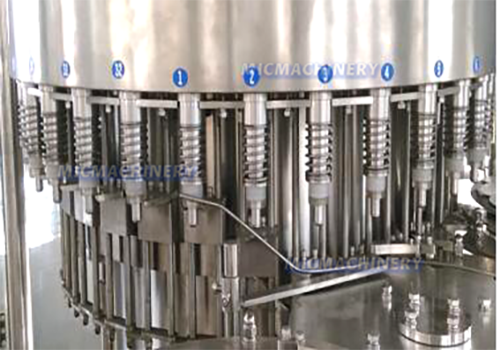

Filling Part

Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), filling pump, bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.
Rotary wheel fully made of stainless steel SUS 304. Filling valves are made of SUS316L. Filling valves are reasonably structured with accurate filling. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.


Capping Part

Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.
Model MIC 12-12-5
Working section Washing 12, filling 12, capping 5
Productivity 3000-5000BPH(Base on 500ml/bottle)
Air pressure 0.4MPa
Air consume 0.15m3/min
Washing water pressure 0.2MPa
Washing water consume Less than 1T/hour
Main motor power 2.2kW
Total power 5KW
Overall size 2250*1650*2200mm
Total weight 3500kg
Electrical configuration
Touch screen MITSUBISHI
Frequency converter MITSUBISHI
PLC MITSUBISHI
Contactor, breaker DELIXI
Proximity switch DELIXI
Photoelectric switch DELIXI
Bearing Harbin
Relay OMRON
Barometer AirTAC
Air cylinder AirTAC
Solenoid valve AirTAC
