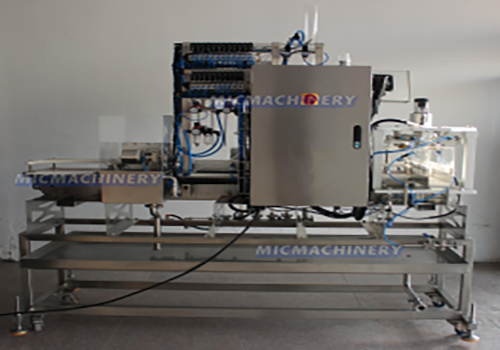

MIC Linear Beverage Can Filling Machine(1000-1500CPH)
MIC Linear Beverage Can Filling Machine(1000-1500CPH)
MIC Linear Beverage Can Filling Machine(1000-1500CPH)
MIC Linear Beverage Can Filling Machine(1000-1500CPH)
Video
  • INTRODUCTION
  • PARAMETERS

Automatic mobile portable beverage can filling machine is very suitable for small brewery.  It has Co2 purge function, counter pressure filling system, lid loading system, lid seaming system, cover cleaning function.

Business items
1)Price is on the basis of FOB Shanghai
2)Payment term: 30% T/T deposit advanced, 70% T/T balance before shipment.
3)Delivery time: 45-50 working days after receiving samples and deposit
4)After-sale service: We provide one year guarantee, provide timely and effective services.
After the warranty period, we provide users with lifetime technical service and after-sales service.
5)PRICE VALID TIME: 60DAYS

In summary, beverage can filling machines are crucial components in the beverage industry, providing efficiency, precision, and flexibility in the canning process. These machines optimize production, ensuring accurate liquid fillings, and meeting consumer expectations for quality and consistency. With their focus on safety, hygiene, and reliability, beverage can filling machines help beverage manufacturers uphold the highest standards in product packaging. Investing in a high-quality, well-maintained beverage can filling machine is a strategic decision for companies seeking to maximize efficiency, maintain product integrity, and achieve success in the competitive beverage market.

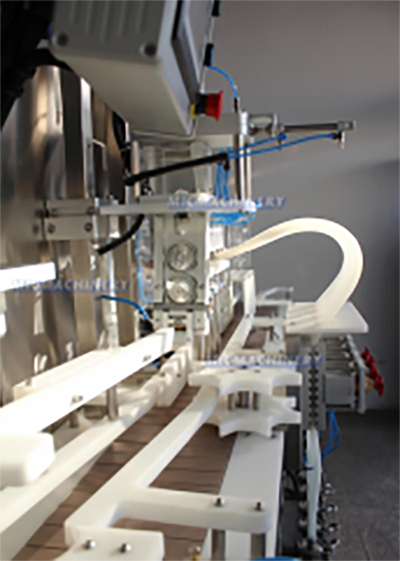

Linear Beer Can Filling Machine

This linear beer can filling machine has four filling heads, when the beer can enter into the machine, automatically filling. Then beer can enter capping station.

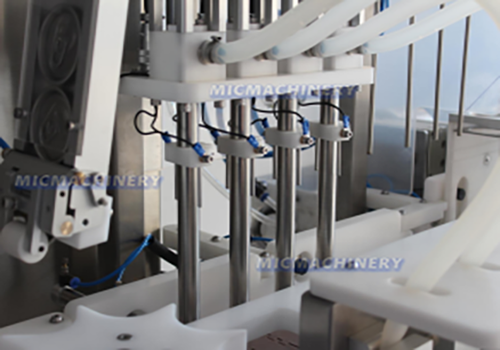

Filling Head

After pressing the button, the filling head enters the inside of the cans and fills the beer into the cans. Filling heads are easy to replace and clean.


Coveryor Station

The conveyor belt transports the bottles into the filling and capping system. When the machine fails, the conveyor belt will automatically stop working

Equipment Parameter

MIC 4-4-1 Beer Can Rinser Filler Seamer

1

Dimension (L*W*H)

2.00×0.91×1.85M

2

Equipment Weight

400KG

3

Packing Size (L*W*H)

2.20×1.15×2.05M

4

Packing Weight

550KG

5

Production Capacity

1200- 1500pcs/ H(330ml) 396-495L/ H

1000- 1200pcs/ H(500ml) 500-600L/ H

6

Voltage

380V-3 Phases-50Hz (Customized)

7

Power port

3P+ N+G

8

Power consumption

2.0-3.5KW

9

Main Material

SUS304

10

Beer Storage Tank Pressure

0.15-0.2Mpa (22-30PSI) 1.5" Tir-clamp

11

Compressed Air

0.5-0.7Mpa (75.0- 105PSI) OD:Ф10mm

12

Jacking Can Pressure

0.20-0.30Mpa (30-45PSI)

13

CO2 Pressure

0.15-0.2Mpa (22-30PSI) OD:Ф10mm

14

Flip- Rinse Pressure

0.15-0.20Mpa(22-30PSI) 1.5" Tir-clamp

15

Exit- Rinse Water Pressure

0.15-0.20Mpa(22-30PSI) 1.5" Tir-clamp
