MIC 24-6 Automatic Soda Can Filling Machine(4000-8000CPH)

When your production line needs to move fast without cutting corners on quality the MIC 24-6 automatic soda filling machine from Micmachinery is the answer. This machine fills between 4000 and 8000 cans per hour based on 330ml cans which puts it firmly in the high volume category for medium to large beverage manufacturers.

The automatic soda filling machine uses an isobaric pressure filling system that keeps carbonation perfectly intact inside every single can during the entire filling process. No foaming, no pressure loss and no wasted product. The filling accuracy sits at plus or minus 1 percent and the liquid level difference stays within 2mm which tells you exactly how precise this machine is every single time it runs.

The machine handles a wide range of carbonated drinks including soda water, sparkling water, soft drinks, hard cider and carbonated beverages of all kinds at a cold filling temperature of 0 to 4 degrees Celsius. If you want to use the same machine for non carbonated drinks like energy drinks, fruit juice, cold brew coffee or herbal tea that is also possible.

All you need to do is switch the counter pressure filling valves to normal pressure filling valves and the machine adapts quickly without any major downtime or retooling required.

What Makes This Automatic Filling Machine Different

The automatic filling machine body is built from food grade SUS304 stainless steel from top to bottom which makes it strong, hygienic and very easy to clean between production runs. The isobaric pressure filling tank is made using a high precision buffing process and the liquid tank is fully food grade so everything that touches your product meets the highest safety standards in the beverage industry.

The machine also supports a CIP cleaning system connection based on customer requirements which makes the cleaning process even more thorough and efficient on a daily basis.

The PLC control system comes from Siemens which is one of the most trusted industrial automation brands anywhere in the world. The touch screen interface is also Siemens which gives your operators a clear and easy way to control everything on the line in real time.

The frequency converter from Siemens manages the speed of the machine smoothly and the no can no fill feature makes sure your machine never wastes product when a can is not in the correct position. If cans back up on the conveyor the sensor automatically informs the PLC to stop can feeding which protects the machine and keeps everything running safely.

A Soda Canning Machine Built With World Class Components

Every major component inside this soda canning machine comes from a trusted international brand. Push buttons and electromagnetic contactors come from Schneider France. Relays come from Omron Japan. Air cylinders, electromagnetic valves and barometers come from AirTAC Taiwan. Photoelectric and proximity switches come from Autonics.

This is not a machine built with random parts. Every component is chosen because it performs reliably under continuous production conditions and holds up well over many years of daily use.

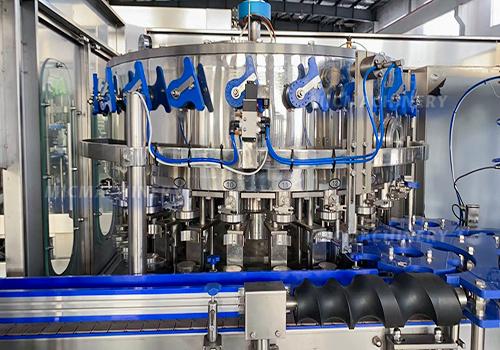

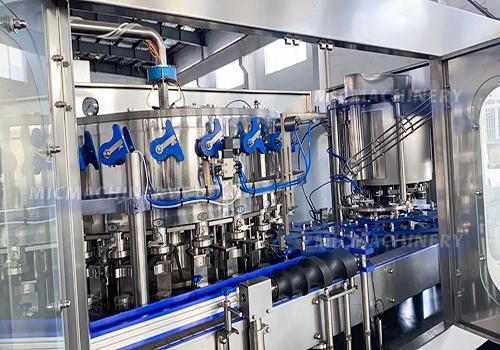

The soda canning machine has 24 filling heads and 6 sealing heads working together in complete synchronization. The filling and seaming sections are designed as one integrated unit to make sure both processes stay perfectly coordinated at all times.

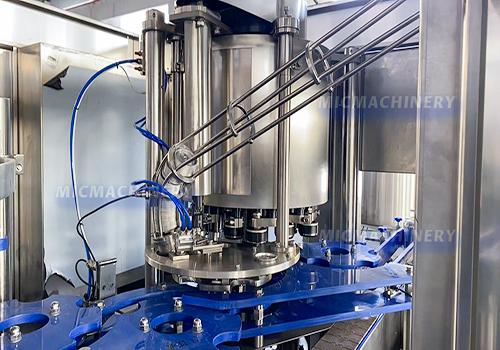

The cam driven aluminum lid seaming system produces a perfect seam in under one second which is faster than most competing systems in this category. Seam quality meets standard can manufacturer specifications every time so your finished cans look exactly right when they reach the market.

A Beverage Can Filling Machine and Beer Can Filling Machine in One

One of the most useful things about this machine is that it works as both a beverage can filling machine and a beer can filling machine without needing separate equipment for each product. Aluminum cans, metal cans and tin cans all work with this machine across a filling range of 180ml all the way up to 1 litre.

This makes it an incredibly flexible piece of equipment for any producer who handles more than one type of drink in their facility. The beverage can filling machine handles can diameters from 40mm to 90mm and can heights from 92mm to 168mm which covers the vast majority of standard can sizes used in the market today.

The machine dimensions are 2580 x 1700 x 1950 mm and it weighs 3000 kg with a power requirement of only 3.5 kw which is very energy efficient for the output it delivers. Every machine goes through a real production test before it leaves the Micmachinery factory so you receive something that is completely ready to run from day one.
