  • Introduction
  • Parameters
  • Setup List
  • Client Views

Mic 24-6 beer can filling machine adopts isobaric pressure filling system which is applicable for beer, carbonated beverage, soft drink, hard cider, soda water, sparkling water and other canned drinks (Cold filling temperature at 0-4 degrees Celsius) If you also want to use the same machine to fill non-carbonated drinks is available. Through change the counter pressure filling valves to normal pressure filling valves then it will be suitable for filling non-carbonated beverages such as energy drink, fruit juice, cold brew coffee, herbal tea and so on.



Machine features:

1. Mic 24-6 beer can filling machine is in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit. Filling and seaming part is the overall designed, in order to ensure that both the absolute synchronization and coordination.

2. The machine adopts PLC, frequency converter, human machine interface controlling system, having the advanced controlling technologies, such as frequency control, no can no filling and so on.

3. Isobaric filling system, controlled by pressure, accuracy is +/-1%liquid level difference is not more than 2mm. (requires steady pressure and temperature at 0-4degrees Celsius).

4. Can seaming machine is qualified for Chinese seaming standard, and no air leakage at all.

5. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can equip CIP system according to the customers’ request. It is the preferred equipment for the small brewery and medium beverage plant

6. Aluminum can and metal can are both available working on our seaming machine, We use our own technical drawing and own processing machine, to make sure our seaming head quality and always easy to purchase.

7. If Cans stock on conveyor then sensor will inform PLC to stop the Can feeding.

8. About machine test and shipment, we are stick with real production test till all problem is fix and then ship out.

The beer can filling machine represents a remarkable technological advancement in brewery operations, providing a streamlined and automated solution for efficiently filling beer into cans. Crafted with precision engineering, this cutting-edge equipment seamlessly integrates various components to create a highly efficient filling line. By combining speed, accuracy, and reliability, the beer can filling machine plays a pivotal role in meeting the evolving demands of the brewing industry.

MIC 24-6 Beer Can Filling Machine: High-Speed Efficiency for Modern Breweries

Micmachinery is proud to present the MIC 24-6 Beer Can Filling Machine, a top-of-the-line solution for breweries seeking high-speed, precision, and reliability in their canning operations. With a capacity range of 4000 to 8000 cans per hour (CPH), this beer can packaging machine is designed to streamline the canning process and maximize your brewery’s efficiency.

High-Performance Beer Can Filling
The beer can filling machine combines cutting-edge technology and robust engineering to ensure that your brewery can meet the increasing demands of the market. Whether you are bottling craft beers, lagers, or IPAs, this beer can filler machine ensures that every can is filled accurately, preserving the quality and freshness of your beer from the production line to the shelf.

With a high-speed operation of 4000 to 8000 CPH, the MIC 24-6 Beer Can Filling Machine significantly boosts your production capacity without sacrificing quality. This makes it an ideal choice for medium to large-scale breweries looking to increase output while maintaining the highest standards of quality and precision.

Key Features of the MIC 24-6 Beer Can Filling Machine

Speed and Efficiency
The beer can packaging machine is designed for high-output breweries. Its 4000-8000 CPH capacity makes it suitable for large-scale operations that require a high level of productivity. The machine’s ability to run at high speeds without compromising on accuracy makes it an essential piece of equipment for breweries looking to scale quickly.

Precision and Consistency
The beer can filling machine features advanced filling technology that ensures precise, consistent fills. With smart sensors and automated controls, the beer can filler machine delivers exact fill levels, preventing overfilling and underfilling. This minimizes product waste and ensures that your beer is packaged to the highest quality standards every time.

Hygienic and Durable Construction
Made from high-quality stainless steel, the MIC 24-6 Beer Can Filling Machine is not only durable but also hygienic. Its easy-to-clean components and automated cleaning system ensure that the machine meets the stringent cleanliness standards required in the brewing industry. This hygienic design helps maintain the integrity of your beer and prevents contamination.

User-Friendly Interface
With an intuitive control panel, the beer can filling machine is easy to operate and monitor. Operators can quickly adjust settings and keep track of key performance indicators, ensuring smooth operations even during high-speed runs. The user-friendly design minimizes the learning curve for your team and ensures efficient operation from day one.

Flexible and Adaptable
Whether you're filling 330ml cans or larger 500ml cans, the beer can filler machine offers flexibility in terms of can sizes. The system is designed for quick changeovers, ensuring that your brewery can easily switch between different can formats to accommodate varying production needs. This adaptability makes it perfect for breweries with a diverse range of beer offerings.

Why Choose the MIC 24-6 Beer Can Filling Machine?
Choosing the MIC 24-6 Beer Can Filling Machine means choosing a solution that prioritizes both speed and quality. This beer can packaging machine is engineered to handle the demands of modern breweries that need to produce large volumes of beer without compromising on precision or product integrity. With its high-speed capabilities, precise filling technology, and durable construction, it’s the ideal choice for breweries looking to enhance their canning operations.

Investing in the beer can filling machine ensures that your production line operates with greater efficiency and lower costs. By reducing waste and increasing the speed of your canning process, you can keep up with market demand while maintaining a top-quality product.

Conclusion
For breweries aiming to scale their operations while maintaining quality, the MIC 24-6 Beer Can Filling Machine is the perfect choice. Micmachinery is dedicated to providing state-of-the-art, high-performance canning solutions, and our beer can filler machine is designed to meet the specific needs of today’s competitive brewing industry. Contact us today to learn how this cutting-edge beer can packaging machine can help optimize your brewery’s production line.

Empty can depalletizer


Automatic empty aluminum cans depalletizer is mainly used for automatic unloading of empty cans. The empty cans stacked on the pallet, from bottom to top layer of lift and push to the net conveyor and matching use with inline cans rinser which is the ideal equipment of medium-sized and large beverage manufacturers essential.

Inline can rinser / can washing machine


The inline can rinser is used to clean the empty cans by clean water before filling, we can add this can rinser in the beginning of filling line. The twist cages are customized with your sample cans. As long as the height and diameter of your cans are different, you need to buy the extra set twist cages to change.

Isobaric pressure / counter pressure filling system


“MIC” Isobaric pressuring filling does not create foaming during fill, unless beer is above 40°F. Counter Pressure filling leaves 1.27CM headspace, required by can manufacturers for product expansions and potential warming during distribution. Our machine will not foaming and it can keep low DO in the cans. Counter pressuring filling does not create foaming during filling process. Adopts high precision buffing process and food grade 304 stainless steel liquid tank. It will equipped with CIP connector as customer's demand.

Liquid nitrogen doser


Normally, as for cold brew coffee, fruit juice and herbal tea filling, we will suggest our customer to add this liquid nitrogen doser to work with canning machine. In order to extend its shelf life and make sure it tastes good. It also makes the aluminum cans fuller and less prone to deformation.

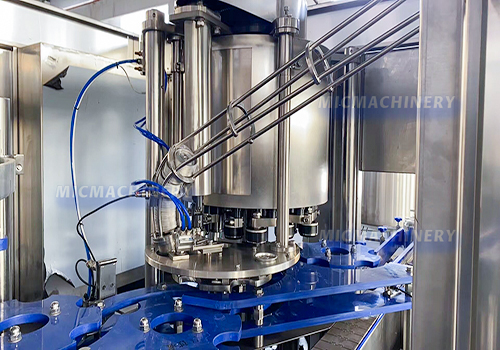

Aluminum lid seaming system


The “MIC” system is a mechanism actuated, cam-driven seamer with easily adjustable rollers that allow for precise adjustment to from seams that are within can-maker specifications. Seams are formed in under only a second, faster than any other system in its class. Through two past decade’s technology innovation and optimization, the result is revolutionary.

Mic 24-6 Parameters

Power
3.5Kw
Filling heads
24piece
Sealing heads
6piece
Production capacity

4000-8000CPH based on 330ml

Filling temperature
0-4℃
Filling pressure

Max 5bar/0.5Mpa

Can diameter range

Ф40-90MM

Bottle height
92-168MM
Dimension
2580*1700*1950mm
Weight
3000Kg



More Model And Speed Click

Model
MIC 12-1 MIC 18-1 MIC 18-6 MIC 24-6 MIC 32-8
Application Beer,  Carbonated Beverage, Gas Drinks, Cold Coffee, Sparking Water, Cider, Soda Water, Herbal Tea, Non-Carbonated Drinks And So On
Packing Type Aluminum Cans, Metal Cans, Tin Cans, Pet Cans Etc
Speed 1000-2000CPH 1000-2500CPH 3000-6000CPH 4000-8000CPH 6000-10000CPH
Filling Arrange 180ml, 250ml, 330ml, 355ml, 440ml, 500ml, 8oz, 12oz, 16oz, 1L and so on (0.1-1L)
Power 1.1kw 1.5kw 2.5kw 3.5kw 4.2kw
Size 1.8*1.3*1.95 (M) 1.9*1.3*1.95(M) 2.3*1.4*1.9(M) 2.58*1.7*1.8(M) 2.8*1.7*1.95(M)
Weight 1800KG 2100KG 2500KG 3000KG 3800(KG)

1

Name

Brand

2

Push Button

Schneider France

3

Electromagnetic Contactor

Schneider France

4

Relays

Omron Japan

5

Frequency Converter

Siemens

6

Air Cylinder

AirTAC Taiwan

7

Electromagnetic Valve

AirTAC Taiwan

8

PLC Control System

Siemens

9

Touch Screen

Siemens

10

Photoelectric Switch

Autonics

11

Proximity Switch

Autonics

12

Reducer

Zhejiang Duoli China

13

Sealing Motor

Zhejiang Duoli China

14

Barometer

AirTAC Taiwan

15

Bearing

Harbin China
