Mic 18-6 coffee juice can filling seaming machine adopts normal pressure filling system which is applicable for fruit juice, cold brew coffee, energy drink, herbal tea, alcoholic beverages and other canned non-carbonated drinks (Cold filling temperature at 0-4 degrees Celsius or hot filling temperature at 80-85 degrees Celsius.)



Machine features:

1. Mic 18-6 coffee juice can filling machine is in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit. Filling and seaming part is the overall designed, in order to ensure that both the absolute synchronization and coordination.


2. The machine adopts PLC, frequency converter, human machine interface controlling system, having the advanced controlling technologies, such as frequency control, no can no filling and so on.


3. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can equip CIP system according to the customers’ request. It is the preferred equipment for the small brewery and medium beverage plant


4. The main electric and pneumatic components of the machine are famous imported brands, and it also can be disposed according to client’s requirements.

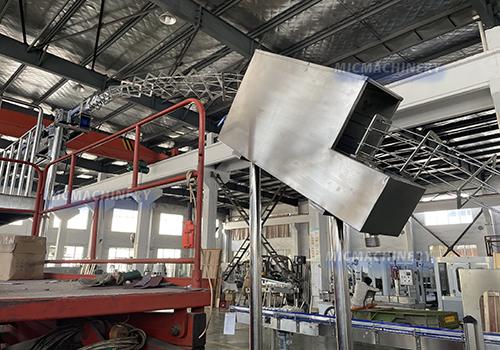

Empty can depalletizer


Automatic empty aluminum cans depalletizer is mainly used for automatic unloading of empty cans. The empty cans stacked on the pallet, from bottom to top layer of lift and push to the net conveyor and matching use with inline cans rinser which is the ideal equipment of medium-sized and large beverage manufacturers essential.

Inline can rinser / can washing machine

The inline can rinser is used to clean the empty cans by clean water before filling, we can add this can rinser in the beginning of filling line. The twist cages are customized with your sample cans. As long as the height and diameter of your cans are different, you need to buy the extra set twist cages to change.

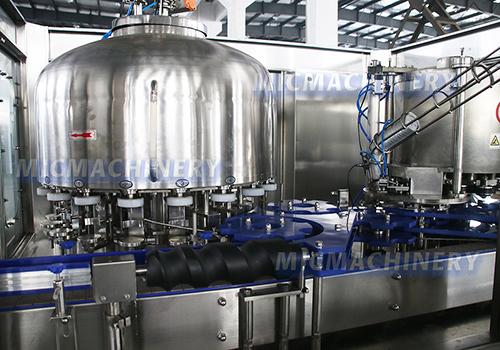

Normal pressure gravity filling system

Monoblock design, filling & seaming process combined in one system. Adopts high precision and normal pressure filling valve make sure the liquid level is high accuracy without loss. Adopts high precision grinding process and food grade 304 stainless steel liquid tank. It will equipped with CIP connector as customer's demand.

Liquid nitrogen doser

Normally, as for cold brew coffee, fruit juice and herbal tea filling, we will suggest our customer to add this liquid nitrogen doser to work with canning machine. In order to extend its shelf life and make sure it tastes good. It also makes the aluminum cans fuller and less prone to deformation.

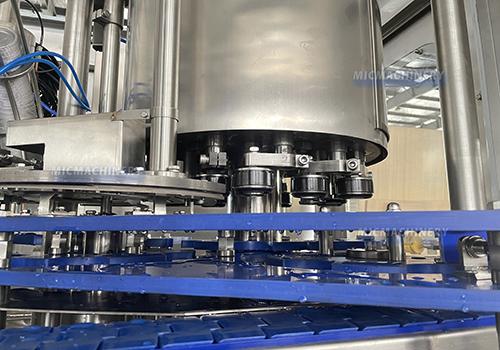

Aluminum lid seaming system

The “MIC” system is a mechanism actuated, cam-driven seamer with easily adjustable rollers that allow for precise adjustment to from seams that are within can-maker specifications. Seams are formed in under only a second, faster than any other system in its class. Through two past decade’s technology innovation and optimization, the result is revolutionary.

Mic 18-6 Parameters

Power
1.5Kw
Filling heads
18piece
Sealing heads
6piece
Production capacity

4000-7000CPH based on 330ml

Filling temperature
0-4 ℃

Can diameter range

Ф40-90MM

Can height

92-168MM

Dimension

2300*1400*1950mm

Weight

2500Kg

More Model And Speed Click

Model
MIC 12-1 MIC 18-1 MIC 18-6 MIC 24-6 MIC 32-8
Application

Fruit juice, cold coffee, energy drink, alcoholic beverage, herbal tea, non-carbonated drinks and so on

Packing Type

Aluminum cans, tin cans, pet cans, etc

Speed 1000-2000CPH 1000-2500CPH 4000-7000CPH 5000-8000CPH 8000-12000CPH
Filling Arrange

180ml, 250ml, 330ml, 355ml, 440ml, 500ml, 8oz, 12oz, 16oz, 1L and so on (0.1-1L)

Power 1.1kw 1.5kw 2.5kw 3.5kw 4.2kw
Size 1.8*1.3*1.95 (M) 1.9*1.3*1.95(M) 2.3*1.4*1.9(M) 2.58*1.7*1.9(M) 2.8*1.7*1.95(M)
Weight 1800KG 2100KG 2500KG 3000KG 3800(KG)
Name
Brand
Touch screen Siemens (Germany)
AC Contactor Schneider (France)
PLC

Mitsubishi (Japan) / Siemens (Optional)

Frequency changer

Schneider (France)

Air cylinder

AirTAC (China) / FESTO (Optional)

Solenoid valve

AirTAC (China) / FESTO (Optional)

Relay

Omron (Japan) / Schneider (France)

photoelectric sensor

Autonics (Korea) / Omron (Optional)

Proximity switch

Autonics / Omron (Optional)
