MIC Automatic Canned Soft Drink Filling Machine(3000-6000CPH)

MIC Automatic Canned Soft Drink Filling Machine(3000-6000CPH)
MIC Automatic Canned Soft Drink Filling Machine(3000-6000CPH)
MIC Automatic Canned Soft Drink Filling Machine(3000-6000CPH)
MIC Automatic Canned Soft Drink Filling Machine(3000-6000CPH)
Video
  • Introduction
  • Parameters
  • Setup List
  • Client Views

Automatic Canned Soft Drink Filling Machine adopts isobaric pressure filling system which is applicable for carbonated beverage, soft drink, soda water, sparkling water and other canned drinks (Cold filling temperature at 0-4 degrees Celsius)

If you also want to use the same machine to fill non-carbonated drinks is available. Through change the counter pressure filling valves to normal pressure filling valves then it will be suitable for filling non-carbonated beverages such as energy drink, fruit juice, cold brew coffee, vitamin water, herbal tea and so on.


Machine features:

1. Mic 18-6 Carbonated Drink Filling Machine is in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit. Filling and seaming part is the overall designed, in order to ensure that both the absolute synchronization and coordination.


2. The machine adopts PLC, frequency converter, human machine interface controlling system, having the advanced controlling technologies, such as frequency control, no can no filling and so on.


3. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can equip CIP system according to the customers’ request. It is the preferred equipment for the small brewery and medium beverage plant


4. The main electric and pneumatic components of the machine are famous imported brands, and it also can be disposed according to client’s requirements.

Versatility is a key feature of the Carbonated Drink Filling Machine. Designed to handle a wide range of carbonated beverages, including soda, sparkling water, and energy drinks, this machine accommodates various bottle sizes and filling requirements. Its adaptable configuration and customizable settings enable beverage manufacturers to meet diverse product demands, ensuring precise and efficient filling for different carbonated drink types. With this machine, versatility and adaptability become integral parts of the beverage production process.
Introducing the MIC Automatic Canned Soft Drink Filling Machine

Welcome to Micmachinery, where we offer cutting-edge solutions tailored for the beverage industry. Our MIC Automatic Canned Soft Drink Filling Machine is meticulously designed to deliver high performance, with a production capacity of 3000 to 6000 cans per hour (CPH). This exceptional **carbonated drink filling machine** is the perfect solution for manufacturers aiming to boost their efficiency and product quality.

Exceptional Performance
The automatic carbonated soft drink filling machine features advanced technology that guarantees precise filling and secure sealing. With its innovative filling mechanisms, it ensures that every can is filled accurately, preserving the carbonation and flavor of your beverages. This attention to detail minimizes waste and maximizes product integrity.

Versatile and Adaptable
Designed for versatility, our filling machine can accommodate various can sizes and shapes, making it suitable for a wide range of carbonated drinks, from traditional sodas to modern flavored beverages. This adaptability allows for seamless transitions between different products, enhancing overall production flexibility.

User-Centric Design
Operator convenience is a priority in our design process. The intuitive control panel allows for easy monitoring and adjustments, simplifying operation and reducing training time for staff. Additionally, the machine includes comprehensive safety features to create a secure working environment, adhering to industry standards.

Robust Construction
The MIC Automatic Canned Soft Drink Filling Machine is built from high-quality materials, ensuring durability and longevity. Its sturdy construction is designed to withstand the demands of continuous operation, reducing the frequency of maintenance and downtime, thereby increasing overall productivity.

Energy Efficiency
Our commitment to sustainability is reflected in the energy-efficient design of this drink filling machine. It optimizes power consumption while maintaining high output levels, helping you lower operational costs while contributing to environmentally responsible manufacturing practices.

Partnering for Success
Choosing Micmachinery means aligning with a leader in beverage manufacturing technology. The MIC Automatic Canned Soft Drink Filling Machine embodies our dedication to quality and innovation. By integrating our advanced filling solutions into your production line, you can enhance your efficiency and elevate your business to new heights.

Invest in the future of your beverage manufacturing with the MIC Automatic Canned Soft Drink Filling Machine. Experience the blend of reliability, efficiency, and cutting-edge technology that will transform your production capabilities.

Empty can depalletizer


Automatic empty aluminum cans depalletizer is mainly used for automatic unloading of empty cans. The empty cans stacked on the pallet, from bottom to top layer of lift and push to the net conveyor and matching use with inline cans rinser which is the ideal equipment of medium-sized and large beverage manufacturers essential.

Inline can rinser / can washing machine


The inline can rinser is used to clean the empty cans by clean water before filling, we can add this can rinser in the beginning of filling line. The twist cages are customized with your sample cans. As long as the height and diameter of your cans are different, you need to buy the extra set twist cages to change.

Isobaric pressure / counter pressure filling system


“MIC” Isobaric pressuring filling does not create foaming during fill, unless beer is above 40°F. Counter Pressure filling leaves 1.27CM headspace, required by can manufacturers for product expansions and potential warming during distribution. Our machine will not foaming and it can keep low DO in the cans. Counter pressuring filling does not create foaming during filling process. Adopts high precision buffing process and food grade 304 stainless steel liquid tank. It will equipped with CIP connector as customer's demand.

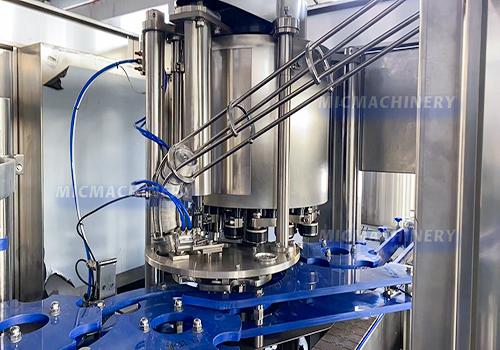

Aluminum lid seaming system


The “MIC” system is a mechanism actuated, cam-driven seamer with easily adjustable rollers that allow for precise adjustment to from seams that are within can-maker specifications. Seams are formed in under only a second, faster than any other system in its class. Through two past decade’s technology innovation and optimization, the result is revolutionary.

Mic 18-6 Parameters

Power
2.5Kw
Filling heads
18piece
Sealing heads
6piece
Production capacity

3000-6000CPH based on 330ml

Filling temperature
0-4 ℃
Filling pressure

Max 5bar/0.5Mpa

Can diameter range

Ф40-90MM

Can height

92-168MM

Dimension
2300*1700*1950mm
Weight
2500Kg

More Model And Speed Click

Model
MIC 12-1 MIC 18-1 MIC 18-6 MIC 24-6 MIC 32-8
Application Beer,  Carbonated Beverage, Gas Drinks, Cold Coffee, Sparking Water, Cider, Soda Water, Herbal Tea, Non-Carbonated Drinks And So On
Packing Type Aluminum Cans, Metal Cans, Tin Cans, Pet Cans Etc
Speed 1000-2000CPH 1000-2500CPH 3000-6000CPH 4000-8000CPH 6000-10000CPH
Filling Arrange 180ml, 250ml, 330ml, 355ml, 440ml, 500ml, 8oz, 12oz, 16oz, 1L and so on (0.1-1L)
Power 1.1kw 1.5kw 2.5kw 3.5kw 4.2kw
Size 1.8*1.3*1.95 (M) 1.9*1.3*1.95(M) 2.3*1.4*1.9(M) 2.58*1.7*1.8(M) 2.8*1.7*1.95(M)
Weight 1800KG 2100KG 2500KG 3000KG 3800(KG)
Name
Brand
Touch screen Siemens (Germany)
AC Contactor Schneider (France)
PLC

Mitsubishi (Japan) / Siemens (Optional)

Frequency changer

Schneider (France)

Air cylinder

AirTAC (China) / FESTO (Optional)

Solenoid valve

AirTAC (China) / FESTO (Optional)

Relay

Omron (Japan) / Schneider (France)

photoelectric sensor

Autonics (Korea) / Omron (Optional)

Proximity switch

Autonics / Omron (Optional)
