MIC 18-6 Carbonated Drink CSD Filler (3000-6000CPH, especially suitable for medium-size beverage factory)

MIC 18-6 Carbonated Drink CSD Filler (3000-6000CPH, especially suitable for medium-size beverage factory)
MIC 18-6 Carbonated Drink CSD Filler (3000-6000CPH, especially suitable for medium-size beverage factory)
MIC 18-6 Carbonated Drink CSD Filler (3000-6000CPH, especially suitable for medium-size beverage factory)
MIC 18-6 Carbonated Drink CSD Filler (3000-6000CPH, especially suitable for medium-size beverage factory)
Video
  • Introduction
  • Parameters
  • Setup List
  • Client Views

Mic 18-6 beer can filling machine adopts isobaric pressure filling system which is applicable for beer, carbonated beverage, soft drink, hard cider, soda water, sparkling water and other canned drinks (Cold filling temperature at 0-4 degrees Celsius)

If you also want to use the same machine to fill non-carbonated drinks is available. Through change the counter pressure filling valves to normal pressure filling valves then it will be suitable for filling non-carbonated beverages such as energy drink, fruit juice, cold brew coffee, vitamin water, herbal tea and so on.


Machine features:

1. Mic 18-6 beer can filling machine is in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit. Filling and seaming part is the overall designed, in order to ensure that both the absolute synchronization and coordination.


2. The machine adopts PLC, frequency converter, human machine interface controlling system, having the advanced controlling technologies, such as frequency control, no can no filling and so on.


3. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can equip CIP system according to the customers’ request. It is the preferred equipment for the small brewery and medium beverage plant


4. The main electric and pneumatic components of the machine are famous imported brands, and it also can be disposed according to client’s requirements.

MIC 18-6 Carbonated Drink CSD Filler (3000-6000CPH)

The MIC 18-6 Carbonated Drink CSD Filler is the ideal solution for medium-sized beverage factories, offering a production capacity of 3000 to 6000 bottles per hour. Engineered for precision and efficiency, this machine ensures consistent product quality while optimizing operational performance.

Key Features
Superior Carbonation Control: Advanced pressure-filling technology preserves carbonation levels, making it a premium carbonated beverage filling machine.
Integrated Design: Combines filling and capping processes for streamlined production.
Versatility: Handles a wide range of carbonated beverages, from sodas to sparkling water, making it a dependable carbonated drink filling machine.
Durable Construction: Built with stainless steel for hygiene, corrosion resistance, and long-term durability.
User-Friendly Operation: Features an intuitive control panel for simple operation and maintenance.
Energy Efficiency: Minimizes energy consumption while delivering high output.


Benefits

The MIC 18-6 is a robust carbonated soft drink filling machine that ensures:
High production capacity (up to 6000 bottles/hour).
Precise filling for consistent quality.
Reliable performance with reduced maintenance needs.
Cost-effective operations through energy-efficient technology.

Applications
Perfect for medium-sized beverage factories, this machine is designed for carbonated products such as:
Sodas
Sparkling water
Flavored drinks

Why Choose Micmachinery?
At Micmachinery, we combine innovation with expertise to deliver reliable beverage production solutions. The MIC 18-6 embodies our commitment to quality and performance, ensuring your factory operates at its best.

Contact Us
Learn more about the MIC 18-6 Carbonated Drink CSD Filler by contacting Micmachinery today. Optimize your production line with this state-of-the-art machine.

Empty can depalletizer


Automatic empty aluminum cans depalletizer is mainly used for automatic unloading of empty cans. The empty cans stacked on the pallet, from bottom to top layer of lift and push to the net conveyor and matching use with inline cans rinser which is the ideal equipment of medium-sized and large beverage manufacturers essential.

Inline can rinser / can washing machine


The inline can rinser is used to clean the empty cans by clean water before filling, we can add this can rinser in the beginning of filling line. The twist cages are customized with your sample cans. As long as the height and diameter of your cans are different, you need to buy the extra set twist cages to change.

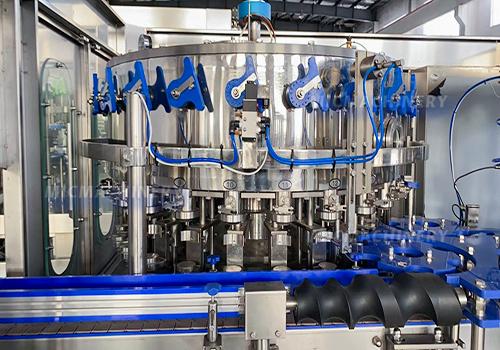

Isobaric pressure / counter pressure filling system


“MIC” Isobaric pressuring filling does not create foaming during fill, unless beer is above 40°F. Counter Pressure filling leaves 1.27CM headspace, required by can manufacturers for product expansions and potential warming during distribution. Our machine will not foaming and it can keep low DO in the cans. Counter pressuring filling does not create foaming during filling process. Adopts high precision buffing process and food grade 304 stainless steel liquid tank. It will equipped with CIP connector as customer's demand.

Liquid nitrogen doser


Normally, as for cold brew coffee, fruit juice and herbal tea filling, we will suggest our customer to add this liquid nitrogen doser to work with canning machine. In order to extend its shelf life and make sure it tastes good. It also makes the aluminum cans fuller and less prone to deformation.

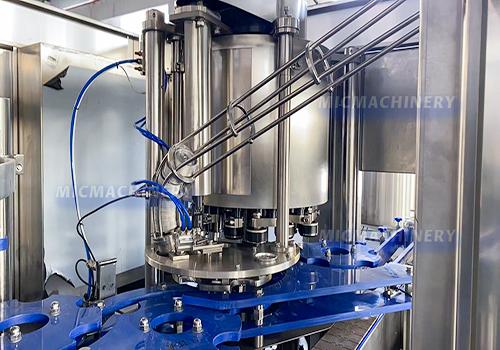

Aluminum lid seaming system


The “MIC” system is a mechanism actuated, cam-driven seamer with easily adjustable rollers that allow for precise adjustment to from seams that are within can-maker specifications. Seams are formed in under only a second, faster than any other system in its class. Through two past decade’s technology innovation and optimization, the result is revolutionary.

Mic 18-6 Parameters

Power
 2.5Kw
Filling heads
 18piece
Sealing heads
 6piece
Production capacity

3000-6000CPH based on 330ml

Filling temperature
 0-4 ℃
Filling pressure

Max 5bar/0.5Mpa

Can diameter range

Ф40-90MM

Can height

92-168MM

Dimension
 2300*1700*1950mm
Weight
 2500Kg

More Model And Speed Click

Model
 MIC 12-1 MIC 18-1 MIC 18-6 MIC 24-6 MIC 32-8
Application Beer,  Carbonated Beverage, Gas Drinks, Cold Coffee, Sparking Water, Cider, Soda Water, Herbal Tea, Non-Carbonated Drinks And So On
Packing Type Aluminum Cans, Metal Cans, Tin Cans, Pet Cans Etc
Speed 1000-2000CPH 1000-2500CPH 3000-6000CPH 4000-8000CPH 6000-10000CPH
Filling Arrange 180ml, 250ml, 330ml, 355ml, 440ml, 500ml, 8oz, 12oz, 16oz, 1L and so on (0.1-1L)
Power 1.1kw 1.5kw 2.5kw 3.5kw 4.2kw
Size 1.8*1.3*1.95 (M) 1.9*1.3*1.95(M) 2.3*1.4*1.9（M） 2.58*1.7*1.8（M） 2.8*1.7*1.95（M)
Weight 1800KG 2100KG 2500KG 3000KG 3800(KG)

1

Name

Brand

2

Push Button

Schneider France

3

Electromagnetic Contactor

Schneider France

4

Relays

Omron Japan

5

Frequency Converter

Siemens

6

Air Cylinder

AirTAC Taiwan

7

Electromagnetic Valve

AirTAC Taiwan

8

PLC Control System

Siemens

9

Touch Screen

Siemens

10

Photoelectric Switch

Autonics

11

Proximity Switch

Autonics

12

Reducer

Zhejiang Duoli China

13

Sealing Motor

Zhejiang Duoli China

14

Barometer

AirTAC Taiwan

15

Bearing

Harbin China
