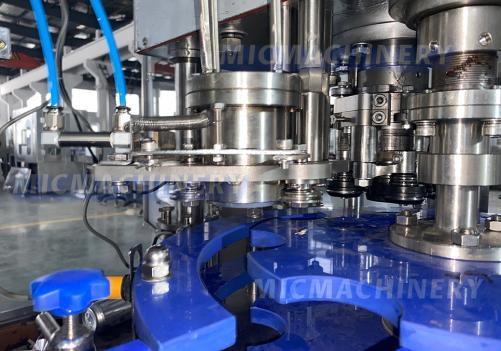

Mic 12-1 automatic beer canning machine adopts isobaric pressure filling system which is applicable for beer (Cold filling temperature at 0-4 degrees Celsius)
automatic beer canning machine is in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit. Filling and seaming part is the overall designed, in order to ensure that both the absolute synchronization and coordination.
It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can equip CIP system according to the customers’ request. It is the preferred equipment for the small brewery and medium beverage plant
The automatic beer canning machine represents a significant technological advancement in brewery operations, offering a streamlined and automated solution for packaging beer in cans. Designed to handle the complexities of canning, this cutting-edge equipment seamlessly integrates various components to create a highly efficient packaging line. By combining speed, precision, and reliability, the beer can packaging machine plays a crucial role in meeting the evolving demands of the modern brewing industry.
Inline can rinser / can washing machine
The inline can rinser is used to clean the empty cans by clean water before filling, we can add this can rinser in the beginning of filling line. The twist cages are customized with your sample cans. As long as the height and diameter of your cans are different, you need to buy the extra set twist cages to change.

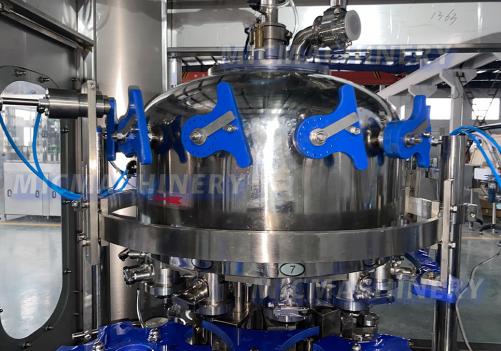

“MIC” Isobaric pressuring filling does not create foaming during fill, unless beer is above 40°F. Counter Pressure filling leaves 1.27CM headspace, required by can manufacturers for product expansions and potential warming during distribution. Our machine will not foaming and it can keep low DO in the cans. Counter pressuring filling does not create foaming during filling process. Adopts high precision buffing process and food grade 304 stainless steel liquid tank. It will equipped with CIP connector as customer's demand.
Aluminum lid seaming system
The “MIC” system is a mechanism actuated, cam-driven seamer with easily adjustable rollers that allow for precise adjustment to from seams that are within can-maker specifications. Seams are formed in under only a second, faster than any other system in its class. Through two past decade’s technology innovation and optimization, the result is revolutionary.
Mic 12-1 Parameters
Power |
1.1Kw |
Filling heads |
12piece |
Sealing heads |
1piece |
Production capacity |
1000-2000CPH based on 330ml |
Filling temperature |
0-4 ℃ |
Filling pressure |
Max 5bar/0.5Mpa |
Can diameter range |
Ф40-90MM |
Can height |
92-168MM |
Dimension |
1800*1300*1950mm |
Weight | 1800Kg |
More Model And Speed Click
Model |
MIC 12-1 | MIC 18-1 | MIC 18-6 | MIC 24-6 | MIC 32-8 |
Application | Beer, Carbonated Beverage, Gas Drinks, Cold Coffee, Sparking Water, Cider, Soda Water, Herbal Tea, Non-Carbonated Drinks And So On | ||||
Packing Type |
Aluminum Cans, Metal Cans, Tin Cans, Pet Cans Etc |
||||
Speed | 1000-2000CPH | 1000-2500CPH | 3000-6000CPH | 4000-8000CPH | 6000-10000CPH |
Filling Arrange |
180ml, 250ml, 330ml, 355ml, 440ml, 500ml, 8oz, 12oz, 16oz, 1L and so on (0.1-1L) |
||||
Power | 1.1kw | 1.5kw | 2.5kw | 3.5kw | 4.2kw |
Size | 1.8*1.3*1.95 (M) | 1.9*1.3*1.95(M) | 2.3*1.4*1.9(M) | 2.58*1.7*1.8(M) | 2.8*1.7*1.95(M) |
Weight | 1800KG | 2100KG | 2500KG | 3000KG | 3800(KG) |
1 |
Name |
Brand |
2 |
Push Button |
Schneider France |
3 |
Electromagnetic Contactor |
Schneider France |
4 |
Relays |
Omron Japan |
5 |
Frequency Converter |
Siemens |
6 |
Air Cylinder |
AirTAC Taiwan |
7 |
Electromagnetic Valve |
AirTAC Taiwan |
8 |
PLC Control System |
Siemens |
9 |
Touch Screen |
Siemens |
10 |
Photoelectric Switch |
Autonics |
11 |
Proximity Switch |
Autonics |
12 |
Reducer |
Zhejiang Duoli China |
13 |
Sealing Motor |
Zhejiang Duoli China |
14 |
Barometer |
AirTAC Taiwan |
15 |
Bearing |
Harbin China |
