MIC Manual Soda Filling Machine (1000-1500CPH)

MIC Manual Soda Filling Machine (1000-1500CPH)
MIC Manual Soda Filling Machine (1000-1500CPH)
MIC Manual Soda Filling Machine (1000-1500CPH)
Video
  • INTRODUCTION
  • PARAMETERS
  • CLIENT VIEWS

Automatic mobile portable small beer canning machine is very suitable for small brewery.  It has Co2 purge function, counter pressure filling system, lid loading system, lid seaming system, cover cleaning function.

Business items
1)Price is on the basis of FOB Shanghai
2)Payment term: 30% T/T deposit advanced, 70% T/T balance before shipment.
3)Delivery time: 45-50 working days after receiving samples and deposit
4)After-sale service: We provide one year guarantee, provide timely and effective services.
After the warranty period, we provide users with lifetime technical service and after-sales service.
5)PRICE VALID TIME: 60DAYS

A linear soda filling machine is a specialized equipment used for filling carbonated beverages, such as soda, sparkling water, and other fizzy drinks, into bottles in a linear motion. The machine is designed to fill bottles one by one as they move along a conveyor belt, allowing for high-speed, efficient, and accurate production of carbonated drinks. The linear soda filling machine is equipped with advanced features such as electronic sensors, programmable logic controllers, and human-machine interfaces that enable it to adjust to different bottle sizes and fill levels. With the increasing demand for carbonated drinks globally, the linear soda filling machine has become a popular investment for beverage companies seeking to increase their production capacity and meet consumer needs.

The manual soda filling machine offers a hands-on approach to beverage production, ideal for small-scale operations or businesses that require precise control over each filling process. Unlike its semi-automatic counterparts, the manual soda filling machine operates with more manual intervention, giving operators direct control over filling speeds and quantities. This level of control is particularly beneficial for handling unique bottle shapes or sizes that might not be suited to automated systems.


However, for businesses looking for a blend of efficiency and cost-effectiveness, the semi automatic soda filling machine presents a valuable alternative. The semi automatic soda filling machine integrates some automation with manual input, which helps streamline the filling process while still offering flexibility. This type of machine is designed to handle moderate production volumes with greater consistency compared to fully manual systems.


In terms of cost, the semi automatic soda filling machine price typically falls between manual and fully automatic systems. It provides a balance between affordability and efficiency, making it an attractive option for many businesses. While it requires less manual labor than the manual soda filling machine, it is often priced lower than fully automatic machines, making it a cost-effective solution for growing companies.


Overall, both the manual soda filling machine and the semi automatic soda filling machine offer unique advantages depending on your production needs. The semi automatic soda filling machine price reflects its ability to combine manual control with enhanced productivity, making it a versatile choice for various soda bottling operations.

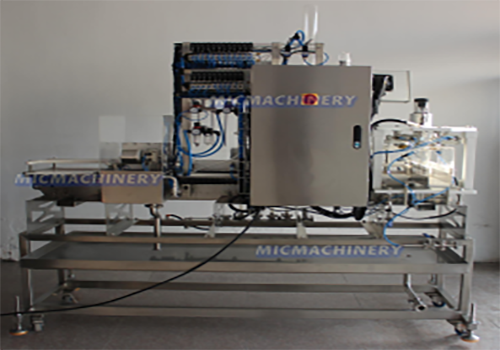

Linear Beer Can Filling Machine

This linear beer can filling machine has four filling heads, when the beer can enter into the machine, automatically filling. Then beer can enter capping station.

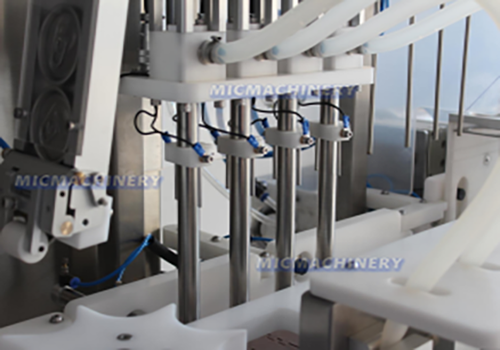

Filling Head

After pressing the button, the filling head enters the inside of the cans and fills the beer into the cans. Filling heads are easy to replace and clean.


Coveryor Station

The conveyor belt transports the bottles into the filling and capping system. When the machine fails, the conveyor belt will automatically stop working

Equipment Parameter

MIC 4-4-1 Beer Can Rinser Filler Seamer

1

Dimension (L*W*H)

2.00×0.91×1.85M

2

Equipment Weight

400KG

3

Packing Size (L*W*H)

2.20×1.15×2.05M

4

Packing Weight

550KG

5

Production Capacity

1200- 1500pcs/ H(330ml) 396-495L/ H

1000- 1200pcs/ H(500ml) 500-600L/ H

6

Voltage

380V-3 Phases-50Hz (Customized)

7

Power port

3P+ N+G

8

Power consumption

2.0-3.5KW

9

Main Material

SUS304

10

Beer Storage Tank Pressure

0.15-0.2Mpa (22-30PSI) 1.5" Tir-clamp

11

Compressed Air

0.5-0.7Mpa (75.0- 105PSI) OD:Ф10mm

12

Jacking Can Pressure

0.20-0.30Mpa (30-45PSI)

13

CO2 Pressure

0.15-0.2Mpa (22-30PSI) OD:Ф10mm

14

Flip- Rinse Pressure

0.15-0.20Mpa(22-30PSI) 1.5" Tir-clamp

15

Exit- Rinse Water Pressure

0.15-0.20Mpa(22-30PSI) 1.5" Tir-clamp
