Circulating Bottled Water Production Line – Advanced Bottling Technology

Zhangjiagang Mic Machinery presents the Circulating bottled water production line, a high-efficiency system designed for modern beverage factories. Built with precision and advanced automation, this production line provides a reliable solution for mineral water, purified water, and other bottled beverage applications.

At the heart of the system is the water bottle filling machine, engineered for speed, accuracy, and hygiene. Our innovative design ensures that each bottle is filled precisely, capped securely, and labeled professionally, meeting international quality and safety standards.

Key Features of the Production Line

High Efficiency: The water filling bottle machine delivers continuous operation with minimal downtime.
Cost-Effective: Competitive water bottle filling machine price ensures value for investment without compromising quality.
Automation Ready: Both automatic water bottle filling machine and fully automatic water bottle filling machine options are available to meet different production scales.
Versatility: Compatible with plastic bottles, glass bottles, and different cap types.
Hygienic Design: Built with stainless steel and advanced rinsing technology to maintain food safety standards.
Energy-Saving: Designed with circulating technology to reduce water and energy consumption during production.

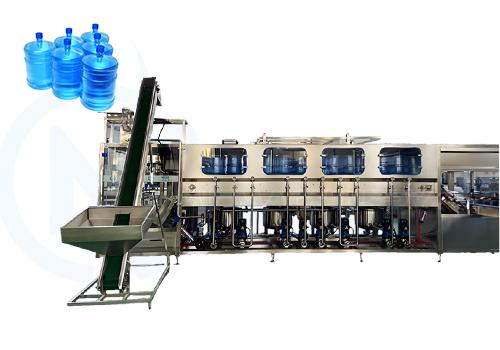

The appearance of the host is rectangular, with adjustable feet at the bottom for adjusting the height and level of the machine. The machine is equipped with a flushing system, a filling system, and a sealing system. The upper part of the conveyor chain is equipped with a photoelectric sensing device that matches the number of cylinders. The lower part of the machine is equipped with a control box.

This series of equipment is mainly used for the production of (PC) bottled water. The machine adopts a card barrel neck suspension working state design, which realizes the three working processes of flushing, filling, and sealing in one machine, shortens the contact time between materials and the outside world, and proposes high hygiene conditions, production capacity, and economic benefits.

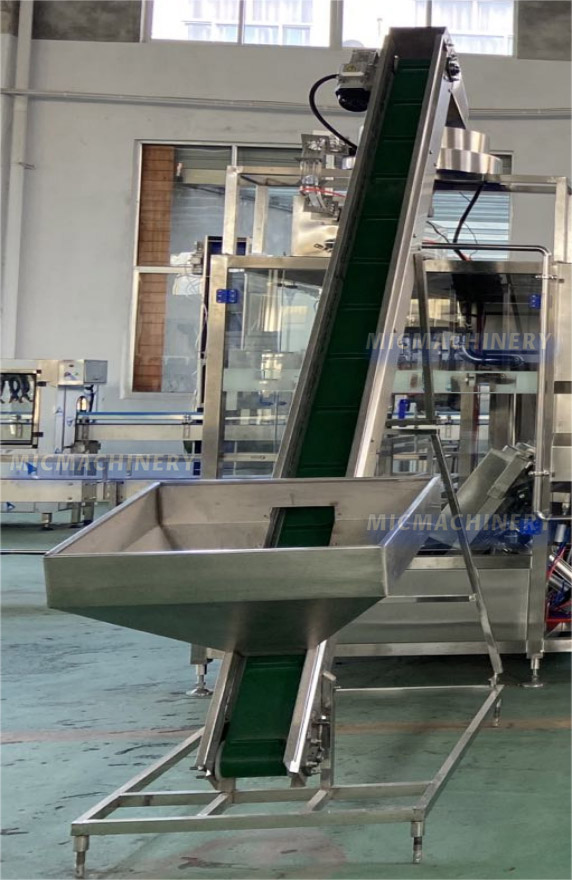

Automatic capping and trimming machine

The upper cover system mainly uses a belt operated cover conveying device to achieve the purpose of covering; The inclination angle of the lifting system belt can be adjusted to meet the needs of different heights of bottle caps for lid cleaning; The cap dropping system uses arc-shaped guide rails to accurately place the bottle cap at the bottle mouth, thus achieving integration with the fully automatic track type capping machine.

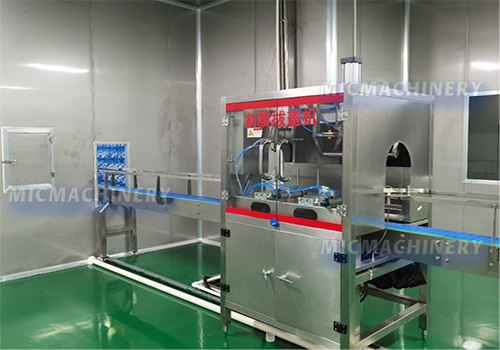

Automatic film cutting and cap removal machine

Bucket water film cutting and cap removal machine, all pipes and plates are made of high-quality SUS304 stainless steel, and the film cutting does not damage the bottle mouth, including film storage.
Adopting the latest two-piece pull-out head, it has good stability and high efficiency, with the function of kicking the bucket without unplugging the lid. For some buckets with poor fit between the lid and the bucket, if the lid is not unplugged, it will automatically detect and kick the bucket out of the conveyor belt to prevent it from flowing into the later process and causing the machine to get stuck.

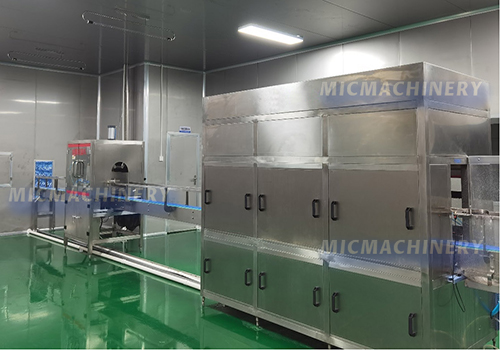

Automatic external brush machine

The inner brush is driven by the electric device and the cylinder to enter the large barrel. After everything is ready, the signal output commands the inner brush and the outer brush to start simultaneously. The main rotating brush runs in the opposite direction to the inner brush, and the barrel automatically completes the thorough cleaning of the barrel body, inner and outer walls, barrel neck, and barrel bottom under the action of the brush; The flushing water pump continuously sprays water or cleaning agent onto each brush, and is collected by the lower water collection tray before entering the cleaning agent water tank.

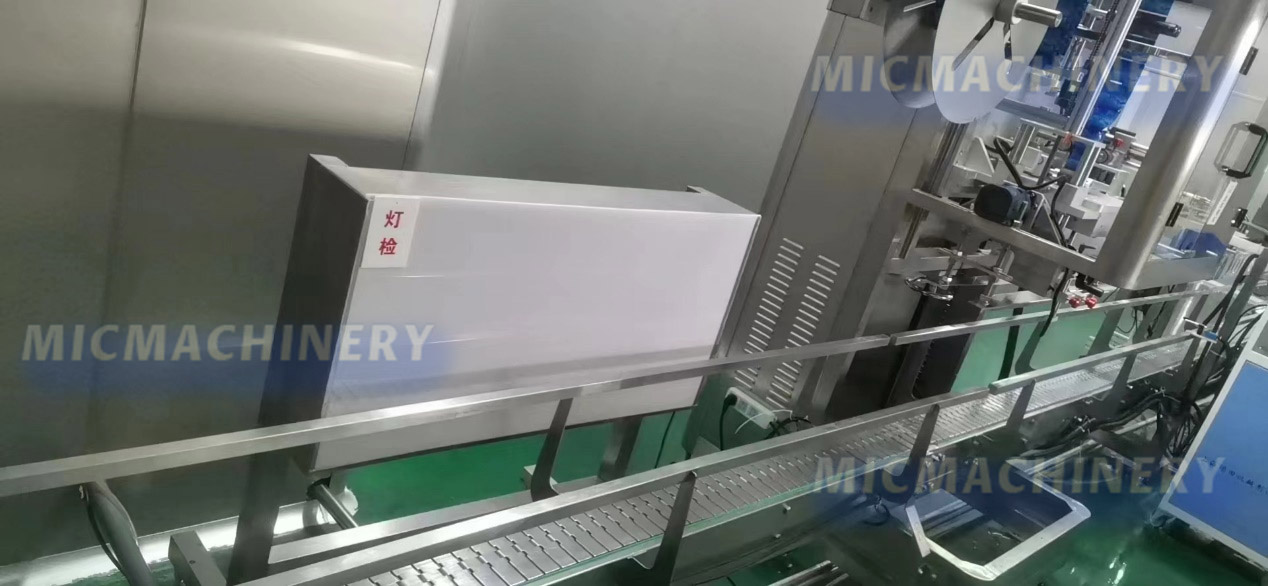

Lamp inspection machine

The LED light inspection box adopts LED light source and imported high transmittance light guide plate, with uniform light intensity distribution, no dark areas, no flicker, stable color temperature, making the screen brighter and softer. It is particularly effective in detecting chromaticity, turbidity, water leakage, visible objects to the naked eye, etc; It can be widely used in fields such as food, healthcare, electronics, etc.

Automatic heat shrink machine

This process is completed by a steam heat shrink machine: the water tank is connected to the finished water pipeline, the float type electronic water level controller sets the water level, and the electric heater heats the water in the kettle. When the preset value is reached (2 to 4 atmospheres), this process takes about 10-20 minutes. At this time, the steam temperature is 140-170 ℃, and the machine can start working. When the bucket passes under the steam scattering cover, it sprays downwards to heat the neck of the bucket, completing the heat shrink film.

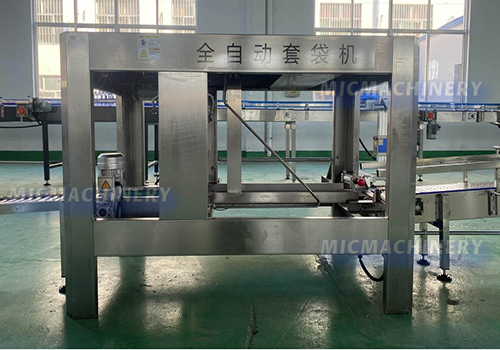

Automatic bagging machine

The filled bottled water is sent to the bagging machine through the conveying system, which is detected by the detection switch and automatically positioned and bagged. The packaged bags are tight, clean, hygienic, and have a uniform and beautiful shape. This fully automatic bagging machine has stable working performance and can improve packaging efficiency.
The automatic bagging machine can continuously perform bagging operations, greatly improving production efficiency;
Equipped with a precise positioning system, it can ensure that each bucket of water is neatly and beautifully bagged, improving the overall quality of the product;

Rated output	300 barrels per hour, pneumatic (5 gallons/18.9L)
Product	Bottled drinking water
Host workstation	two rows of fourteen tracks
Number of filling heads	2
Number of gland heads	1
Filling media	purified water, mineral water, mountain spring water, etc
Filling accuracy	± 1%
Applicable bucket type	5-gallon bucket (Ø 270 × 490 × Ø 56)
Maximum filling capacity	5 gallons/18.9L
Bucket lid	5-gallon smart lid (Ø 56 × 39+17 × 8)
Bucket flushing medium	finished water/chlorine dioxide
Filling method	pressure filling
Rinse water	1 ton/hour
Filling water	6 tons/hour
Transportation method	powered/unpowered conveyor chain transportation
