MIC 24-6 Beer Canning System (4000-8000CPH)

MIC 24-6 Beer Canning System (4000-8000CPH)
MIC 24-6 Beer Canning System (4000-8000CPH)
MIC 24-6 Beer Canning System (4000-8000CPH)
MIC 24-6 Beer Canning System (4000-8000CPH)
Video
  • Introduction
  • Parameters
  • Setup List
  • Client Views

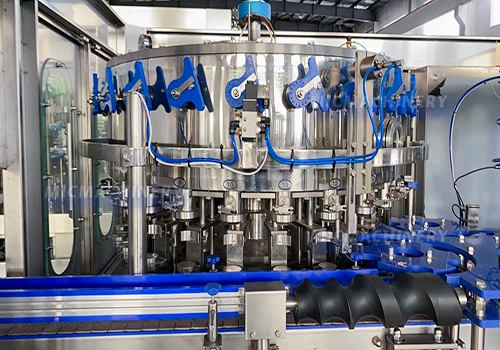

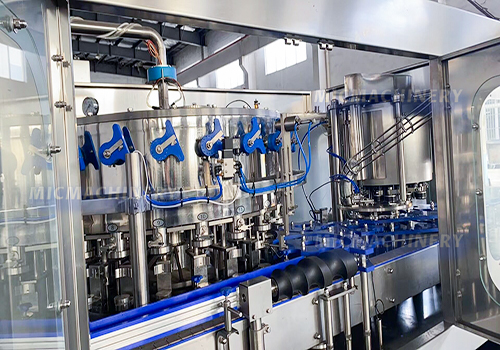

Mic 24-6 carbonated drinks filling machine adopts isobaric pressure filling system which is applicable for beer, carbonated beverage, soft drink, hard cider, soda water, sparkling water and other canned drinks (Cold filling temperature at 0-4 degrees Celsius) If you also want to use the same machine to fill non-carbonated drinks is available. Through change the counter pressure filling valves to normal pressure filling valves then it will be suitable for filling non-carbonated beverages such as energy drink, fruit juice, cold brew coffee, herbal tea and so on.

beer canning machine, beer can machine, beer can filling machine, beer filling machine, canning line, beer canning machine for sale, beer canning line


Machine features:

1. Mic 24-6 carbonated beverage can filling machine is in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit. Filling and seaming part is the overall designed, in order to ensure that both the absolute synchronization and coordination.


2. The machine adopts PLC, frequency converter, human machine interface controlling system, having the advanced controlling technologies, such as frequency control, no can no filling and so on.


3. Isobaric filling system, controlled by pressure, accuracy is +/-1%liquid level difference is not more than 2mm. (requires steady pressure and temperature at 0-4degrees Celsius).


4. Can seaming machine is qualified for Chinese seaming standard, and no air leakage at all.


5. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can equip CIP system according to the customers’ request. It is the preferred equipment for the small brewery and medium beverage plant


6. Aluminum can and metal can are both available working on our seaming machine, We use our own technical drawing and own processing machine, to make sure our seaming head quality and always easy to purchase.


7. If Cans stock on conveyor then sensor will inform PLC to stop the Can feeding.


8. About machine test and shipment, we are stick with real production test till all problem is fix and then ship out.


In the brewing industry, efficient packaging plays a key role in ensuring that beer reaches consumers in perfect condition. A reliable beer canning system is crucial for automating the complex process of canning, which includes rinsing, filling, sealing, and labeling beer cans. These systems integrate various components that work together to optimize production speed, reduce waste, and ensure consistent packaging quality. The performance of a beer canning system directly impacts the brewery's ability to meet market demand and maintain high production standards, making it an essential investment for any brewery looking to scale operations.


At the heart of any canning operation is the beer canning machine, which is designed to handle the critical tasks of filling and sealing cans with precision. The machine's performance is vital to ensuring accurate filling volumes, proper sealing, and maintaining product freshness. Modern beer canning machine are engineered to operate at high speeds, offering breweries the flexibility to adjust to different can sizes and production requirements. Whether for large-scale breweries or small operations, these machines are central to delivering high-quality, well-packaged beer efficiently.


For smaller breweries or craft beer producers, a small beer canning line offers a more compact and affordable solution. These lines are designed for lower-volume production but still provide the automation and precision needed to package beer efficiently. A small beer canning line integrates essential components like the filler, seamer, and labeler into a streamlined system, allowing breweries to enhance their packaging processes without the need for large-scale equipment. The performance of a small beer canning line ensures that even small breweries can maintain high production standards, meet niche market demands, and grow their operations effectively.


In summary, the performance of beer canning system, beer canning machine, and small beer canning line is critical to optimizing brewery operations. By investing in the right equipment, breweries can improve their production efficiency, ensure consistent product quality, and remain competitive in a growing market.

Looking for a high-speed and efficient canning line for your craft brewery? Micmachinery offers a craft beer canning line that can fill 4000-8000 cans per hour, making it perfect for small to medium-sized craft breweries.

Our craft beer canning line is designed for precision and consistency, allowing you to quickly and easily fill your beer cans with minimal product loss. It features a user-friendly interface, automatic controls, and a compact footprint, making it easy to integrate into your existing canning setup.

With our craft beer canning line, you can increase your canning production output while maintaining the quality of your beer packaging. It's also easy to clean and maintain, which helps to reduce downtime and increase productivity.

At Micmachinery, we're committed to providing high-quality craft beer canning lines that meet the needs of small to medium-sized breweries. Our machines are built to last and come with excellent customer service and technical support.

Contact us today to learn more about how our craft beer canning lines can help your brewery increase production and efficiency.

Empty can depalletizer


Automatic empty aluminum cans depalletizer is mainly used for automatic unloading of empty cans. The empty cans stacked on the pallet, from bottom to top layer of lift and push to the net conveyor and matching use with inline cans rinser which is the ideal equipment of medium-sized and large beverage manufacturers essential.

Inline can rinser / can washing machine


The inline can rinser is used to clean the empty cans by clean water before filling, we can add this can rinser in the beginning of filling line. The twist cages are customized with your sample cans. As long as the height and diameter of your cans are different, you need to buy the extra set twist cages to change.

Isobaric pressure / counter pressure filling system


“MIC” Isobaric pressuring filling does not create foaming during fill, unless beer is above 40°F. Counter Pressure filling leaves 1.27CM headspace, required by can manufacturers for product expansions and potential warming during distribution. Our machine will not foaming and it can keep low DO in the cans. Counter pressuring filling does not create foaming during filling process. Adopts high precision buffing process and food grade 304 stainless steel liquid tank. It will equipped with CIP connector as customer's demand.

Liquid nitrogen doser


Normally, as for cold brew coffee, fruit juice and herbal tea filling, we will suggest our customer to add this liquid nitrogen doser to work with canning machine. In order to extend its shelf life and make sure it tastes good. It also makes the aluminum cans fuller and less prone to deformation.

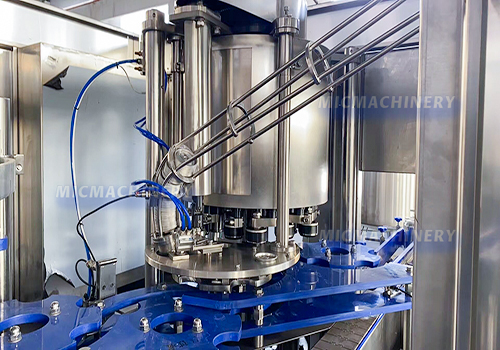

Aluminum lid seaming system


The “MIC” system is a mechanism actuated, cam-driven seamer with easily adjustable rollers that allow for precise adjustment to from seams that are within can-maker specifications. Seams are formed in under only a second, faster than any other system in its class. Through two past decade’s technology innovation and optimization, the result is revolutionary.

Mic 24-6 Parameters

Power
3.5Kw
Filling heads
24piece
Sealing heads
6piece
Production capacity

4000-8000CPH based on 330ml

Filling temperature
0-4℃
Filling pressure

Max 5bar/0.5Mpa

Can diameter range

Ф40-90MM

Bottle height
92-168MM
Dimension
2580*1700*1950mm
Weight
3000Kg



More Model And Speed Click

Model
MIC 12-1 MIC 18-1 MIC 18-6 MIC 24-6 MIC 32-8
Application Beer,  Carbonated Beverage, Gas Drinks, Cold Coffee, Sparking Water, Cider, Soda Water, Herbal Tea, Non-Carbonated Drinks And So On
Packing Type Aluminum Cans, Metal Cans, Tin Cans, Pet Cans Etc
Speed 1000-2000CPH 1000-2500CPH 3000-6000CPH 4000-8000CPH 6000-10000CPH
Filling Arrange 180ml, 250ml, 330ml, 355ml, 440ml, 500ml, 8oz, 12oz, 16oz, 1L and so on (0.1-1L)
Power 1.1kw 1.5kw 2.5kw 3.5kw 4.2kw
Size 1.8*1.3*1.95 (M) 1.9*1.3*1.95(M) 2.3*1.4*1.9(M) 2.58*1.7*1.8(M) 2.8*1.7*1.95(M)
Weight 1800KG 2100KG 2500KG 3000KG 3800(KG)

1

Name

Brand

2

Push Button

Schneider France

3

Electromagnetic Contactor

Schneider France

4

Relays

Omron Japan

5

Frequency Converter

Siemens

6

Air Cylinder

AirTAC Taiwan

7

Electromagnetic Valve

AirTAC Taiwan

8

PLC Control System

Siemens

9

Touch Screen

Siemens

10

Photoelectric Switch

Autonics

11

Proximity Switch

Autonics

12

Reducer

Zhejiang Duoli China

13

Sealing Motor

Zhejiang Duoli China

14

Barometer

AirTAC Taiwan

15

Bearing

Harbin China
