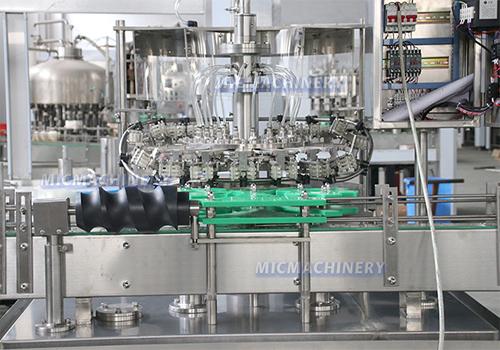

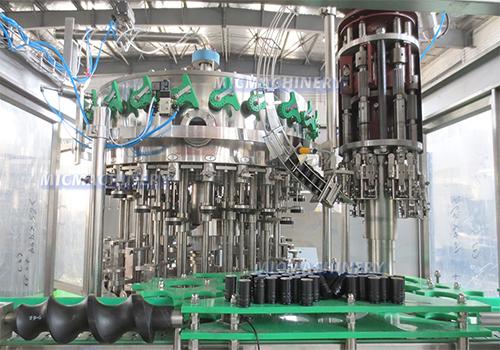

MIC 18-18-6 Beer Bottle Filling Equipment ( 3000-4000BPH )
MIC 18-18-6 Beer Bottle Filling Equipment ( 3000-4000BPH )
MIC 18-18-6 Beer Bottle Filling Equipment ( 3000-4000BPH )
MIC 18-18-6 Beer Bottle Filling Equipment ( 3000-4000BPH )
MIC 18-18-6 Beer Bottle Filling Equipment ( 3000-4000BPH )
Video
  • INTRODUCTION
  • TECHNICAL PARAMETER
  • SETUP LIST
  • CUSTOMER REVIEWS
This filling machinery mainly used for wine and sauce filling operation, this machine is combined of rinsing, filling capping;
Features of filling machinery:
This machine is mainly used for wine and sauce filling operation, this machine is combined of rinsing, filling capping; The whole procedure is full auto, and suitable for glass bottle and aluminum steel-proof caps for filling vodka, wine, sauce and etc. The applicable bottle type can be adjusted freely and conveniently. That is why the machine has more capacity and benefit compared other machine with same specification. This machine is adopted advanced programmable PLC, and make the machine running auto, and bottle input conveyor adopts transducer with speed adjustable, and bottle output conveyor adopts speed adjustable motor. Cooperation with transducer of main machine makes the bottle running smoothly and reliably, it is convenient to operate with high auto because of every part of machine is inspected to run by photoelectric detector. The machine is idea-preferred equipment for beverage makers.

Technical features

1, Filling valves adopt high-precision mechanic filling valve with mechanism of no bottle, no vacuumizing.

2, Out-placement mechanic structure. There is no spring in the valve.

3, There are two times of vacuumizing, equipping high pressure foam simulating device.

4, Driving adopts combination of open-type gear and gear. Adopt stepless frequency speed adjustment.

5, This machine equips automatic lubrication device.

6, Equip automatic washing device for broken bottles.

7, The lift of liquid tank, capping heads and control ring is electric to adapt to different height bottles.

8, The product level in the filling tank is controlled by electric probe to keep stable level and reliable filling.

9, Adopt PLC control.

If you're in the market for an automatic beer filling machine that can handle high volume production, look no further than our state-of-the-art equipment that can fill up to 3000-4000 bottles per hour. Our beer filling machines are designed to deliver reliable, consistent performance that meets the demands of even the busiest breweries.

With advanced features like automatic bottle feeding and filling, precise filling levels, and easy-to-use controls, our machines are the perfect solution for your beer bottling needs. Whether you're a small craft brewery or a large-scale operation, our machines can handle the job with ease.

Our beer filling machines are built to last, with high-quality components and durable construction that ensures many years of trouble-free operation. Plus, with our expert service and support, you can rest assured that you'll always have the help you need to keep your machines running smoothly.

So if you're looking for a reliable, high-quality beer filling machine that can handle your production needs, look no further than our automatic beer filling machines. Contact us today to learn more and get started.


Washing Part

Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

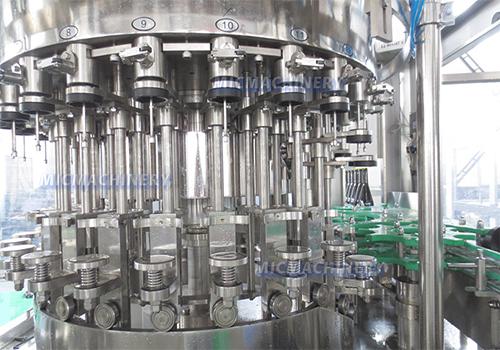

Filling Part

Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), filling pump, bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.
Rotary wheel fully made of stainless steel SUS 304. Filling valves are made of SUS316L. Filling valves are reasonably structured with accurate filling. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.


Capping Part

Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.

Model No.

XGF12-8-1

XGF12-12-1

XGF18-18-1

XGF18-18-6

Rinsing heads

12

12

18

18

Filling heads

8

12

18

18

Capping heads

1

1

1

6

Filling speed

300-500BPH

800-1500BPH

1000-2500BPH

3000-4000BPH

Model No.

XGF24-24-6

XGF32-24-6

XGF32-32-8

XGF72-72-8

Rinsing heads

24

32

32

72

Filling heads

24

24

32

72

Capping heads

6

6

8

8

Filling speed

3000-5000BPH

6000-8000BPH

8000-10000BPH

10000-25000BPH

Touch screen MITSUBISHI
Frequency converter MITSUBISHI
PLC MITSUBISHI
Contactor, breaker DELIXI
Proximity switch DELIXI
Photoelectric switch DELIXI
Bearing Harbin
Relay OMRON
Barometer AirTAC
Air cylinder AirTAC
Solenoid valve AirTAC
