MIC 18-18-1 Soda Bottling Plant Machine(Speed 800-1500BPH)
MIC 18-18-1 Soda Bottling Plant Machine(Speed 800-1500BPH)
MIC 18-18-1 Soda Bottling Plant Machine(Speed 800-1500BPH)
MIC 18-18-1 Soda Bottling Plant Machine(Speed 800-1500BPH)
MIC 18-18-1 Soda Bottling Plant Machine(Speed 800-1500BPH)
MIC 18-18-1 Soda Bottling Plant Machine(Speed 800-1500BPH)
Video
  • Introduction
  • Parameters
  • Setup List
  • Client Views

The series of products are the aseptic filling equipment for the pure beer, designed and developed on the basis of introducing the technology from Germany and combining the features in the production industry of pure beer in China. This machine is of good reliability of mechanical operation, perfect functions in rinsing, filling, capping, disinfecting and sterilizing, realizing filling the sterile beer into the sterile container in a sterile environment

1. This equipment is automatic washing filling capping three in one machine. Its of many advantages, such as compact structure, perfect control system and easy to be operated. Advanced touch screen and PLC control system makes man-machine communication true.

2. Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.

3. Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), filling pump, bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.

4. Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.

5. Main electrical components are all imported from world famous brands to guarantee excellent performance of the whole machine.

A soda bottling plant machine is a specialized piece of equipment used in the beverage industry to automate the entire soda bottling process. These machines can handle large volumes of liquid, filling and packaging carbonated beverages like soda, sparkling water, and energy drinks into bottles or cans. In this article, we will explore the key features and benefits of a soda bottling plant machine and how it can help beverage companies improve their production process.
1. High-Speed Production: Soda bottling plant machines are designed to handle high-speed production lines, with filling speeds of up to 1500 bottles per hour, allowing companies to produce large volumes of products quickly and efficiently.
2. Automated Operation: These machines can operate automatically, with minimal human intervention, reducing labor costs and improving efficiency.
3. Customizable: Soda bottling plant machines can be customized to fit different bottle shapes and sizes, making them a versatile option for companies in the beverage industry.
4. Accurate Filling: These machines use advanced technology to ensure accurate filling levels, reducing waste and improving product quality.
5. Hygienic: Soda bottling plant machines are designed to meet strict hygiene standards, with easy-to-clean surfaces and contact parts made from stainless steel.
6. Complete Solution: Soda bottling plant machines can handle all aspects of the bottling process, from bottle cleaning and filling to labeling and packaging, providing a complete solution for beverage companies.
7. Cost-Effective: Soda bottling plant machines are a cost-effective option for companies looking to increase their production capacity and reduce labor costs.
In summary, a soda bottling plant machine is an essential piece of equipment for companies in the beverage industry looking to improve their production process and increase efficiency. Its high-speed production, accuracy, hygiene, automation, and complete solution make it a cost-effective and reliable solution for filling and packaging carbonated beverages.

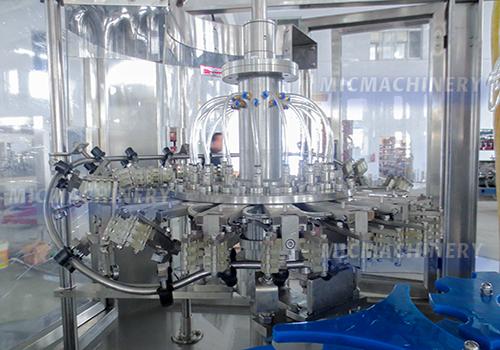

Washing Part

Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

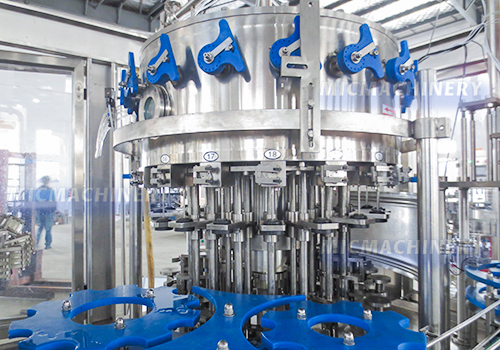

Filling Part

Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), filling pump, bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.
Rotary wheel fully made of stainless steel SUS 304. Filling valves are made of SUS316L. Filling valves are reasonably structured with accurate filling. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

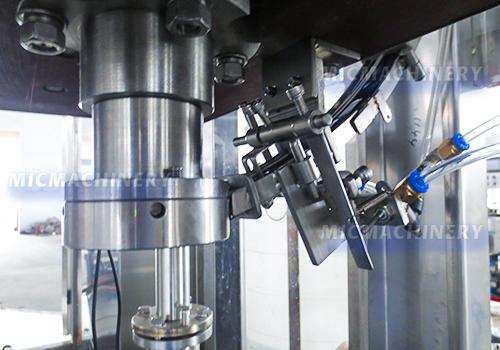

Capping Part

Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.
Rising Heads
 18 Pieces
Filling Heads 18 Pieces
Capping Heads 1 Piece
Filling SPeed 1000-2500 BPH

Touch Screen
 MITSUBISHI
Frequency Converter MITSUBISHI
PLC MITSUBISHI
Contactor, breaker DELIXI
Proximity Switch DELIXI
Photoelectric Switch DELIXI
Bearing Harbin
Relay OMRON
Barometer AirTAC
Air Cylinder AirTAC
Solenoid valve AirTAC
