  • INTRODUCTION
  • PARAMETER
  • CONFIGURATION

* Automatic sleeve application: A sleeve applicator machine can automatically apply sleeves to a variety of containers, saving time and labor compared to manual application.
* Flexible sleeve compatibility: These machines can typically handle a range of sleeve sizes and materials, allowing for flexibility in production and packaging.
* Easy changeover: Many sleeve applicator machines are designed for quick and easy changeover between different container and sleeve sizes, minimizing downtime and maximizing efficiency.
* High accuracy: Advanced sensors and controls can ensure precise sleeve placement and application, resulting in a professional-looking final product.
Benefits:
* Improved productivity: With automatic sleeve application and fast changeover, a sleeve applicator machine can help increase production speed and output.
* Consistency and quality: With accurate sleeve placement and application, a sleeve applicator machine can help ensure that every container in a production run has a consistent, high-quality appearance.
* Cost savings: By reducing the need for manual labor and improving efficiency, a sleeve applicator machine can help save on labor costs and boost overall profitability.
* Versatility: A sleeve applicator machine can handle a range of sleeve sizes and materials, allowing for flexibility in packaging and enabling companies to respond quickly to changing market demands.

Sleeve applicator machines are widely used in the packaging industry for applying shrink sleeves to various types of products such as bottles, cans, and containers. These machines offer a high level of accuracy and consistency in sleeve placement, making them an efficient solution for product labeling and branding. Sleeve applicator machines are available in different configurations, including automatic and semi-automatic models, to meet the specific needs of different production lines. They offer numerous benefits to manufacturers, including increased productivity, reduced labor costs, and improved product appearance. Overall, sleeve applicator machines are a reliable and cost-effective way to streamline the labeling process and enhance product presentation.

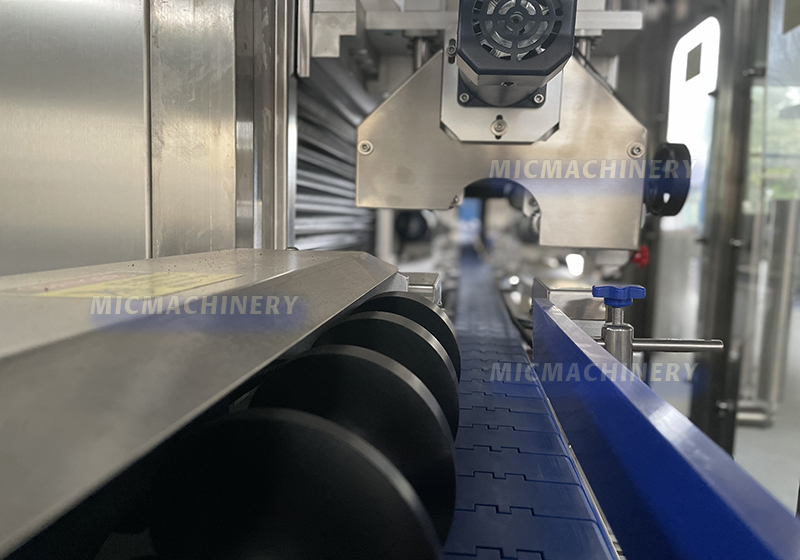

Bottle feeding device



The bottle feeding device in a shrink sleeve labeling machine is designed to ensure smooth, continuous, and precisely timed delivery of bottles into the labeling station. It typically consists of a motor-driven conveyor system, bottle spacing mechanism, and alignment guides. This unit plays a critical role in maintaining labeling accuracy and production efficiency by automatically adjusting the bottle spacing and orientation before labeling. It accommodates various bottle shapes and sizes and is fully synchronized with the labeling machine’s speed to prevent jams or misalignment. Built with stainless steel and wear-resistant components, the device is reliable, hygienic, and ideal for high-speed production lines.

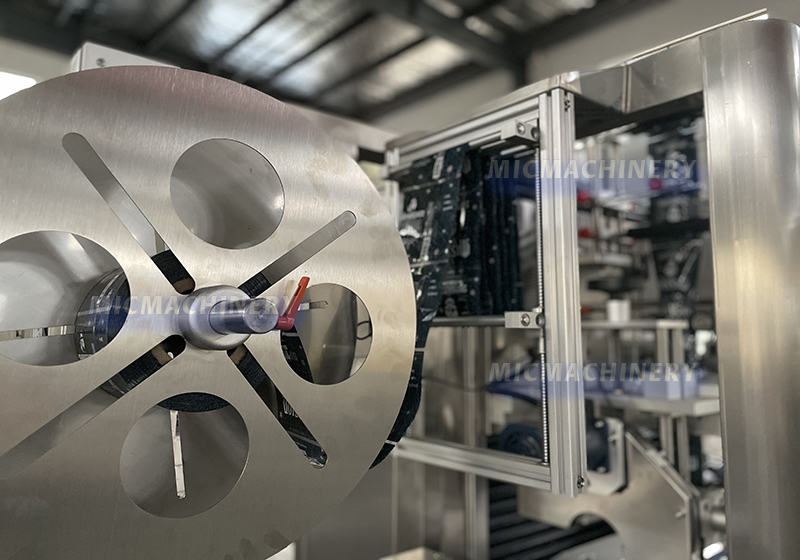

auto sleeving device


The auto sleeving device is the core component of a shrink sleeve labeling machine, responsible for accurately applying shrink film sleeves onto bottles or containers at high speed. It operates by feeding pre-cut or continuous sleeve material from a roll, precisely cutting and positioning each sleeve over the bottle’s neck or body using synchronized servo-controlled mechanisms. The system ensures smooth and consistent sleeve placement even at high speeds, minimizing misalignment or sleeve distortion. Designed for compatibility with round, square, or irregular-shaped containers, the device features an adjustable mandrel system and high-precision cutting blades. With its robust stainless-steel construction and easy integration into various production lines, the auto sleeving device offers exceptional reliability, accuracy, and operational efficiency for modern packaging needs.

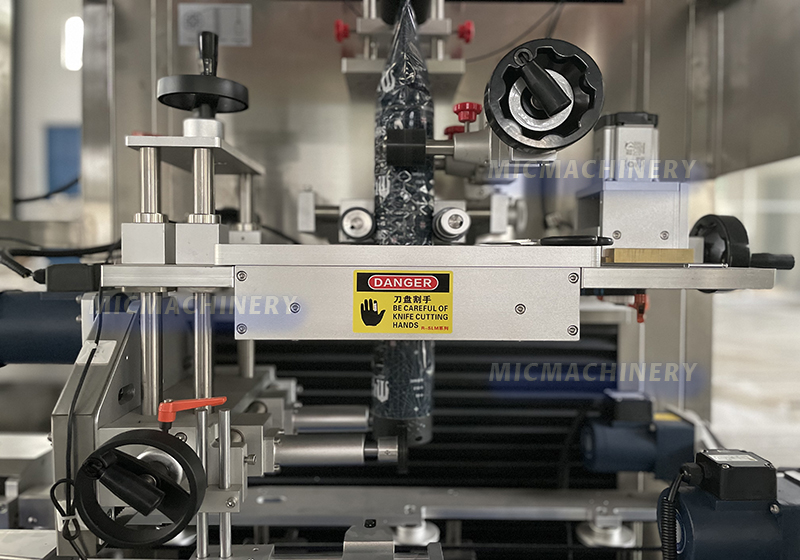

Send Label Wheel Introduction


The Send Label Wheel is a precision component in a shrink sleeve labeling machine responsible for feeding and guiding the label film accurately from the roll to the cutting unit. It works in coordination with sensors and servo motors to maintain consistent tension and label positioning, ensuring smooth and continuous operation without film slippage or stretching. The wheel is typically made from wear-resistant rubber or composite material to provide stable grip and minimal abrasion to the film. By synchronizing with the machine’s labeling cycle, the Send Label Wheel plays a key role in achieving high-speed, high-accuracy sleeving with minimal film waste and downtime. Its adjustable speed and pressure settings allow compatibility with various film materials and thicknesses.

Sleeve labeling machine for cans
Sleeve labeling machine for bottles

Input power

1.5KW

Input voltage

3380/220VAC

Productivity

Maximum 50 bottles/min (bottles/min)

Host size

2000Lx850Wx2000H

Applicable bottle diameter

50mm ~ 96mm

Applicable label height

30mm ~ 150mm

Applicable label thickness

0.03mm ~ 0.13mm

Applicable inner diameter of paper tube

5"~ 10" freely adjustable


Name

Amount

Unit

Brand

PLC

1

Tower

Siemens

Touch screen

1 Tower

Siemens

High-speed fiber optic sensor

1 Tower

Panasonic

High-speed fiber optic sensor

1 Tower
Panasonic

High-speed fiber optic sensor

1 Tower
Panasonic

High-speed fiber optic sensor

2 Tower
Panasonic

Servo motor for label delivery

1 Tower
Panasonic

Servo drive for label delivery

1 Tower
Panasonic

Cutter servo Motor

1 Tower
Panasonic

Cutter Servo Drive

1 Tower
Panasonic

Bottle divider

1 Tower
Panasonic

Inverter with bottle

1 Tower
Panasonic

Rack inverter

1 Tower Panasonic
