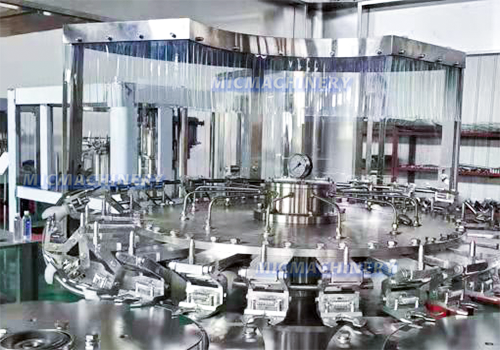

Washing Part
Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.

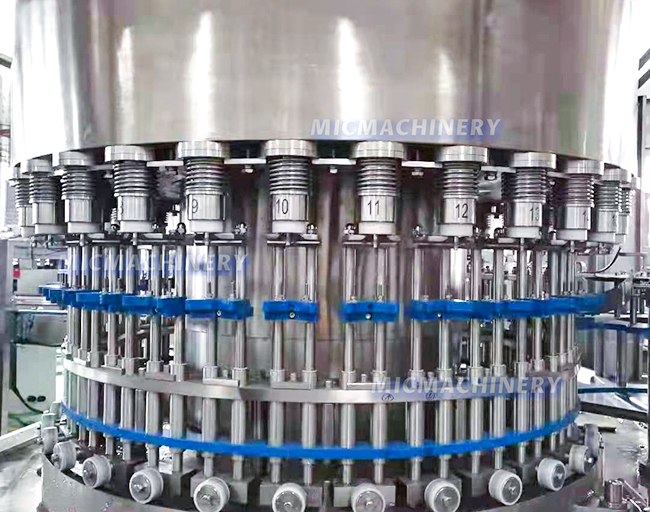

Filling Part
Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), filling pump, bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.

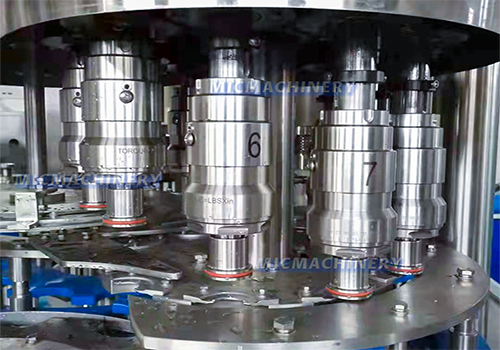

Capping Part
Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.Technical parameter | |
---|---|
Capacity | 8000-10000b/h(500ml) |
Filling volume | 200ml-2000ml (standard filling) Can be adjusted |
Filling material | Juice |
Standard bottles | PET bottle, |
Diameter of bottle: Φ50~Φ110mm | |
Height of bottle: 150-320mm | |
Filling: | hot filling under constant pressure |
Filling temperature | 87+-5℃ |
Compressed air pressure | 0.3-0.7 M pa |
Rinsing water pressure | 0.2-0.25 M pa |
Rinsing water | Aseptic water |
Total power consumption | 7kw |
Power | 380V, 50Hz, 3 phase(according to customer’s requirement) |
Suitable cap | standard plastic cap with screw thread |
overall dimensions | 3000x2200x2300mm |
weight | 5500 kg |
No. | Name | Brands | |
---|---|---|---|
1 | Frequency converter | Siemens | Germany |
2 | PLC | Siemens | Japan |
3 | Touch screen | Siemens orTaiwan | Germany orTaiwan |
4 | Contactor | Siemens | Germany |
5 | Thermal relay | Siemens | Germany |
6 | Air switch | Schneider | France |
7 | Proximity switch | OMRON | Japan |
8 | The photoelectric switch | OMRON | Japan |
