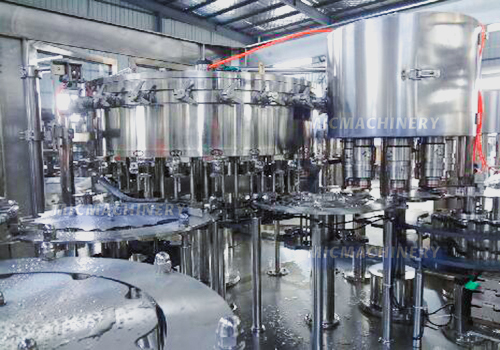

MIC 18-18-6 type PET bottle washing ,filling , capping machinery, it is produced on the basic of learning advanced technology of the similar production in international market and our experience for many years.

It is safe, easy operation and reliable.

It is suitable for filling and capping carbonated beverage such as beer, CSD, etc. It is equipped the advanced device, electrical equipment, and pneumatic control technology. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can be equipped long-distance control system. It is the preferred equipment for the medium beer and beverage plant.

1. Wholly sealed widow structure which is beautiful, concise, easy and highly operated;
2. Cycling tank design with precision polishing inside;
3.High precision and large flow rate filling valves to meet productive requirement;

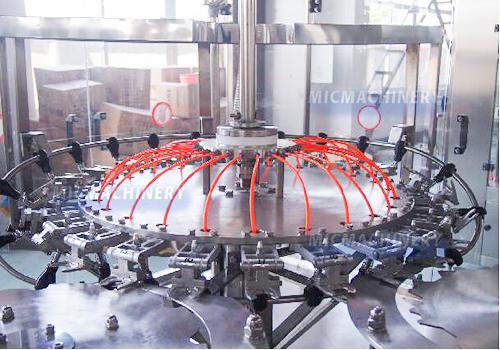

4. Perfect stainless steel bottle gripper of rinsing avoids the secondary contamination by no touch with the bottle screw parts.
5. It is equipped with high speed filling valve of high precision filling.
6. The capping head adopts constant magnetic torque device to ensure the high capping quality without damage. High efficient cap settling system, cap feeding system and no bottle no cap system make the whole capping system perfect.
7. It adopts spiral descent fashion for the support plate for bottle bottom at the outlet thumb wheel. It removes the need of adjusting the inlet bottle height for change bottle models.
8. This carbonated beverage filling machine adopts advanced PLC control and touch screen. The key electric elements are from international famous brand.

In the ever-evolving packaging industry, efficiency and performance are critical to maintaining a competitive edge. For manufacturers working with PET (Polyethylene Terephthalate) and plastic bottles, finding high-quality solutions for bottling, packing, and filling is essential. This article will focus on three key technologies—PET bottling line, plastic bottle packing machine, and PET bottle filler—highlighting their performance and importance in modern production.


A PET bottling line is an integrated system designed for the mass production of products that require PET bottle packaging. This system encompasses every step of the bottling process, from bottle production, cleaning, and filling, to capping, labeling, and packing. One of the primary performance metrics of a PET bottling line is its ability to maintain high-speed production while ensuring the accuracy and quality of each bottle. Equipped with advanced automation, these lines reduce manual handling, ensuring consistent bottle fills, minimizing waste, and significantly improving throughput. For industries such as beverages, personal care products, and chemicals, the efficiency and reliability of a PET bottling line can make or break production targets.


A plastic bottle packing machine is an essential piece of equipment for industries that rely on plastic packaging. Its role in the production line is to securely pack plastic bottles after they have been filled and sealed, preparing them for distribution. The performance of a plastic bottle packing machine is defined by its speed, precision, and adaptability to different bottle shapes and sizes. Automated packing systems can include technologies like shrink wrapping, palletizing, and carton packing, which help streamline the post-production process. With high-performance packing machines, companies can reduce manual labor, minimize packaging errors, and optimize storage and shipping operations, leading to reduced costs and faster time-to-market.


Finally, the PET bottle filler is a critical component in the bottling line, responsible for ensuring that each PET bottle is filled accurately and hygienically. PET bottle filler are used across industries such as beverages, food, and pharmaceuticals, where maintaining precise fill volumes is vital for both product quality and regulatory compliance. High-performance PET bottle filler are equipped with advanced features such as multi-head filling nozzles, automatic cleaning systems, and intelligent sensors to monitor fill levels. This ensures that the filling process is not only fast but also extremely precise, reducing spillage and ensuring product consistency. In automated systems, these fillers are integrated into larger production lines, where they work in harmony with other machines such as cappers, labelers, and packers to deliver a seamless and efficient production flow.


In conclusion, the PET bottling line, plastic bottle packing machine, and PET bottle filler are indispensable technologies for industries that rely on PET and plastic bottles. These machines significantly enhance production efficiency by automating the bottling, packing, and filling processes, ensuring consistent output, reduced manual labor, and optimized performance across the board. Companies investing in these technologies can expect higher throughput, reduced costs, and a smoother path to market for their products.

Filling Part

Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), filling pump, bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.

Rotary wheel fully made of stainless steel SUS 304. Filling valves are made of SUS316L. Filling valves are reasonably structured with accurate filling. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

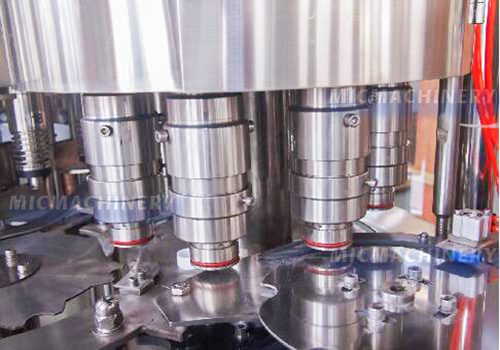

Capping Part

Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.

Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.

Filling Nozzle

18 Heads

Water Rinse Nozzle

18 Heads

Capping Head

6 Heads

Filling Volume

0.25-1.5L

Filling Speed

2000-4000 Bottles/h (500ML)

Air Pressure

0.6Mpa

Air Consume

0.15m³/min

Washing Water Pressure

0.2Mpa

Washing Water Consume

Less Than 1T/h

Main Motor Power

2.2KW

Total Power

5KW

Size

2500mm*1900mm*2300mm

Total Weight

3500KG

Voltage

220/380V/50HZ (Can Be Customized)

Control

PLC+Touch Screen

Material

SUS 304


1

Name

Brand

2

Push Button

Schneider France

3

Electromagnetic Contactor

Schneider France

4

Relays

Omron Japan

5

Frequency Converter

Siemens

6

Air Cylinder

AirTAC Taiwan

7

Electromagnetic Valve

AirTAC Taiwan

8

PLC Control System

Siemens

9

Touch Screen

Siemens

10

Photoelectric Switch

Autonics

11

Proximity Switch

Autonics

12

Reducer

Zhejiang Duoli China

13

Sealing Motor

Zhejiang Duoli China

14

Barometer

AirTAC Taiwan

15

Bearing

Harbin China
