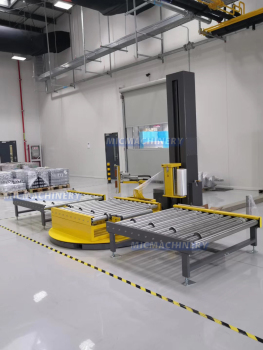

Discover the Online Wrapping Machine ZY-2000FZ

At Micmachinery, we are dedicated to revolutionizing your packaging processes with our state-of-the-art machinery. Introducing the Online Wrapping Machine ZY-2000FZ—a game-changer in automated packaging solutions.

Efficient and Reliable
The ZY-2000FZ is a fully automatic pallet wrapper designed to streamline your operations. This advanced pallet wrapping equipment ensures that your pallets are securely wrapped with minimal manual intervention, automating the entire process. As a result, you can drastically reduce labor costs while significantly increasing throughput.

Versatility at Its Best
One of the standout features of the ZY-2000FZ is its adaptability. This machine can handle various pallet sizes and shapes, making it ideal for diverse product ranges. It works seamlessly with a variety of pallet wrapping supplies, from stretch films to shrink wraps, allowing you to customize your packaging approach based on your unique needs.

User-Friendly Operation
Ease of use is paramount in the design of the ZY-2000FZ. Its intuitive interface allows operators to quickly set up and monitor the wrapping process, minimizing downtime and maximizing productivity. Additionally, comprehensive support and detailed documentation ensure your team is well-equipped to utilize the machine effectively.


Commitment to Quality

At Micmachinery, quality is our top priority. The ZY-2000FZ embodies our dedication to providing reliable and efficient solutions that stand the test of time. Investing in this machine means choosing excellence in packaging, ensuring your products are delivered securely and efficiently.

Competitive Pricing
When considering pallet stretch wrapping machine price, the ZY-2000FZ offers exceptional value for its advanced features. Contact us to learn more about pricing and how this investment can enhance your packaging operations.

Experience the Future of Automated Wrapping
Elevate your packaging capabilities with the Online Wrapping Machine ZY-2000FZ. Trust Micmachinery to provide the innovation and quality you need to keep your operations running smoothly.
Contact us today to discover how our solutions can transform your packaging processes!
ZY-2000FZ Online Wrapping Packaging Machine: Structure and Function

The ZY-2000FZ Online Wrapping Packaging Machine is designed to optimize your packaging operations. Below are its key features and functions:
1. Human-Machine Interface Control
The machine is equipped with a user-friendly human-machine interface that simplifies parameter setting. This interface enhances operational safety and features a PLC programmable control system along with a clear, button-type operation panel for automatic settings.
2. Adjustable Turntable Speed
Featuring a frequency converter, the ZY-2000FZ allows for a slow (soft) start. The turntable speed can be adjusted freely, ensuring that items remain stable and secure on the pallet throughout the wrapping process.
3. Photoelectric Detection Function
The built-in photoelectric switch automatically tracks the height of the package, allowing for precise and efficient wrapping.
4. Tension Adjustment Function
Users can easily adjust the tension of the wrapping film according to the specific characteristics of the goods, ensuring optimal packaging performance.
5. Local Reinforcement Function
For pallets requiring additional support, the local reinforcement function enables multiple layers of reinforcement wrapping at the top or bottom as needed.
6. Automatic Protection Function
In the event of unforeseen faults during operation, the pre-set protection device provides ultimate safety protection, minimizing potential risks.
7. Multifunctional Packaging Methods
The PLC programmable control integrates various packaging methods. Users can select between standard, single-layer, or reinforced packaging methods. The number of top and bottom winding layers, as well as reinforcement layers (0-9), can be easily set via the human-machine interface.
8. Automatic Reset Function
After each use, the machine can automatically restore the turntable to its initial state based on user preferences, facilitating easier forklift entry and exit without multiple maneuvers.
9. Simple Operation
The entire packaging process can be completed with a single press of the automatic operation button, streamlining your workflow.
10. Automatic Manual Conversion Function
This unique feature allows for seamless switching between automatic and manual modes, ensuring uninterrupted operation and maintaining normal production levels, even under special circumstances.

The ZY-2000FZ Online Wrapping Packaging Machine combines innovative technology with user-friendly design, making it an essential tool for enhancing your packaging efficiency.
Control System
Programmable Logic Controller (PLC):Allows for adjustable winding layers and cycles.
Photoelectric Switch:Automatically detects the height of the goods.
Automatic Film Control: Manages the processes of film up, film down, and film stroking.

Turntable Drive:

Drive Mechanism:Chain drive system for smooth operation.

Speed Control:Features slow start and slow stop for safety.
Reset Function:Automatic reset capabilities.
Speed Regulation:Adjustable turntable speed ranging from 0 to 15 RPM using frequency conversion.

Film System
Film Rack Design:Open-door design for easy film threading.
Pre-Stretching Mechanism:Power frequency conversion allows pre-stretching up to 250%.
Lifting Mechanism:Double chain traction system for enhanced stability.Closed walking device with self-lubricating features.
Speed Control:Frequency-controlled rising and falling speeds.Infinitely adjustable film feeding speed.
Winding Adjustment:Separate adjustments for the number of windings at the top and bottom.
Film Follow-Up System:Active film feeding mechanism to ensure consistent application.
Working Steps
1. Initial Setup:The turntable slows down.The clamping cylinder activates, positioning the plywood upright.The wrapping film begins to wrap around the plywood and pallet.
2. Clamping and Film Application:The turntable comes to a complete stop.The swing arm cylinder moves into position.Once in place, the magnetic switch sends an electric signal.The clamping cylinder engages, holding the plywood upright.The wrapping film is secured.The film brushing cylinder activates, pressing the wrapping film against the goods using a sponge tube on the swing arm.Simultaneously, the heating wire energizes to cut the wrapping film.
3. Return Mechanism:The swing arm returns to its original position.The magnetic switch for the swing arm cylinder sends an electric signal.The film brushing cylinder moves.The swing arm completes its return to the starting position.
4. New Cargo Handling:A new cargo pallet is positioned at the turntable.The turntable rotates and winds the film 2-3 times around the cargo.Plywood 1 and Plywood 2 return to their original positions.The previously clamped wrapping film is released.
5. Repetition of Process:The above steps are repeated for each new cargo pallet as it is packed.

Turntable diamete：

2000mm

Turntable height:

500mm

Conveying speed:

2~14r/min adjustable

Film frame lifting speed:

1~3m/min

Stretch film width:

500mm; thickness 12-35μ

Stretch film inner and outer diameter:

inner diameter 76mm, outer diameter maximum 350mm

Turntable load capacity:

1500 kg

Maximum packaging height:

2100mm (including pallet height)

Conveying motor power:

0.75kw

Turntable motor power:

1.5kw

Lifting motor power:

0.37kw

Pre-tensioning motor power:

0.23KW

Air pressure:

0.4-0.7MP

Power supply voltage:

220/50hz

Machine weight:

1200kg

Turntable speed:

0-15 rpm

Packing adaptability size:

L1200×W1200×H2100mm

Effective width of table conveyor:

1280mm

Turntable load-bearing capacity:

1500kg

1. Body：

Q235-5.0mm plate is bent and the surface is sprayed with plastic

2. Tripod:

80*40mm carbon steel square tube is welded and the surface is sprayed with plastic

3. Chain conveyor size:

2500*1700*500MM (layout according to the plan)

4. Table height:

500MM

5. Conveyor speed:

1-10 meters variable frequency adjustable

6. Motor:

Chengbang (Taiwan)

7. Chain material:

stainless steel

8. Chain:

Donghua chain

9. Inverter:

Delta (Taiwan)

10. Foot plate:

stainless steel

11. Sprocket:

carbon steel, black surface, tooth surface quenching treatment

PLC

(Delta)

(Taiwan)

Touch screen

(Wei Lun)

(Taiwan)

Lifting inverter

(Delta)

(Taiwan)

Turntable inverter

(Delta)

(Taiwan)

Pre-tension inverter

(Delta)

(Taiwan)

AC contactor SCHNEIDER

(Schneider)

(France)

Emergency stop switch SCHNEIDER

(Schneider)

(France)

Travel switch SCHNEIDER

(Schneider)

(France)

Photoelectric switch

(Pepperl+Fuchs)

(Germany)

Proximity switch

(Yang Ming)

(Taiwan)

Turntable reducer

(Chengbang)

(Taiwan)

Column lifting motor

(Jinlong)

(China)

Conveying reducer

(Chengbang)

(Taiwan)

Mold frame motor

(Chenggang)

(Taiwan)
