Optimizing Packaging with Liquid Nitrogen Dosing Machines

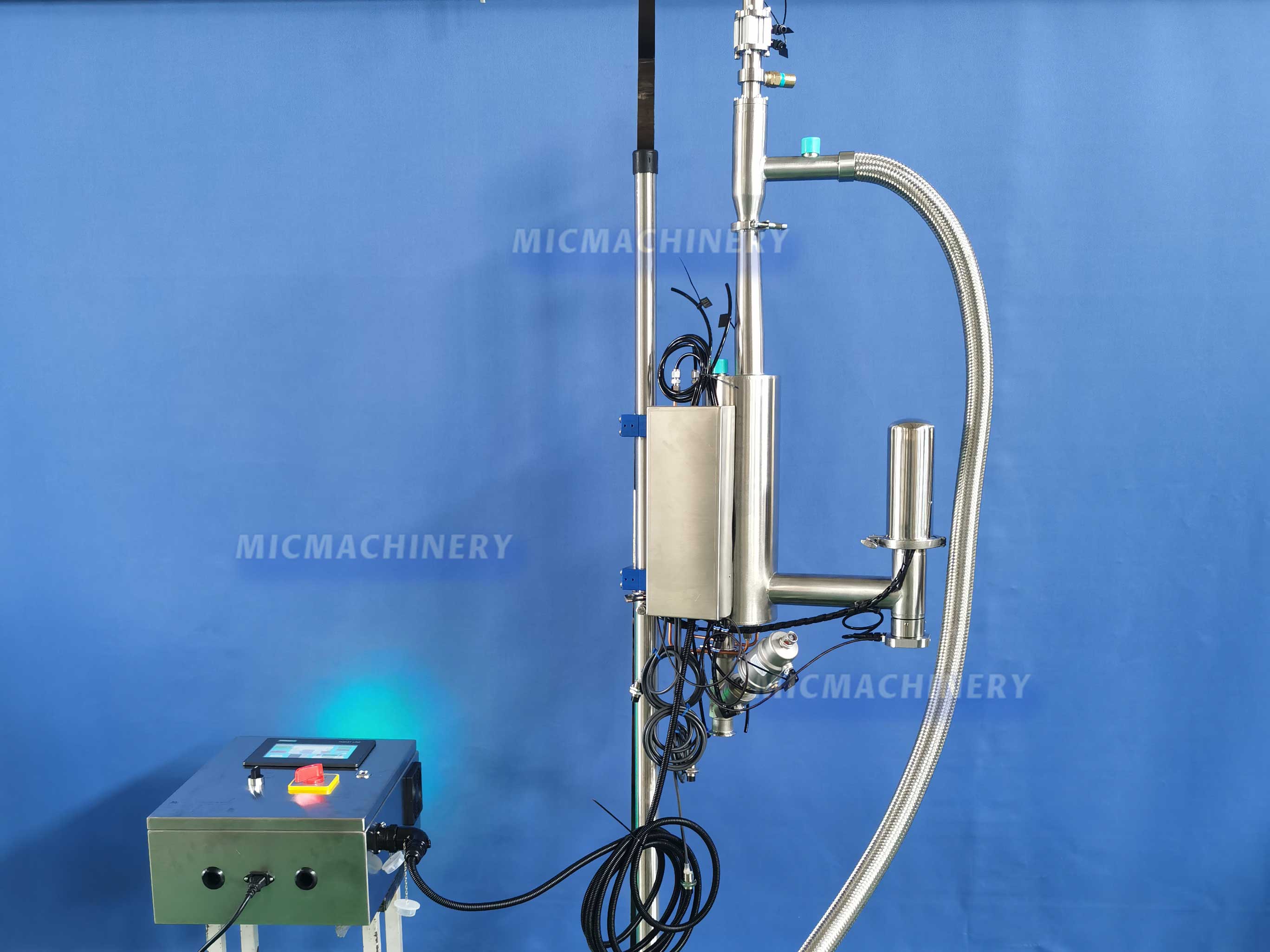

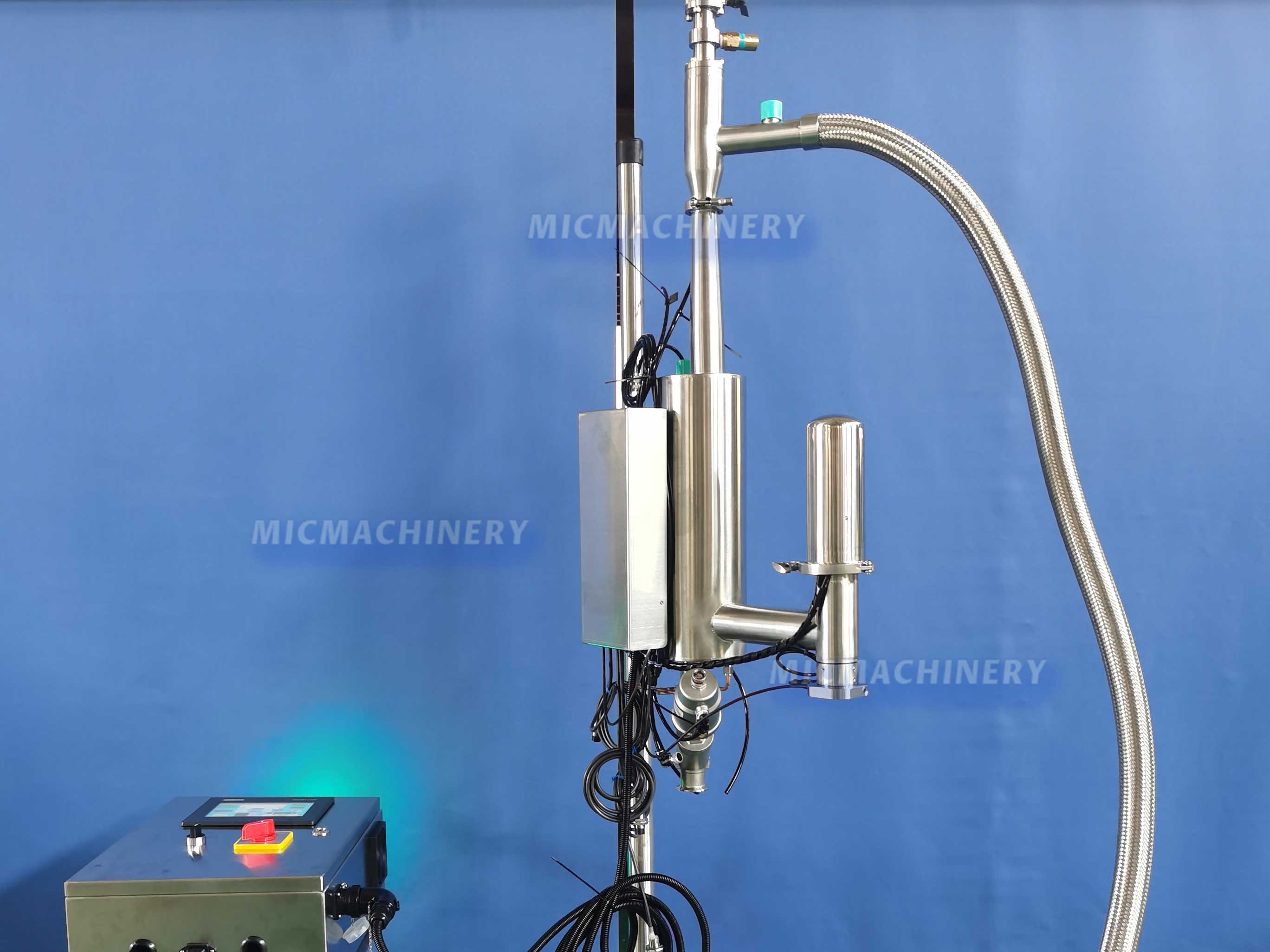

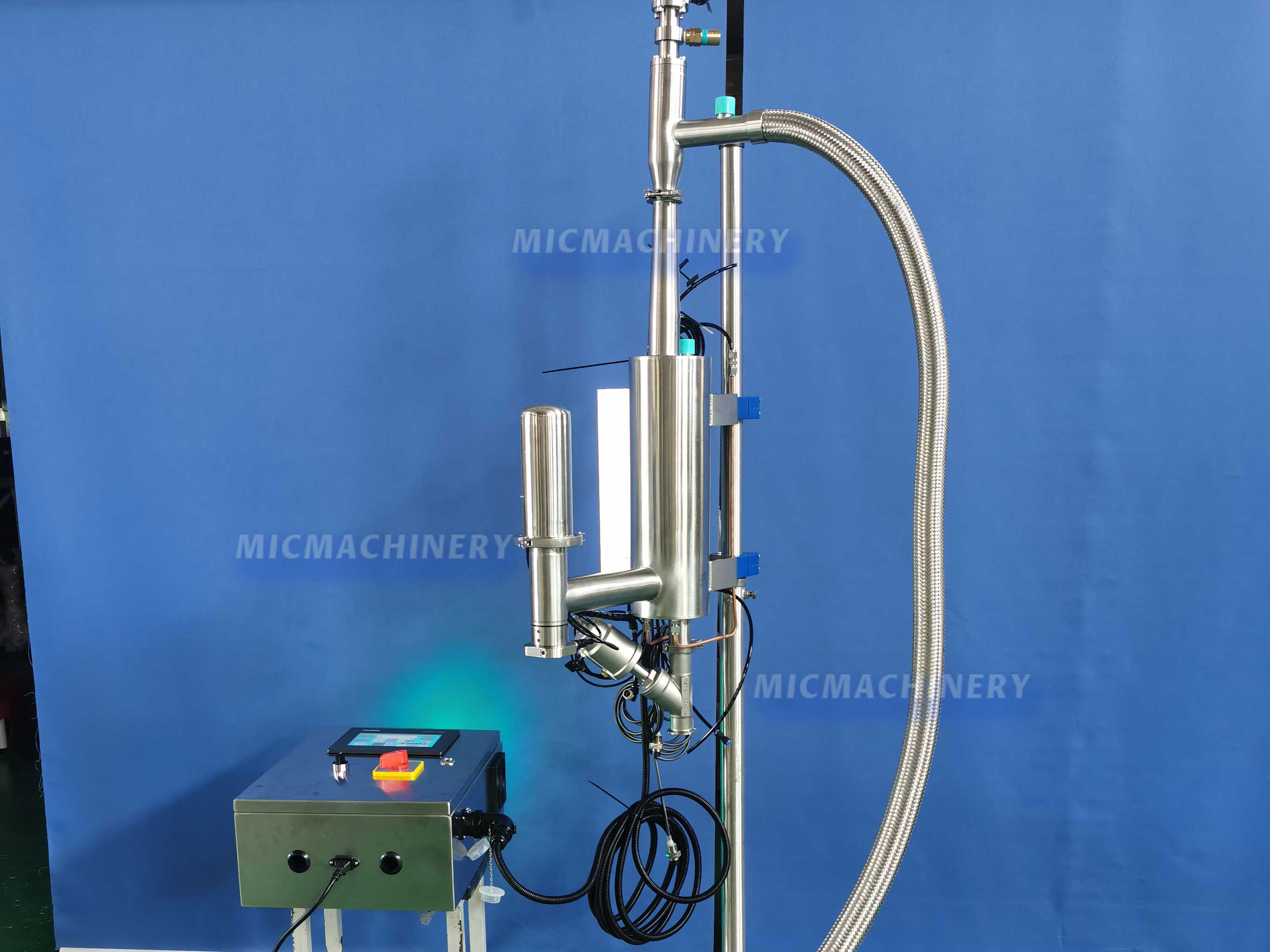

WYD-300 Liquid Nitrogen Dosing Machine is the latest liquid nitrogen dosing machine in China which uses the similar machines abroad for reference. It could control dosing volume accurately, no-container-no-liquid dosing, small size, easy installation and could coordinate with any filling production line. Control system comprises Siemens PLC and touch screen, all pipes adopt vacuum heat-insulated pipes which could ensure minimum consumption of liquid nitrogen and no frosting operation condition.
Liquid nitrogen gasify and volume expansion 700 times, extrude the air out and form vacuum in the can, increase the aluminum can/pet can internal pressure to prolong the canned beverage shelf life and keep good looking for better transportation and store.
1. No container no dose and interval dose method in low speed to reduce liquid nitrogen consumption; dosing valve is always open in high speed. Automatic detects high speed or low speed.
2. Vacuum & heat insulation protection.
3. Special nozzle care system effectively avoided nozzle frost and ice blockage phenomenon.
4. Liquid-gas separator ensures liquid nitrogen in a ultra cold state, improves liquid phase purity to make the dose more precision and steady.
5. Liquid nitrogen buffer function, effectively control liquid nitrogen bounce splash. Liquid nitrogen dosing amount is steady and ensures can pressure equality.
6.Filter (optional) 10μm to removes particulate pollution.
7. Precise dosing liquid nitrogen speed could reach to 600cpm, continuous dosing speed could reach to 800cpm.
8. Capacity adjust ability and effectively vacuum liquid nitrogen insulation pipe ensures minimum liquid nitrogen consumption.
9. Advanced dosing valve ensures transport pure and liquid nitrogen.
10. Lowest outlet pressure of dosing valve ensures minimum liquid nitrogen splash.
11. No frost operating condition.
12. Precise adjustability of dosing amount and dosing time.
13. Continuous self-monitoring through alarm indicator
14. PLC control/Touch screen/user-interface language selectivity.
15. Could connect liquid nitrogen vacuum and heat insulation pipe, also could provide a complete liquid supply system from liquid nitrogen storage tank to filling production line.
16. Small size and easy to install.
17. Diversity machine types ensures to suit different capacity production lines.
18. Apply to all different sizes pet bottles and thin-wall easy open cans production lines
Technology Parameter
|
||||
Application
|
Beer, cold coffee, herbal tea, fruit juice, non-carbonated drinks and so on
|
|||
Package
|
Aluminum can, tin can, pet can, plastic bottle
|
|||
Production speed
|
0-300 pcs per min |
|||
Suitable size
|
At will |
|||
Voltage
|
220V 50HZ 3 phase+N+G |
|||
Weight
|
32KG |
Main Configuration List
|
||||
PLC HMI
|
Siemens (Germany)
|
|||
Touch screen
|
Siemens (Germany)
|
|||
Solenoid valve
|
AirTAC (Taiwan, China)
|
|||
Proximity Switch
|
Omron (Japan)
|
|||
Temperature control
|
Omron (Japan)
|
|||
High speed dosing valve
|
MAC (USA)
|
|||
Dosing valve core
|
Germany
|
|||
Titanium filter stick
|
Germany
|
