MVR-DTB Continuous Crystallizer

Achieve Unmatched Control and Efficiency with Our MVR-DTB Continuous Crystallizer

For processes demanding precise crystal specifications and superior operational economy, look no further than our advanced MVR-DTB continuous crystallizer. This system represents the pinnacle of crystallization technology, merging the unparalleled energy efficiency of Mechanical Vapor Recompression (MVR) with the exceptional classification and control of the Draft Tube Baffle (DTB) vessel.

As a premier example of continuous crystallizer equipment, the MVR-DTB continuous crystallizer is engineered for rigorous, around-the-clock operation. It delivers a consistent and uniform crystal product while slashing energy consumption. The MVR system recovers and reuses vapor latent heat, dramatically reducing steam requirements, while the DTB design provides an internal classification zone to precisely separate and remove fine crystals, ensuring only the desired product size is discharged.

Key Features and Benefits:

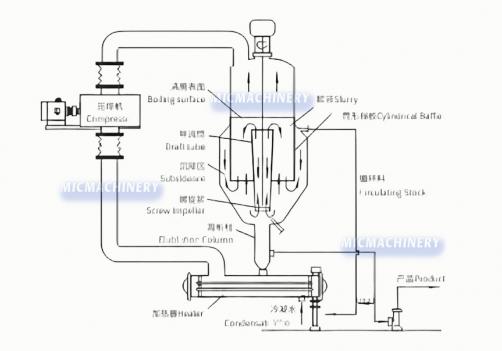

• Precise Crystal Size Control: The internal draft tube and baffle create a controlled circulation loop, while an elutriation leg allows for fines destruction and optimal crystal growth, resulting in a narrow, uniform Crystal Size Distribution (CSD).

• Maximum Energy Efficiency: By integrating MVR technology, this continuous crystallizer can reduce energy consumption by up to 90% compared to traditional multi-effect evaporators, offering a rapid return on investment.

• Superior Operational Stability: Designed as robust continuous crystallizer equipment, the MVR-DTB system maintains steady-state conditions for extended periods, ensuring consistent product quality, higher throughput, and reduced operator intervention.

• Handling of Delicate Crystals: The gentle, guided circulation within the DTB vessel minimizes mechanical shear, making this MVR-DTB continuous crystallizer ideal for producing large, yet friable crystals that might be damaged in other crystallizer types.

• Reduced Scaling & Fouling: The efficient fines removal system helps minimize secondary nucleation and scaling on heat exchanger surfaces, leading to longer production cycles and reduced maintenance.

Ideal Applications:

This versatile crystallizer is perfectly suited for demanding applications across a wide range of industries, including:

• Chemical Processing (e.g., ammonium sulfate, potassium sulfate, adipic acid)

• Fertilizer Production

• Pharmaceutical and Fine Chemicals

• Food Grade Salts and Organic Acids

• Environmental and ZLD (Zero Liquid Discharge) Systems

Engineer a Superior Product with Confidence

When your process requires exacting crystal specifications and world-class energy performance, the MVR-DTB continuous crystallizer is the definitive solution. It is more than just continuous crystallizer equipment; it is a comprehensive system for maximizing yield, purity, and profitability.

Contact our engineering team today to discover how the MVR-DTB continuous crystallizer can be customized to optimize your specific crystallization process.
