MIC14-12-5 Soft Drink Pet Bottle Machine(3000-5000 BPH)

MIC14-12-5 Soft Drink Pet Bottle Machine(3000-5000 BPH)
Video
  • Introduction
  • Technical parameter
  • Configuration list
  • Customer Reviews
MIC14-12-5 Soft Drink PET Bottle Machine is a kind of professional filling machine for juice, mineral water, pure water which applies to PET bottle. It is made of high quality SUS304 stainless steel. Main components are processed precisely by CNC machine tool. The machine adopts advanced photo electricity to detect running status. No bottle no filling. It realize man-machine conversation because of applying touch screen for operation
1) Bottle is entered by air conveyor, the speed of bottle entering is fast and bottle shape isn’t changed because of adopting hanging clamping bottleneck way
2) Adopting clamping bottleneck way to wash bottle mouth and avoid touching screw mouth, adopting clamping bottleneck way in the whole conveying process. When bottle type changes, you need to change the board related with bottle diameter
3) Filling adopts cylinder feeding structure, filling valve adopts high filling speed and mass flow rate valve which control liquids level accurately and without loss.
4) Screw capper adopts French advanced technology which cans screw cap promptly when clamping bottle.
5) The PLC and transducer are chosen from international famous brand, such as OMRON, MITSUBISHI.
At Micmachinery, we proudly present the MIC14-12-5 Soft Drink PET Bottle Machine (3000-5000 BPH), a cutting-edge solution for beverage manufacturers aiming to streamline their production processes. This innovative drink bottling machine is engineered to handle a diverse array of soft drinks, ensuring high efficiency and consistent output.

Key Features:
High Capacity: Designed for performance, the MIC14-12-5 can fill between 3000 to 5000 bottles per hour. This capability allows you to meet high-demand production schedules effortlessly.

Advanced Filling Technology: Our soft drink filling machine employs precision filling systems that ensure accurate fill levels, reducing waste and enhancing product quality. Every bottle is filled to the exact specifications, maintaining your brand's reputation.

User-Friendly Design: The machine features an intuitive control panel, allowing operators to easily adjust settings and monitor operations. This ensures that even those with minimal technical expertise can manage the machine efficiently.

Durability and Hygiene: Built from high-quality materials, the MIC14-12-5 is designed for longevity and resilience. It meets stringent hygiene standards, ensuring that your products are bottled safely and securely.

Versatile Handling: This drink bottling machine accommodates various bottle sizes and shapes, making it adaptable to different product lines. Whether it’s carbonated soft drinks or flavored waters, the MIC14-12-5 can handle it all.

Conclusion
In essence, the MIC14-12-5 Soft Drink PET Bottle Machine is a testament to Micmachinery's commitment to quality and innovation. By integrating high-capacity production with user-friendly features and advanced technology, this machine is poised to enhance your beverage manufacturing operations. Discover how the MIC14-12-5 can transform your bottling process by contacting us today!
The Soft Drink PET Bottle Machine stands as a pinnacle of technological advancement in the manufacturing of PET bottles for soft drinks. With its state-of-the-art design and precision engineering, this machine offers unparalleled efficiency and accuracy throughout the production process. From the initial molding of the PET preforms to the final blowing and shaping of the bottles, this advanced equipment ensures consistent quality and uniformity, meeting the highest industry standards.

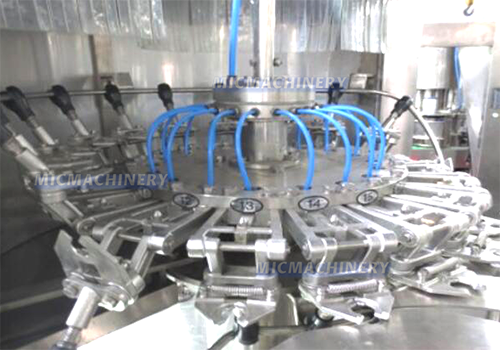

Washing Part

Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

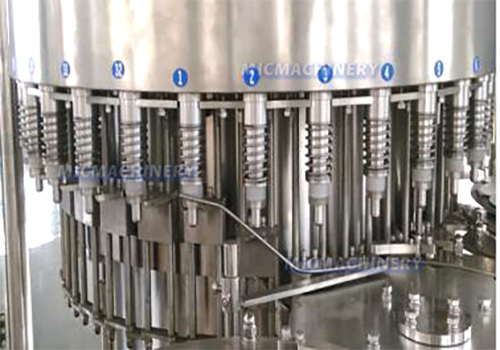

Filling Part

Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), filling pump, bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.
Rotary wheel fully made of stainless steel SUS 304. Filling valves are made of SUS316L. Filling valves are reasonably structured with accurate filling. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.


Capping Part

- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable,Defective rate ≤0.2%

Model

8-8-3

14-12-5

18-18-6

Application

Juice, tea, pure water, mineral water, energy drinks, coffee and etc.

Filling Way

Gravity Filling

Packing Type

PET/Plastic bottle

Production Capacity

2000-2500BPH

3000-5000BPH

5000-8000BPH

Powder

1.2KW

1.5KW

2.2KW

Weight

1500KG

2000KG

4000KG

Overall Dimensions(mm)

2260*1600*2600

2250*1650*2650

2850*2150*2700


No.

Name of parts

Brand

1

PLC

Mitsubishi Japan

2

Touch screen

WEINVIEW

3

Inverter

Siemens Germany

4

Low-voltage apparatus

Schneider France

5

Pneumatic components

AirTAC Taiwan

6

Bearing

China

7

Optical sensor

Omron Japan


Water Factor, Tirana Albania,  2012
Beer Canning Factory, Wales UK, 2017,03
