Automatic mobile portable carbonated beverage filler is very suitable for small brewery. It has Co2 purge function, counter pressure filling system, lid loading system, lid seaming system, cover cleaning function.
Business items
1)Price is on the basis of FOB Shanghai
2)Payment term: 30% T/T deposit advanced, 70% T/T balance before shipment.
3)Delivery time: 45-50 working days after receiving samples and deposit
4)After-sale service: We provide one year guarantee, provide timely and effective services.
After the warranty period, we provide users with lifetime technical service and after-sales service.
5)PRICE VALID TIME: 60DAYS
Durable and Low-Maintenance
Designed for long-term use, this carbonated beverage filling machine is built from high-quality materials that ensure durability and reliability. Routine maintenance is straightforward, and the machine's self-cleaning mechanisms help minimize downtime. This is especially beneficial for businesses that require high levels of efficiency and minimal disruptions.

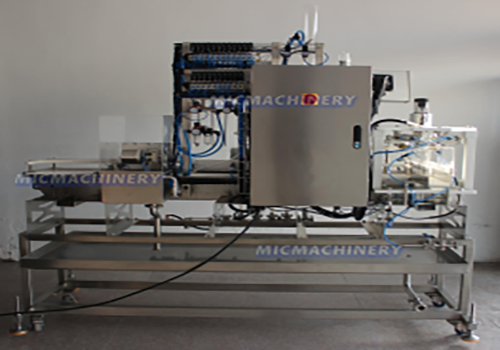

Carbonated Beverage Filling Machine
This linear beer can filling machine has four filling heads, when the beer can enter into the machine, automatically filling. Then beer can enter capping station.

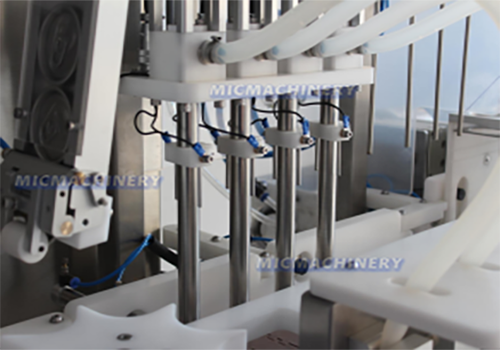

Filling Head
After pressing the button, the filling head enters the inside of the cans and fills the beer into the cans. Filling heads are easy to replace and clean.
Coveryor Station
The conveyor belt transports the bottles into the filling and capping system. When the machine fails, the conveyor belt will automatically stop working
Equipment Parameter |
MIC 4-4-1 Beer Can Rinser Filler Seamer |
|
1 |
Dimension (L*W*H) |
2.00×0.91×1.85M |
2 |
Equipment Weight |
400KG |
3 |
Packing Size (L*W*H) |
2.20×1.15×2.05M |
4 |
Packing Weight |
550KG |
5 |
Production Capacity |
1200- 1500pcs/ H(330ml) 396-495L/ H 1000- 1200pcs/ H(500ml) 500-600L/ H |
6 |
Voltage |
380V-3 Phases-50Hz (Customized) |
7 |
Power port |
3P+ N+G |
8 |
Power consumption |
2.0-3.5KW |
9 |
Main Material |
SUS304 |
10 |
Beer Storage Tank Pressure |
0.15-0.2Mpa (22-30PSI) 1.5" Tir-clamp |
11 |
Compressed Air |
0.5-0.7Mpa (75.0- 105PSI) OD:Ф10mm |
12 |
Jacking Can Pressure |
0.20-0.30Mpa (30-45PSI) |
13 |
CO2 Pressure |
0.15-0.2Mpa (22-30PSI) OD:Ф10mm |
14 |
Flip- Rinse Pressure |
0.15-0.20Mpa(22-30PSI) 1.5" Tir-clamp |
15 |
Exit- Rinse Water Pressure |
0.15-0.20Mpa(22-30PSI) 1.5" Tir-clamp |
