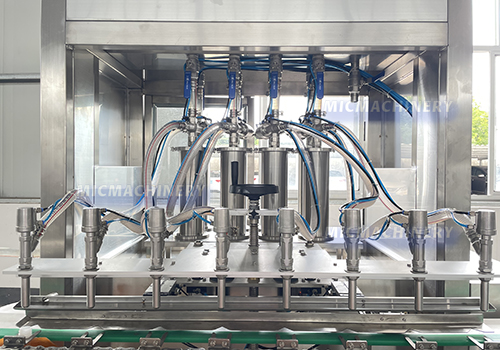

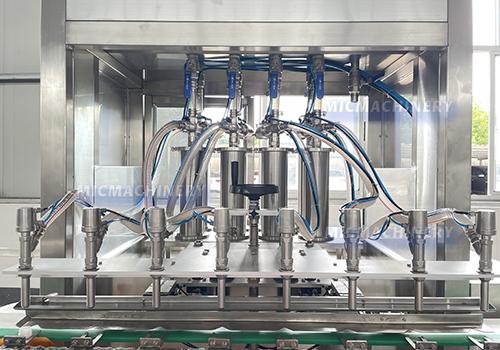

Filling Head
Utilizes servo motor drive and double screw rod drive to ensure stable filling with higher accuracy.

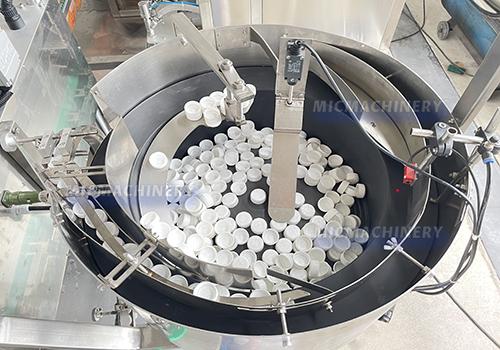

Cap Arranging Unit
It enables automatic filling, cap loading, and capping.

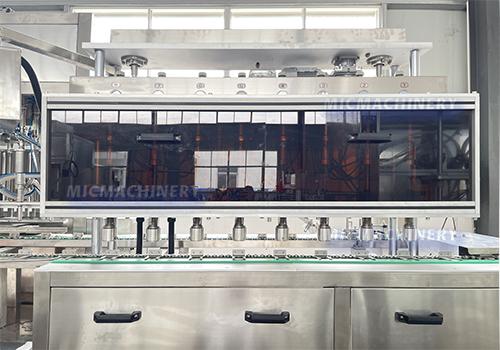

Capping Station
The machine operates reliably, boasts high production efficiency, and demonstrates strong adaptability.
Filling Range |
250-2000ml |
Voltage |
220v/380v |
Power |
4KW |
Filling Precision |
99% |
Filling Nozzles |
8 nozzles |
Filling Speed |
3000 BPH |
Dimension |
3800*1500*2200mm |
Weight |
1000kg |
Material |
SS304 |
Touch screen |
Xinjie |
PLC |
Schneider |
Solenoid valve |
AirTAC |
Optoelectronic system |
AUTONICS |
Differential switch |
Netherlands |
Air source treatment |
AirTAC |
Switching power |
MingWei |
Button and other low-voltage electrical appliances |
Schneider |
Alarm system |
Real-time fault alarm, important fault can automatically stop |
Servo motor |
TECO |
Ball screw |
Taiwan |
Function |
Filling the count |
Material |
316 stainless steel is used in contact with material, 304 stainless steel is used in other main parts. |
Sealing ring |
It is made of carbon tetrafluoro fibers with good anticorrosion, wear resistance and sealing. |
AC contactor |
Schneider |
Thermorelay |
Schneider |
Transducer |
Schneider |
Double clutch |
Custom |
Precision relief valve |
Lark |
Screw cap form |
Automatic cap sorting and capping |
One camera dual use |
Fillable Water Agent or Thickener Formula |
