small juice packing machine features:

1. This machine can finish : forming bag--measuring--material filling—sealing—counting—date code printing, all the work automatically;

2. Photoelectric and tracing system or computer system can be provided without your specific requirements.

3. The PLC controller has the advantages such as setting the length of the bag; the out put alarm and the speed and quantity with buttons;

4. This machine can be installed to code printer for 1-3 lines characters such as production and expiry date according to your special request.

5.Eye Mark System ,machine can cut complete logo.

6.Machine Stop Automaticlly if it is out of film.

7.Fine Packaging performance.low noies .clear sealing texture and strong sealing performacnce.

Applicable packing film:
Paper/PE, PT/PE, PET/AL/PE, BOPP/PE, Tea filter paper and other compound materials can be heat sealed.
At the core of the juice packaging machine are its advanced mechanisms and components, meticulously designed to ensure a seamless and precise packaging process. From bottle or can depalletizing and rinsing to filling, capping, labeling, and sealing, each stage of the packaging line is optimized to deliver consistent and reliable results. By minimizing human intervention and harnessing state-of-the-art technologies, juice manufacturers can achieve high-speed packaging operations, minimize product loss, and maintain the highest standards of product quality.

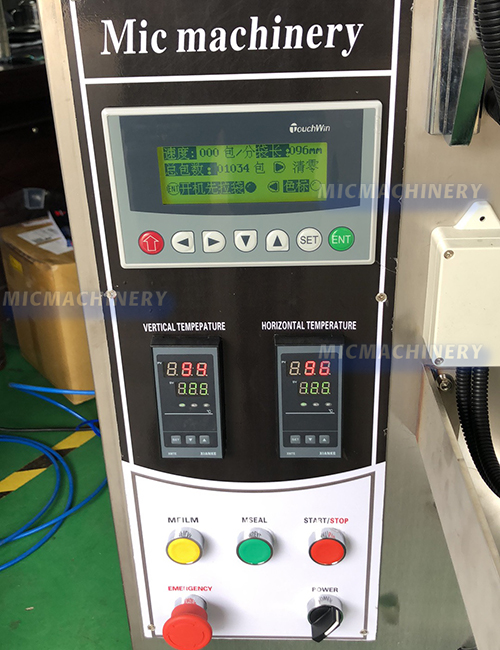

Control Panel

The control panel on the filling machine is the core of the machine,it consists of touch screen,power switch, emergency button You just need to press the corresponding button and the machine will follow the correct program.

The PLC controller has the advantages such as setting the length of the bag; the out put alarm and the speed and quantity with buttons;

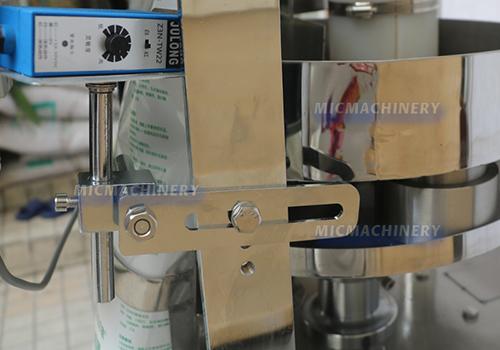

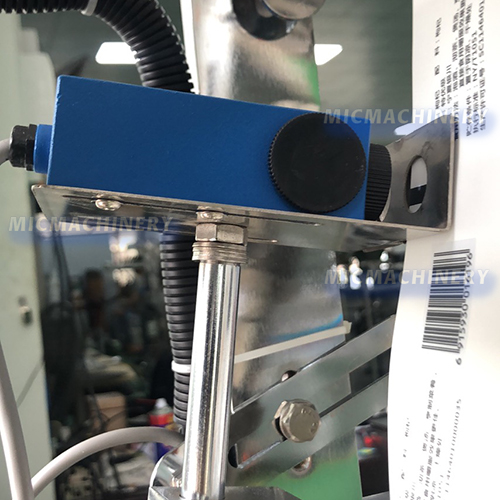

Sensor

The sensor senses the location of the film, telling the machine where to cut the bag.Photoelectric and tracing system or computer system can be provided without your specific requirements.



Bag Former

This machine can finish forming bag--measuring--material filling—sealing—counting—date code printing, all the work automatically;Fine Packaging performance.low noies .clear sealing texture and strong sealing performacnce.

Capcity

20- 40 bags/min

Range of measurement

1- 100 G

Bag size

(L) 20-160 (W) 20-100mm

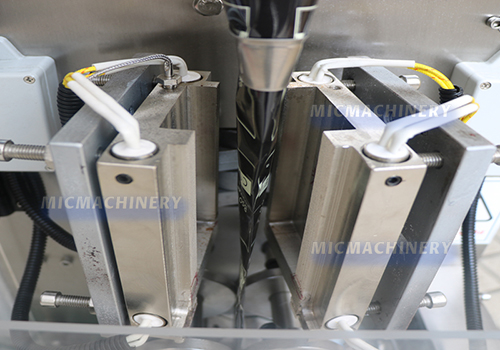

Sealing Type

Back sealing

Power

1180W

Total power

380V/50HZ 220V/50-60HZ

Packing material

Paper/the polyethylene,nylon/polyethylene,tea filter paper,etc

Net weight

2 60kg

Overall dimensions

(L) 800*(W) 800*(H) 1800

Sensor

Changtong (China)

PLC Controller

Mitsubishi/J apan

Stepping motor

Jiangsu huanyu

Main Motor

Zhaoqing Zhongbao

Temperature control meter module

Yuyao families meter

Color code photoelectric

Zhejiang both

Intermediate relay

Zhejiang both

Solid state relay

Zhaoqing Zhongbao

Luck film motor

Jiangsu huanyu .

Proximity switch

Jiangsu huanyu .

Push button switch

Japan (OMRON)

Power switch

Japan (OMRON)

Color Printer for Date

China Nanyun

Machine Body

SS202 , Material Control Parts SS304
