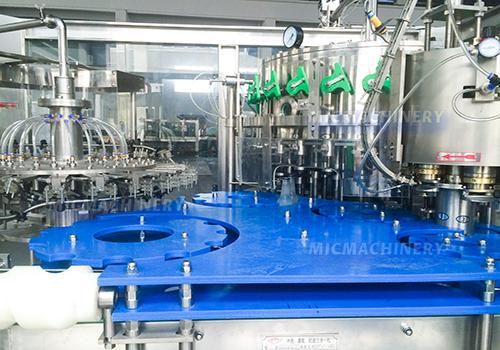

MIC 24-24-6 Glass Bottle Carbonated Beverage Filling Machine is applicable for equal pressure filler and capper of carbonated beverage industry.

Adopt products:  gas water, carbonated water, co2 water, etc liquid like carbonated beverage.

Machine working principle:

1. Isobaric filling system, controled by pressure, accuracy is +/-1%,liquid level difference is not more than 2mm. (requires steady pressure and temperature at 0-4degree).

2. Cap capping machine is qualified for Chinese seaming standard, and no air leakage at all.

3. About beer oxygen content, we have device for foaming after fill and remove oxygen of beer, and nitrogen filling for replace air too.

3. Aluminum cap and crown cap are ok problem working on our capping machine (different heads), We use our own technical drawing and own processing machine, to make sure our seaming head quality and always easy to purchase.

4. If bottle stock on conveyor sensor will inform PLC to stop at the feeding part.

5. About machine automation, we are able to do what client required.

6. About machine test and shipment, we are stick with real production test till all problem is fix and then ship out.

7. Consider of product various ability, we are able to make machine for replace air from the can package.


A carbonated beverage filling machine is a highly specialized piece of equipment used in the production of carbonated drinks. This machine is designed to efficiently fill carbonated beverages, such as soda, sparkling water, and energy drinks, into bottles or cans while preserving the desired carbonation levels. With precise control over the filling process, carbonated beverage filling machines ensure consistent quality and taste, making them essential in the beverage industry.





Chuck
The chuck is used to fix the bottle, so that the bottle does not move during the filling process. It can also make the bottle quickly into the next process, saving more time. The chuck can be customized to the size of your bottle.

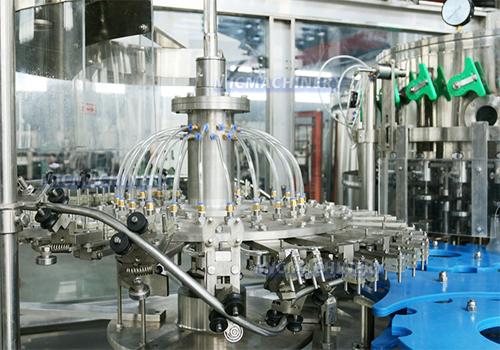

Washing Part
Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

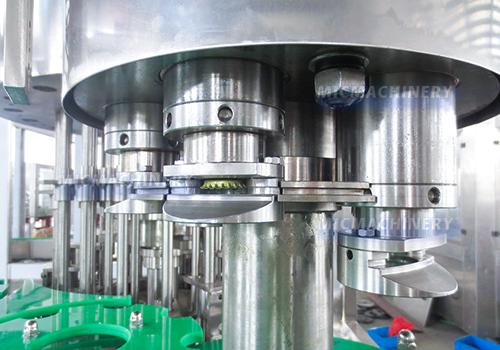

Capping Part

Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.
Model MIC-24-24-6
Washing heads 24pcs
Filling heads 24pcs
Capping heads 6pcs
Volume 0.1-1.25L
Production capacity 4000bottle/hr base on 500ml
Filling method Isobaric
Filling temperature <5℃
Power 1.5kw  380V/50HZ(According to customer)
Air pressure 0.7Mpa
Bottle height, bottle diameter 180-300MM ¢50-90MM
Wash bottle water pressure 0.2~0.25 Mpa
Weight 3500Kg
Dimension 2200×1800×2550mm
Electrical configuration
Touch screen MITSUBISHI
Frequency converter MITSUBISHI
PLC MITSUBISHI
Contactor, breaker DELIXI
Proximity switch DELIXI
Photoelectric switch DELIXI
Bearing Harbin
Relay OMRON
Barometer AirTAC
Air cylinder AirTAC
Solenoid valve AirTAC
