MIC-24-24-6 beer bottling equipment is applicable for equal pressure filler and capper of beer industry.

Machine working principle:

1. Isobaric filling system, controled by pressure, accuracy is +/-1%,liquid level difference is not more than 2mm. (requires steady pressure and temperature at 0-4degree).

2. Cap capping machine is qualified for Chinese seaming standard, and no air leakage at all.

3. About beer oxygen content, we have device for foaming after fill and remove oxygen of beer, and nitrogen filling for replace air too.

3. Aluminum cap and crown cap are ok problem working on our capping machine (different heads), We use our own technical drawing and own processing machine, to make sure our seaming head quality and always easy to purchase.

4. If bottle stock on conveyor sensor will inform PLC to stop at the feeding part.

5. About machine automation, we are able to do what client required.

6. About machine test and shipment, we are stick with real production test till all problem is fix and then ship out.

7. Consider of product various ability, we are able to make machine for replace air from the can package.


For this production line you might be interested in:

1> Carton packing machine

2> Pallet winding machine

Related machines are: bottle filling capping machine, glass bottle capping machine, rotated oil bottle filling machine, rotated oil filling machine, beer filling machine, beer capping machine, beer bottling machine and beer filler. beer bottling equipment, beer bottle filling machine, beer filling line, small beer bottling line, automatic beer filling machine, beer bottle filling equipment, beer filling equipment, bottling machine beer

automatic beer bottling machine

A beer bottling equipment is a specialized piece of equipment used in the beer industry for packaging beer in bottles. These machines are designed to automate the process of bottling beer, which can be time-consuming and labor-intensive when done manually.

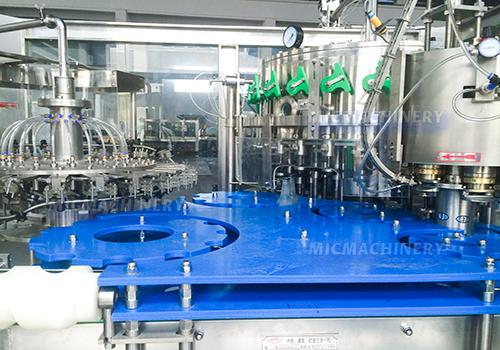

The beer bottling equipment typically includes a series of machines and conveyors that work together to fill, cap, and label beer bottles. The process begins with empty bottles being loaded onto the conveyor belt, which then moves them through a rinsing and sanitizing station to ensure that the bottles are clean and ready for filling.

Next, the bottles are filled with beer using a specialized filling machine that dispenses the correct amount of beer into each bottle. The filled bottles are then moved through a capping station, where caps are applied to each bottle to ensure a tight seal.

Finally, the bottles move through a labeling station, where labels are applied to each bottle. The labels typically include information such as the beer brand, alcohol content, and ingredients.

The beer bottling equipment is an essential piece of equipment for breweries and bottling plants, as it allows for faster and more efficient packaging of beer. It also helps to ensure that the beer is packaged in a consistent manner, which is important for maintaining the quality and taste of the beer.

Whether you are a small craft brewery or a large commercial operation, a beer bottling line can help to streamline your operations and improve your bottom line. By investing in a high-quality beer bottling line, you can increase your production capacity, reduce labor costs, and improve the overall quality of your beer.




Chuck

The chuck is used to fix the bottle, so that the bottle does not move during the filling process. It can also make the bottle quickly into the next process, saving more time. The chuck can be customized to the size of your bottle.

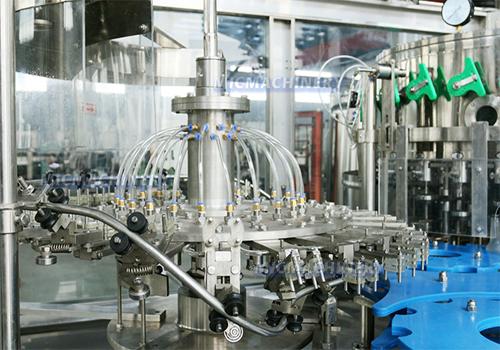

Washing Part

Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

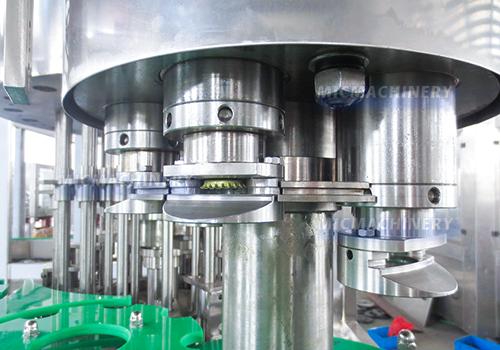

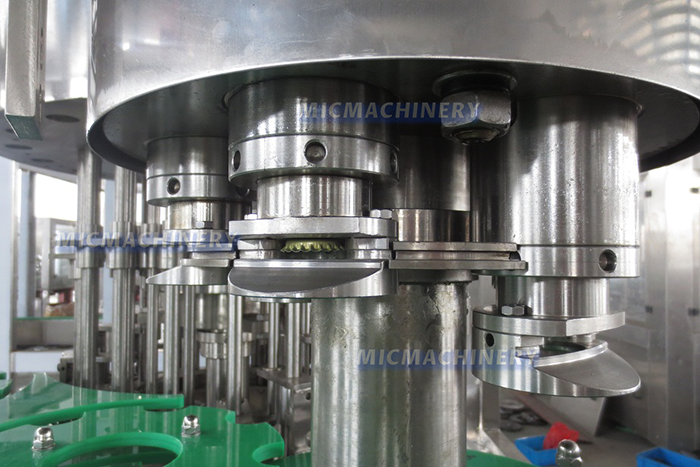

Capping Part

Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.



Bottle Shrink Sleeve Machine

A bottle shrink sleeve machine is an advanced packaging equipment designed for the labeling and packaging of bottles. It is a high-speed machine that applies heat-shrinkable sleeves onto bottles, creating a tamper-evident and aesthetically pleasing label that conforms to the shape of the container. This machine is commonly used in the food and beverage industry for labeling bottles of various shapes and sizes, including water bottles, juice bottles, beer bottles, and more.




Carton Case Packer

The grabbing type case packer is reliable in operation: This machine is realized by the servo to pick up and release the product. Through the mechanical operation, pneumatic and electric control, the product can be accurately and reliably picked up from the box holder with a suction cup into the carton.

Model MIC-24-24-6
Washing heads 24pcs
Filling heads 24pcs
Capping heads 6pcs
Volume 0.1-1.25L
Production capacity 4000bottle/hr base on 500ml
Filling method Isobaric
Filling temperature <5℃
Power 1.5kw  380V/50HZ(According to customer)
Air pressure 0.7Mpa
Bottle height, bottle diameter 180-300MM ¢50-90MM
Wash bottle water pressure 0.2~0.25 Mpa
Weight 3500Kg
Dimension 2200×1800×2550mm
Electrical configuration
Touch screen MITSUBISHI
Frequency converter MITSUBISHI
PLC MITSUBISHI
Contactor, breaker DELIXI
Proximity switch DELIXI
Photoelectric switch DELIXI
Bearing Harbin
Relay OMRON
Barometer AirTAC
Air cylinder AirTAC
Solenoid valve AirTAC
