Mic 18-6 beverage can filling seaming machine adopts normal pressure filling system which is applicable for fruit juice, cold brew coffee, energy drink, herbal tea, alcoholic beverages and other canned non-carbonated drinks (Cold filling temperature at 0-4 degrees Celsius or hot filling temperature at 80-85 degrees Celsius.)
Machine features:
1. Mic 18-6 beverage can filling machine is in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit. Filling and seaming part is the overall designed, in order to ensure that both the absolute synchronization and coordination.
2. The machine adopts PLC, frequency converter, human machine interface controlling system, having the advanced controlling technologies, such as frequency control, no can no filling and so on.
3. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can equip CIP system according to the customers’ request. It is the preferred equipment for the small brewery and medium beverage plant
4. The main electric and pneumatic components of the machine are famous imported brands, and it also can be disposed according to client’s requirements.
Empty can depalletizer
Automatic empty aluminum cans depalletizer is mainly used for automatic unloading of empty cans. The empty cans stacked on the pallet, from bottom to top layer of lift and push to the net conveyor and matching use with inline cans rinser which is the ideal equipment of medium-sized and large beverage manufacturers essential.

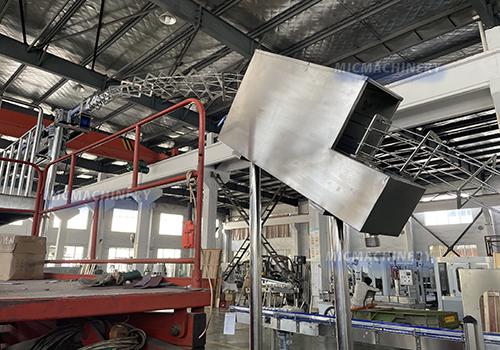

Inline can rinser / can washing machine
The inline can rinser is used to clean the empty cans by clean water before filling, we can add this can rinser in the beginning of filling line. The twist cages are customized with your sample cans. As long as the height and diameter of your cans are different, you need to buy the extra set twist cages to change.

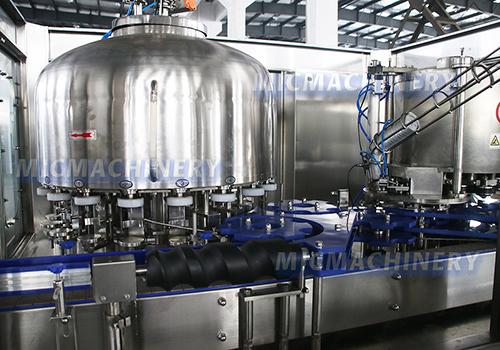

Normal pressure gravity filling system
Monoblock design, filling & seaming process combined in one system. Adopts high precision and normal pressure filling valve make sure the liquid level is high accuracy without loss. Adopts high precision grinding process and food grade 304 stainless steel liquid tank. It will equipped with CIP connector as customer's demand.
Liquid nitrogen doser
Normally, as for cold brew coffee, fruit juice and herbal tea filling, we will suggest our customer to add this liquid nitrogen doser to work with canning machine. In order to extend its shelf life and make sure it tastes good. It also makes the aluminum cans fuller and less prone to deformation.

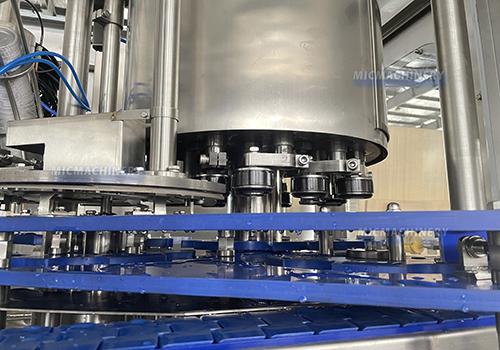

Aluminum lid seaming system
The “MIC” system is a mechanism actuated, cam-driven seamer with easily adjustable rollers that allow for precise adjustment to from seams that are within can-maker specifications. Seams are formed in under only a second, faster than any other system in its class. Through two past decade’s technology innovation and optimization, the result is revolutionary.
Mic 18-6 Parameters
Power |
1.5Kw |
Filling heads |
18piece |
Sealing heads |
6piece |
Production capacity |
4000-7000CPH based on 330ml |
Filling temperature |
0-4 ℃ |
Can diameter range |
Ф40-90MM |
Can height |
92-168MM |
Dimension |
2300*1400*1950mm |
Weight |
2500Kg |
1 |
Name |
Brand |
2 |
Push Button |
Schneider France |
3 |
Electromagnetic Contactor |
Schneider France |
4 |
Relays |
Omron Japan |
5 |
Frequency Converter |
Siemens |
6 |
Air Cylinder |
AirTAC Taiwan |
7 |
Electromagnetic Valve |
AirTAC Taiwan |
8 |
PLC Control System |
Siemens |
9 |
Touch Screen |
Siemens |
10 |
Photoelectric Switch |
Autonics |
11 |
Proximity Switch |
Autonics |
12 |
Reducer |
Zhejiang Duoli China |
13 |
Sealing Motor |
Zhejiang Duoli China |
14 |
Barometer |
AirTAC Taiwan |
15 |
Bearing |
Harbin China |
