The machine is a kind of professional filling machine for carbonated drink and other liquid with gas which applies to PET bottle.

It is made of high quality SUS304 stainless steel. Main components are processed precisely by CNC machine tool. The machine adopts advanced photo electricity to detect running status. No bottle no filling.

Carbonated Beverage Filling Machine/Carbonated Beverage Production line Description: DCGF series 3-in-1 carbonated beverage filling mono-bloc is used in the PET bottle filling of gas containing beverage, such as Coco-cola, Pepsi-cola, Spirit drink etc. It is combined with bottle washing, filling and capping into one machine.

1. This series of filling machines are used in production of PET bottled carbonated beverage, such as carbonated water, sprite and so on.

2. This series of products are the integrated rinsing, filling and capping machine, suitable for producing various PET bottled carbonated beverage.

3. The main machine adopts advanced PLC control technology.

4. The key electric elements adopt international famous products.

5. We will give you the highest quality and the best service.


The Soft Drink PET Bottle Machine prioritizes product integrity and safety. It is built with high-quality materials, such as stainless steel, to ensure durability and compliance with hygiene standards. Additionally, the machine incorporates advanced cleaning and sterilization mechanisms to prevent contamination and maintain the purity of the soft drinks. By upholding stringent quality control measures, this equipment guarantees that the PET bottles are safe for packaging soft drinks and upholds the reputation of the brand.

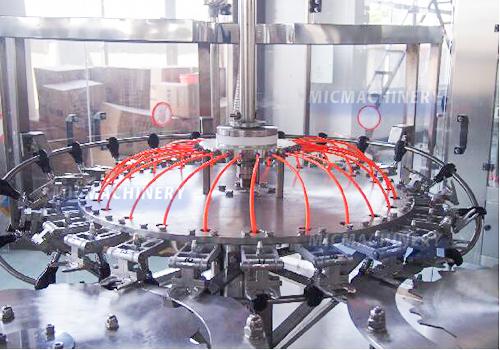

Washing Part

Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

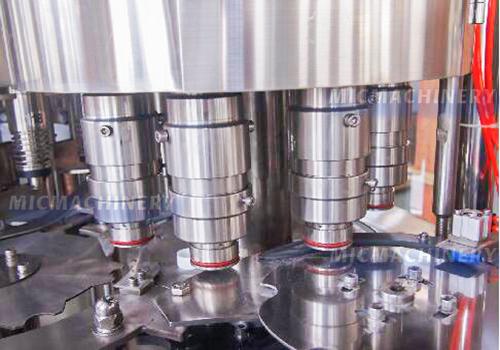

Capping Part

Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.

Filling Nozzle

18 Heads

Water Rinse Nozzle

18 Heads

Capping Head

6 Heads

Filling Volume

0.25-1.5L

Filling Speed

2000-3000 Bottles/h (500ML)

Air Pressure

0.6Mpa

Air Consume

0.15m³/min

Washing Water Pressure

0.2Mpa

Washing Water Consume

Less Than 1T/h

Main Motor Power

2.2KW

Total Power

5KW

Size

2500mm*1900mm*2300mm

Total Weight

3500KG

Voltage

220/380V/50HZ (Can Be Customized)

Control

PLC+Touch Screen

Material

SUS 304

Name

Brand

Push Botton

Schneider France

Electromagnetic Contactor

Schneider France

Relays

Omron Japan

Frequency Converter

Mitsubishi or Siemens Japan

Air Cylinder

Air TAC Taiwan

Electromagnetic Valve

Air TAC Taiwan

PLC Control System

Siemens Germany

Touch Screen

Siemens Germany

Photoelectric Switch

DELIXI China

Proximity Switch

DELIXI China

Reducer

Zhejiang Duoli China

Sealing Motor

Zhejiang Duoli China

Baromter

Air TAC Taiwan

Bearing

Harbin China
