MIC 18-18-6 Pet Bottle Soda Filling Machine(Speed 2000-3000BPH)
MIC 18-18-6 Pet Bottle Soda Filling Machine(Speed 2000-3000BPH)
MIC 18-18-6 Pet Bottle Soda Filling Machine(Speed 2000-3000BPH)
MIC 18-18-6 Pet Bottle Soda Filling Machine(Speed 2000-3000BPH)
Video
  • INTRODUCTION
  • TECHNICAL PARAMETER
  • CONFIGURATION LIST
  • CUSTOMER REVIEWS

The MIC 18-18-6 Pet Bottle Soda Filling Machine is a kind of professional filling machine for soda drink, carbonated drink and other liquid with gas which applies to PET bottle.

It is made of high quality SUS304 stainless steel. Main components are processed precisely by CNC machine tool. The machine adopts advanced photo electricity to detect running status. No bottle no filling.

Carbonated Beverage Filling Machine/Carbonated Beverage Production line Description: DCGF series 3-in-1 carbonated beverage filling mono-bloc is used in the PET bottle filling of gas containing beverage, such as Coco-cola, Pepsi-cola, Spirit drink etc. It is combined with bottle washing, filling and capping into one machine.

1. This series of filling machines are used in production of PET bottled carbonated beverage, such as carbonated water, sprite and so on.

2. This series of products are the integrated rinsing, filling and capping machine, suitable for producing various PET bottled carbonated beverage.

3. The main machine adopts advanced PLC control technology.

4. The key electric elements adopt international famous products.

5. We will give you the highest quality and the best service.


The PET bottle soda filling machine represents the pinnacle of efficiency and productivity in the beverage industry. Engineered to handle high-volume production, this machine fills PET bottles with soda at remarkable speeds, surpassing manual or semi-automatic processes. With its advanced automation, the machine ensures consistent fill levels, minimizing variations and guaranteeing uniform product quality. Its high-speed capabilities empower manufacturers to meet demanding production targets while maintaining the meticulous nature of PET bottle filling.

Precision is a paramount feature of the PET bottle soda filling machine Price. Equipped with advanced sensors and control systems, this equipment ensures accurate dosing and precise control over the filling process. Each PET bottle is meticulously positioned, filled with the exact quantity of soda, and sealed to maintain product freshness. The machine's intelligent monitoring and adjustment capabilities facilitate consistent fill levels, reducing product wastage and enhancing quality control.

Versatility is a key advantage of the soda pet bottle filling machine. It accommodates a wide range of PET bottle sizes, shapes, and designs, making it suitable for diverse packaging requirements. The machine's adaptability allows manufacturers to cater to various consumer preferences and market demands, offering flexibility in product offerings. Whether it's standard PET bottles, custom-shaped containers, or different sizes, the machine effortlessly handles various PET bottle types, providing a seamless and efficient filling process.

The pet soda filling machine not only ensures efficiency but also provides a cost-effective solution for beverage manufacturers. Its high-speed operation and precision dosing capabilities contribute to optimized production efficiency, reducing operational costs and maximizing output. Additionally, the machine's compatibility with downstream packaging equipment enhances the overall cost-effectiveness of the production process, streamlining operations and minimizing bottlenecks.

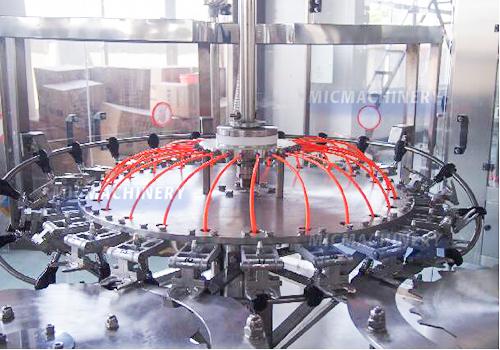

Washing Part

Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

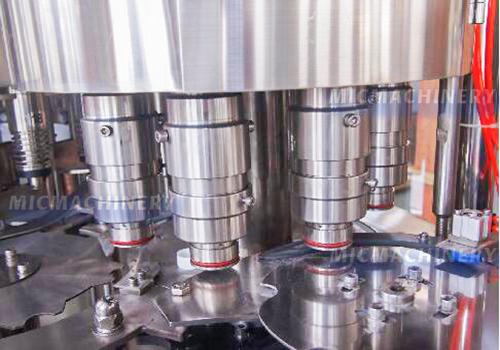

Capping Part

Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.

Filling Nozzle

18 Heads

Water Rinse Nozzle

18 Heads

Capping Head

6 Heads

Filling Volume

0.25-1.5L

Filling Speed

2000-3000 Bottles/h (500ML)

Air Pressure

0.6Mpa

Air Consume

0.15m³/min

Washing Water Pressure

0.2Mpa

Washing Water Consume

Less Than 1T/h

Main Motor Power

2.2KW

Total Power

5KW

Size

2500mm*1900mm*2300mm

Total Weight

3500KG

Voltage

220/380V/50HZ (Can Be Customized)

Control

PLC+Touch Screen

Material

SUS 304

Name

Brand

Push Botton

Schneider France

Electromagnetic Contactor

Schneider France

Relays

Omron Japan

Frequency Converter

Mitsubishi or Siemens Japan

Air Cylinder

Air TAC Taiwan

Electromagnetic Valve

Air TAC Taiwan

PLC Control System

Siemens Germany

Touch Screen

Siemens Germany

Photoelectric Switch

DELIXI China

Proximity Switch

DELIXI China

Reducer

Zhejiang Duoli China

Sealing Motor

Zhejiang Duoli China

Baromter

Air TAC Taiwan

Bearing

Harbin China

Water Factor, Tirana Albania,  2012
Beer Canning Factory, Wales UK, 2017,03
