Features:
The MIC 18-18-6 Pet Bottle Juice Filling And Sealing Machineis a kind of professional hot filling machine for mango juice, litchi juice , orange juice, apple juice and other Fruit and vegetable juice which applies to PET bottle.
It is made of high quality SUS304 stainless steel. Main components are processed precisely by CNC machine tool. The machine adopts advanced photo electricity to detect running status. No bottle no filling. It realize man-machine conversation because of applying touch screen for operation
1) Bottle is entered by air conveyor, the speed of bottle entering is fast and bottle shape isn’t changed because of adopting hanging clamping bottleneck way
2) Adopting clamping bottleneck way to wash bottle mouth and avoid touching screw mouth, adopting clamping bottleneck way in the whole conveying process. When bottle type changes, you need to change the board related with bottle diameter
3) Filling adopts cylinder feeding structure, filling valve adopts high filling speed and mass flow rate valve which control liquids level accurately and without loss.
4) Screw capper adopts French advanced technology which cans screw cap promptly when clamping bottle.
5) The PLC and transducer are chosen from international famous brand, such as OMRON, MITSUBISHI and so on
A PET bottle juice filling machine is a specialized piece of equipment used in the food and beverage industry to automate the process of filling juice into PET (Polyethylene Terephthalate) bottles. It is designed to ensure efficient and accurate filling while maintaining the freshness and quality of the juice.

The PET bottle juice filling machine operates by receiving PET bottles from a feeding system, such as a conveyor or an automated loader. The bottles are then transported to the filling station, where the juice is precisely dispensed into each bottle. The filling process can be adjusted to accommodate different bottle sizes and fill volumes, providing versatility in production.

The machine utilizes advanced technology and mechanisms to ensure precise and consistent filling. It can handle various types of juice, including pulpy or non-pulpy liquids. The filling nozzles are designed to minimize foaming and prevent spillage during the filling process, ensuring accurate fill levels and reducing product waste.

PET bottle juice filling machines are equipped with control systems that allow operators to adjust parameters such as filling volume, filling speed, and bottle positioning, providing flexibility to meet different production needs. Some machines may incorporate additional features such as cap application, cap tightening, or labeling systems to complete the packaging process.

The benefits of using a PET bottle juice filling machine include increased production efficiency, reduced labor costs, precise filling accuracy, and improved product quality. By automating the filling process, the machine minimizes human errors, reduces the risk of contamination, and ensures consistent and reliable results.

In addition, PET bottle juice filling machines are designed to comply with food safety and hygiene standards. They incorporate features such as sanitary construction materials, easy cleaning and maintenance, and product contact parts made from food-grade materials, ensuring the safety and integrity of the filled juice.

In summary, a PET bottle juice filling machine is an essential asset in the food and beverage industry, providing an automated and precise solution for filling juice into PET bottles. Its advanced features and capabilities contribute to efficient production, product quality, and overall operational efficiency. The use of a PET bottle juice filling machine ensures the freshness, safety, and appeal of the filled juice, meeting the demands of consumers and industry standards.


Washing Part

Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

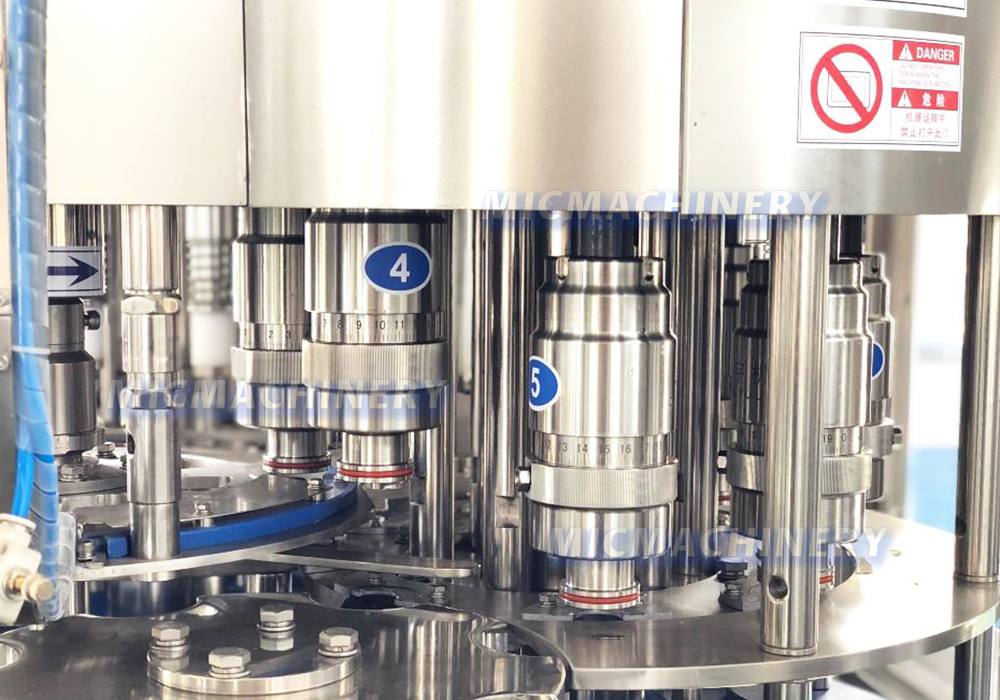

Filling Part

Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), filling pump, bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.
Rotary wheel fully made of stainless steel SUS 304. Filling valves are made of SUS316L. Filling valves are reasonably structured with accurate filling. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
text text


Capping Part

Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.

Technical parameter
Capacity 8000-10000b/h(500ml)
Filling volume 200ml-2000ml (standard filling) Can be adjusted
Filling material Juice
Standard bottles PET bottle,
Diameter of bottle: Φ50~Φ110mm
Height of bottle: 150-320mm
Filling: hot filling under constant pressure
Filling temperature 87+-5℃
Compressed air pressure 0.3-0.7 M pa
Rinsing water pressure 0.2-0.25 M pa
Rinsing water Aseptic water
Total power consumption 7kw
Power 380V, 50Hz, 3 phase(according to customer’s requirement)
Suitable cap standard plastic cap with screw thread
overall dimensions 3000x2200x2300mm
weight 5500 kg
No. Name Brands
1 Frequency converter Siemens Germany
2 PLC Siemens Japan
3 Touch screen Siemens orTaiwan Germany orTaiwan
4 Contactor Siemens Germany
5 Thermal relay Siemens Germany
6 Air switch Schneider France
7 Proximity switch OMRON Japan
8 The photoelectric switch OMRON Japan
