The Automatic Carbonated Soft Drink Filling Machine is a kind of professional filling machine for carbonated drink and other liquid with gas which applies to PET bottle.
It is made of high quality SUS304 stainless steel. Main components are processed precisely by CNC machine tool. The machine adopts advanced photo electricity to detect running status. No bottle no filling.
Carbonated Beverage Filling Machine/Carbonated Beverage Production line Description: DCGF series 3-in-1 carbonated beverage filling mono-bloc is used in the PET bottle filling of gas containing beverage, such as Coco-cola, Pepsi-cola, Spirit drink etc. It is combined with bottle washing, filling and capping into one machine.
1. This series of filling machines are used in production of PET bottled carbonated beverage, such as carbonated water, sprite and so on.
2. This series of products are the integrated rinsing, filling and capping machine, suitable for producing various PET bottled carbonated beverage.
3. The main machine adopts advanced PLC control technology.
4. The key electric elements adopt international famous products.
5. We will give you the highest quality and the best service.
The Carbonated Drink Filling Machine introduces a new era of efficiency and precision to the beverage production landscape. By leveraging advanced technology and precise engineering, this machine streamlines the entire filling process, from carbonation to liquid filling and capping. It guarantees unmatched efficiency, accuracy, and consistency, meeting the rigorous standards of the carbonated drink industry and enabling manufacturers to meet the escalating consumer demands.

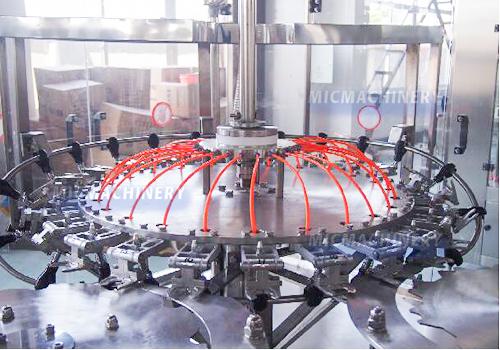

Washing Part
Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.

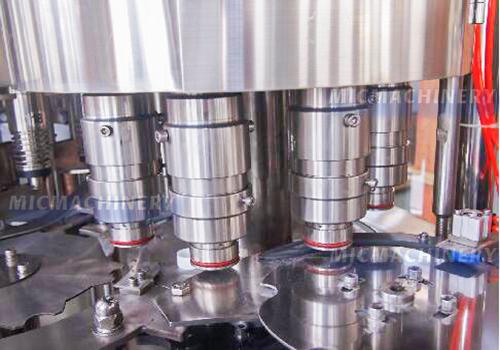

Capping Part
Capping part is mainly composed of capping heads, ca drop rail, pressure regular, and also we need an air compressor as the auxiliary external equipment.
Filling Nozzle |
18 Heads |
Water Rinse Nozzle |
18 Heads |
Capping Head |
6 Heads |
Filling Volume |
0.25-1.5L |
Filling Speed |
2000-3000 Bottles/h (500ML) |
Air Pressure |
0.6Mpa |
Air Consume |
0.15m³/min |
Washing Water Pressure |
0.2Mpa |
Washing Water Consume |
Less Than 1T/h |
Main Motor Power |
2.2KW |
Total Power |
5KW |
Size |
2500mm*1900mm*2300mm |
Total Weight |
3500KG |
Voltage |
220/380V/50HZ (Can Be Customized) |
Control |
PLC+Touch Screen |
Material |
SUS 304 |
1 |
Name |
Brand |
2 |
Push Button |
Schneider France |
3 |
Electromagnetic Contactor |
Schneider France |
4 |
Relays |
Omron Japan |
5 |
Frequency Converter |
Siemens |
6 |
Air Cylinder |
AirTAC Taiwan |
7 |
Electromagnetic Valve |
AirTAC Taiwan |
8 |
PLC Control System |
Siemens |
9 |
Touch Screen |
Siemens |
10 |
Photoelectric Switch |
Autonics |
11 |
Proximity Switch |
Autonics |
12 |
Reducer |
Zhejiang Duoli China |
13 |
Sealing Motor |
Zhejiang Duoli China |
14 |
Barometer |
AirTAC Taiwan |
15 |
Bearing |
Harbin China |
