MIC 18-18-6 Carbonated Drink Filling Line ( 2000-3000BPH, especially suitable for drink plants )

E-mail: sales8@micmachinery.com
Mobile: 0086-13771181029
Whatsapp: 0086-13771181029
Wechat: 0086-13771181029
Shipment: exporting country
Customer reviews: click on

Video

INTRODUCTION
TECHNICAL PARAMETER
CONFIGURATION LIST
CUSTOMER REVIEWS

The machine is a kind of professional filling machine for carbonated drink and other liquid with gas which applies to PET bottle.
It is made of high quality SUS304 stainless steel. Main components are processed precisely by CNC machine tool. The machine adopts advanced photo electricity to detect running status. No bottle no filling.

Carbonated Beverage Filling Machine/Carbonated Beverage Production line Description: DCGF series 3-in-1 carbonated beverage filling mono-bloc is used in the PET bottle filling of gas containing beverage, such as Coco-cola, Pepsi-cola, Spirit drink etc. It is combined with bottle washing, filling and capping into one machine.

1. This series of filling machines are used in production of PET bottled carbonated beverage, such as carbonated water, sprite and so on.

2. This series of products are the integrated rinsing, filling and capping machine, suitable for producing various PET bottled carbonated beverage.

3. The main machine adopts advanced PLC control technology.

4. The key electric elements adopt international famous products.

5. We will give you the highest quality and the best service.

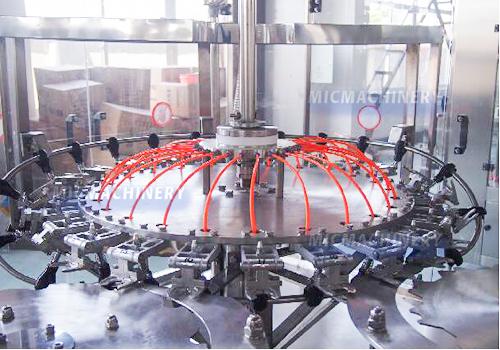

Washing Part

Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

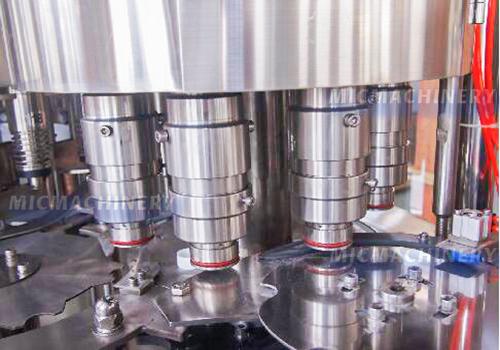

Capping Part

Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.

Filling Nozzle	18 Heads
Water Rinse Nozzle	18 Heads
Capping Head	6 Heads
Filling Volume	0.25-1.5L
Filling Speed	2000-3000 Bottles/h (500ML)
Air Pressure	0.6Mpa
Air Consume	0.15m³/min
Washing Water Pressure	0.2Mpa
Washing Water Consume	Less Than 1T/h
Main Motor Power	2.2KW
Total Power	5KW
Size	2500mm1900mm2300mm
Total Weight	3500KG
Voltage	220/380V/50HZ (Can Be Customized)
Control	PLC+Touch Screen
Material	SUS 304

Name	Brand
Push Botton	Schneider France
Electromagnetic Contactor	Schneider France
Relays	Omron Japan
Frequency Converter	Mitsubishi or Siemens Japan
Air Cylinder	Air TAC Taiwan
Electromagnetic Valve	Air TAC Taiwan
PLC Control System	Siemens Germany
Touch Screen	Siemens Germany
Photoelectric Switch	DELIXI China
Proximity Switch	DELIXI China
Reducer	Zhejiang Duoli China
Sealing Motor	Zhejiang Duoli China
Baromter	Air TAC Taiwan
Bearing	Harbin China

Water Factor, Tirana Albania, 2012

Beer Canning Factory, Wales UK, 2017,03
