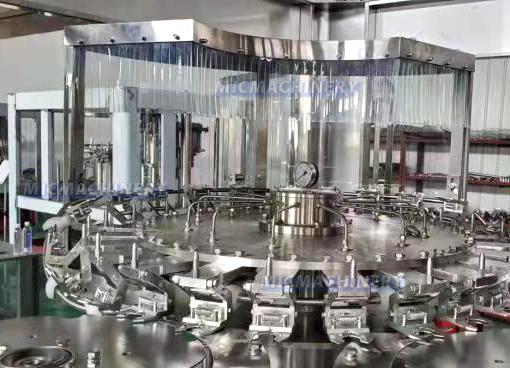

Washing Part
Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.

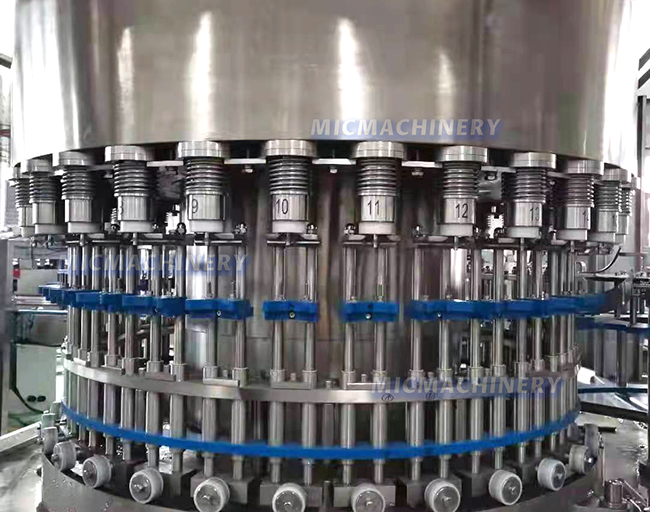

Filling Part
Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), filling pump, bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.

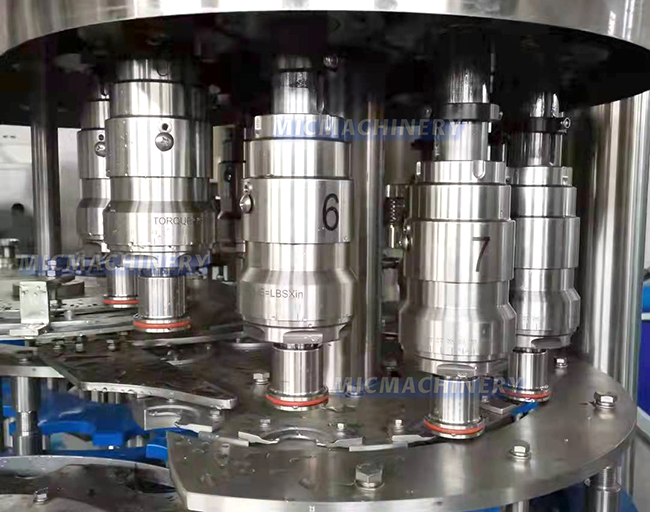

Capping Part
Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Model |
8-8-3 |
14-12-5 |
18-18-6 |
Application |
Juice, tea, pure water, mineral water, energy drinks, coffee and etc. |
||
Filling Way |
Gravity Filling |
||
Packing Type |
PET/Plastic bottle |
||
Production Capacity |
2000-2500BPH |
3000-5000BPH |
5000-8000BPH |
Powder |
1.2KW |
1.5KW |
2.2KW |
Weight |
1500KG |
2000KG |
4000KG |
Overall Dimensions(mm) |
2260*1600*2600 |
2250*1650*2650 |
2850*2150*2700 |
No. |
Name of parts |
Brand |
1 |
PLC |
Mitsubishi Japan |
2 |
Touch screen |
WEINVIEW |
3 |
Inverter |
Siemens Germany |
4 |
Low-voltage apparatus |
Schneider France |
5 |
Pneumatic components |
AirTAC Taiwan |
6 |
Bearing |
China |
7 |
Optical sensor |
Omron Japan |
