Experienced supplier of soft drink Bottling machine,Bottling machine for drinks,Soft Drink Bottling Line

This beer bottling machine mainly used for Beer filling operation, this machine is combined of rinsing, filling capping;
Features of filling machinery:
The whole procedure is full auto, and suitable for glass bottle and aluminum steel-proof caps for filling vodka, wine. The applicable bottle type can be adjusted freely and conveniently. That is why the machine has more capacity and benefit compared other machine with same specification. This machine is adopted advanced programmable PLC, and make the machine running auto, and bottle input conveyor adopts transducer with speed adjustable, and bottle output conveyor adopts speed adjustable motor. Cooperation with transducer of main machine makes the bottle running smoothly and reliably, it is convenient to operate with high auto because of every part of machine is inspected to run by photoelectric detector. The machine is idea-preferred equipment for beverage makers.

Technical features

1, Filling valves adopt high-precision mechanic filling valve with mechanism of no bottle, no vacuumizing.

2, Out-placement mechanic structure. There is no spring in the valve.

3, There are two times of vacuumizing, equipping high pressure foam simulating device.

4, Driving adopts combination of open-type gear and gear. Adopt stepless frequency speed adjustment.

5, This machine equips automatic lubrication device.

6, Equip automatic washing device for broken bottles.

7, The lift of liquid tank, capping heads and control ring is electric to adapt to different height bottles.

8, The product level in the filling tank is controlled by electric probe to keep stable level and reliable filling.

9, Adopt PLC control.

MIC 18-18-1 Soft Drink Bottling Machine (800-1500BPH)

The MIC 18-18-1 Soft Drink Bottling Machine is an advanced isobaric carbonated filling machine, specifically designed for efficiently bottling carbonated soft drinks such as sodas, sparkling waters, and flavored carbonated beverages. With a production capacity of 800 to 1500 bottles per hour, this machine provides a high-performance, reliable solution for medium-scale bottling operations.

What is the MIC 18-18-1 Soft Drink Bottling Machine?

The MIC 18-18-1 Soft Drink Bottling Machine integrates three critical functions: rinsing, filling, and capping, with an isobaric filling process that ensures precise and efficient bottling of carbonated beverages. The machine is designed to maintain consistent pressure, preserving the carbonation in drinks during the filling process, which is essential for maintaining product quality.

This bottling machine for drinks is optimized for carbonated beverages and is perfect for bottling soft drinks like sodas, carbonated flavored waters, and sparkling juices.

MIC 18-18-1 Soft Drink Bottling Machine

High-Quality Construction: Made from premium stainless steel, the machine is both durable and hygienic, making it ideal for the food and beverage industry. Its design facilitates easy cleaning and maintenance, ensuring the machine adheres to industry standards.
Compact and Efficient: With a filling capacity of 800 to 1500 bottles per hour, this soft drink bottling machine offers a compact design without compromising on performance. It’s ideal for medium-scale production and helps businesses optimize space while reducing energy consumption.
Automated Rinsing, Filling, and Capping: The machine automates the key processes of rinsing, filling, and capping, reducing the need for manual labor and enhancing the efficiency of production. The precise control over each function minimizes waste and ensures consistent bottling quality.
Versatility in Product Handling: The MIC 18-18-1 Soft Drink Bottling Machine is versatile enough to handle a range of carbonated beverages, including sodas, sparkling waters, and carbonated juices. It can easily adjust to different bottle sizes, providing flexibility for various production needs.
User-Friendly Control System: Featuring an intuitive control system, the machine enables easy operation and monitoring. Operators can quickly adjust the machine settings to ensure smooth production runs, making it user-friendly and efficient.
Energy-Efficient Operation: This machine is designed to operate efficiently, helping companies reduce operational costs while maintaining high output. It balances power usage and productivity for a more sustainable bottling process.

Applications

The MIC 18-18-1 Soft Drink Bottling Machine is ideal for a variety of carbonated beverages, including:

Sodas: Perfect for bottling carbonated soft drinks with consistent carbonation levels.
Sparkling Waters: Suitable for bottling both flavored and unflavored sparkling waters while preserving the natural fizz.
Carbonated Juices: Ideal for carbonated fruit juices and flavored carbonated drinks.
Other Carbonated Beverages: A versatile machine for all types of non-alcoholic carbonated drinks that require precise carbonation management.

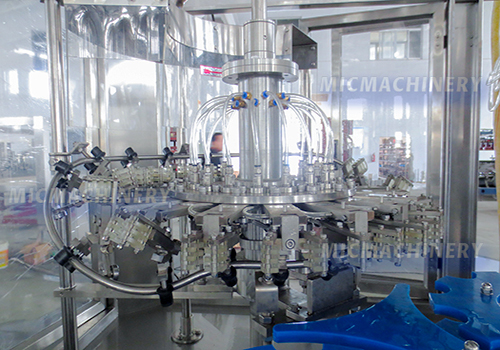

Washing Part

Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

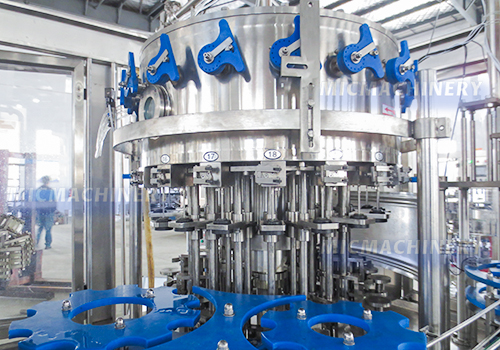

Filling Part

Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.
Rotary wheel fully made of stainless steel SUS 304. Filling valves are made of SUS316L. Filling valves are reasonably structured with accurate filling. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

Capping Part

Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.

1	Filling Nozzle	18 heads
2	Water Rinse Nozzle	18 heads
3	Capping Head	1 heads
4	Filling Volume	330ML
5	Filling Speed	800-1500BPH
6	Air Pressure	0.6Mpa
7	Air Consume	0.15m3/min
8	Washing Water Pressure	0.2MPa
9	Washing Water Consume	About 1T-2T/hour
10	Main Motor Power	0.75KW
11	Total Power	2.5KW
12	Size	2600mm1550mm2200mm (length* width* height)
13	Total Weight	2500KG
14	Voltage	220/380V 50-60Hz (Can be customized)
15	Control	PLC+Touch Screen
16	Material	SUS 304
17	Filling Pressure	0.2~0.5Mpa

1	Name	Brand
2	Push Button	Schneider France
3	Electromagnetic Contactor	Schneider France
4	Relays	Omron Japan
5	Frequency Converter	Siemens
6	Air Cylinder	AirTAC Taiwan
7	Electromagnetic Valve	AirTAC Taiwan
8	PLC Control System	Siemens
9	Touch Screen	Siemens
10	Photoelectric Switch	Autonics
11	Proximity Switch	Autonics
12	Reducer	Zhejiang Duoli China
13	Sealing Motor	Zhejiang Duoli China
14	Barometer	AirTAC Taiwan
15	Bearing	Harbin China

MIC 18-18-1 Soft Drink Bottling Machine(800-1500BPH)
