The MIC 18-18-1 features an all-in-one filling, capping, and sealing system, which reduces the need for multiple machines and simplifies the production process. This cocktail Bottling machine can efficiently handle the filling of carbonated beverages, while its capping system ensures a tight seal, preserving the quality and carbonation of each can. The fully automated design enhances operational efficiency, reducing labor costs and minimizing the risk of contamination during the production process.

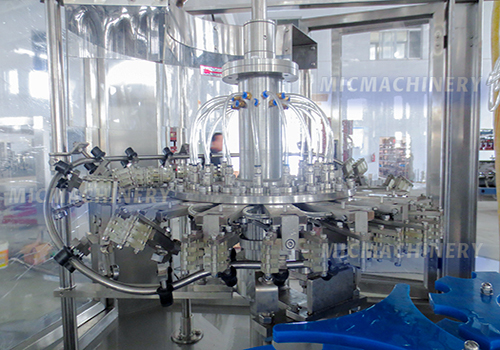

Washing Part
Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.

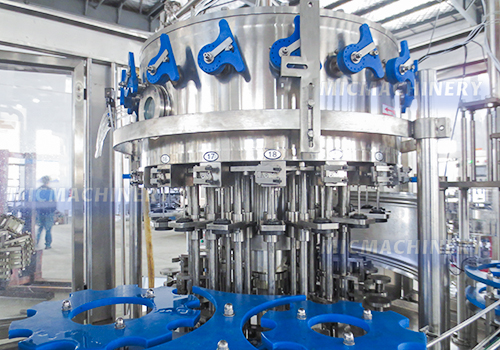

Filling Part
Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.
Capping Part
Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
1 |
Filling Nozzle |
18 heads |
2 |
Water Rinse Nozzle |
18 heads |
3 |
Capping Head |
1 heads |
4 |
Filling Volume |
330ML |
5 |
Filling Speed |
800-1500BPH |
6 |
Air Pressure |
0.6Mpa |
7 |
Air Consume |
0.15m3/min |
8 |
Washing Water Pressure |
0.2MPa |
9 |
Washing Water Consume |
About 1T-2T/hour |
10 |
Main Motor Power |
0.75KW |
11 |
Total Power |
2.5KW |
12 |
Size |
2600mm*1550mm*2200mm (length* width* height) |
13 |
Total Weight |
2500KG |
14 |
Voltage |
220/380V 50-60Hz (Can be customized) |
15 |
Control |
PLC+Touch Screen |
16 |
Material |
SUS 304 |
17 |
Filling Pressure |
0.2~0.5Mpa |
1 |
Name |
Brand |
2 |
Push Button |
Schneider France |
3 |
Electromagnetic Contactor |
Schneider France |
4 |
Relays |
Omron Japan |
5 |
Frequency Converter |
Siemens |
6 |
Air Cylinder |
AirTAC Taiwan |
7 |
Electromagnetic Valve |
AirTAC Taiwan |
8 |
PLC Control System |
Siemens |
9 |
Touch Screen |
Siemens |
10 |
Photoelectric Switch |
Autonics |
11 |
Proximity Switch |
Autonics |
12 |
Reducer |
Zhejiang Duoli China |
13 |
Sealing Motor |
Zhejiang Duoli China |
14 |
Barometer |
AirTAC Taiwan |
15 |
Bearing |
Harbin China |
