MIC 18-18-1 Glass Bottle Soda Bottling Equipment are the aseptic filling equipment for the soda drink, designed and developed on the basis of introducing the technology from Germany and combining the features in the production industry of pure in China. This machine is of good reliability of mechanical operation, perfect functions in rinsing, filling, capping, disinfecting and sterilizing, realizing filling the sterile into the sterile container in a sterile environment


1. This equipment is automatic washing filling capping three in one machine. Its of many advantages, such as compact structure, perfect control system and easy to be operated. Advanced touch screen and PLC control system makes man-machine communication true.

2. Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.

3. Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), filling pump, bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.

4. Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.

5. Main electrical components are all imported from world famous brands to guarantee excellent performance of the whole machine.

Precision is the cornerstone of the glass bottle soda filling machine. Equipped with sophisticated sensors and control systems, this equipment ensures accurate dosing and precise control over the filling process. Each glass bottle is meticulously positioned, filled with the exact quantity of soda, and sealed to maintain product freshness. The machine's intelligent monitoring and adjustment capabilities facilitate consistent fill levels, reducing product wastage and enhancing quality control.
Introducing the MIC 18-18-1 Glass Bottle Soda Bottling Equipment

At Micmachinery, we are proud to present the MIC 18-18-1 Glass Bottle Soda Bottling Equipment, a reliable solution designed to meet the needs of modern beverage manufacturers. With a speed range of 800 to 1500 BPH, this soda bottling machine is ideal for small to medium-scale production, ensuring efficiency without compromising on quality.

Constructed from high-quality stainless steel, the MIC 18-18-1 is built for durability and longevity. This glass bottle soda filling machine is designed to withstand the rigors of continuous operation, making it a dependable choice for any production line. Its robust construction not only enhances its lifespan but also simplifies maintenance and cleaning, aligning with industry hygiene standards.

One of the standout features of the MIC 18-18-1 is its advanced filling technology. This soda filling machine employs precision filling mechanisms that ensure accurate fill levels, significantly reducing waste and maintaining product consistency. By guaranteeing each bottle is filled to the correct level, you can enhance customer satisfaction and build a trusted brand reputation.

The MIC 18-18-1 is designed with versatility in mind. Specifically tailored for glass bottles, this machine can accommodate various bottle shapes and sizes, allowing manufacturers to easily switch between different products. This flexibility is essential in today’s fast-paced market, where consumer preferences can change rapidly.

User-friendliness is a hallmark of the MIC 18-18-1. The intuitive control panel allows operators to easily adjust settings and monitor production in real-time. This user-centric design not only improves operational efficiency but also minimizes training time for new staff, fostering a productive work environment.

Safety and hygiene are paramount in the beverage industry, and the MIC 18-18-1 excels in these aspects. With smooth surfaces and minimal crevices, this soda bottling machine facilitates thorough cleaning, ensuring compliance with health regulations. By prioritizing hygiene, you can confidently assure customers of the safety and quality of your beverages.

When evaluating a soda filling machine, cost-effectiveness is a crucial factor. The MIC 18-18-1 combines high-performance capabilities with energy-efficient features, contributing to lower operational costs and a favorable return on investment. This strategic blend of efficiency and performance exemplifies Micmachinery’s commitment to delivering value to our clients.

At Micmachinery, we understand that ongoing support is essential for your success. Our dedicated team is ready to assist with installation, training, and maintenance, ensuring that your glass bottle soda filling machine operates at peak performance.

In conclusion, the MIC 18-18-1 Glass Bottle Soda Bottling Equipment is an invaluable asset for any beverage manufacturer looking to enhance production capabilities. With its durable construction, advanced filling technology, and emphasis on hygiene, it reflects Micmachinery's professionalism and dedication to excellence in the soda bottling industry. Choose our innovative solutions to optimize your production process and meet the challenges of today’s competitive market.

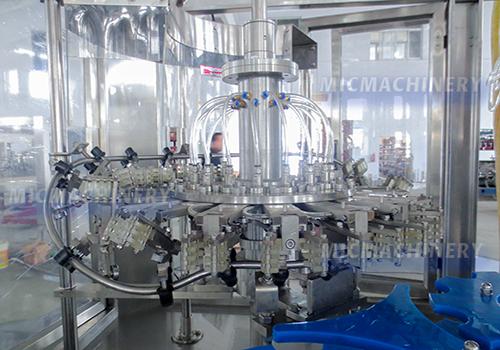

Washing Part

Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

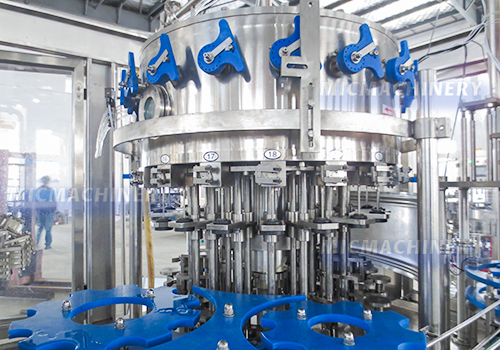

Filling Part

Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), filling pump, bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.
Rotary wheel fully made of stainless steel SUS 304. Filling valves are made of SUS316L. Filling valves are reasonably structured with accurate filling. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

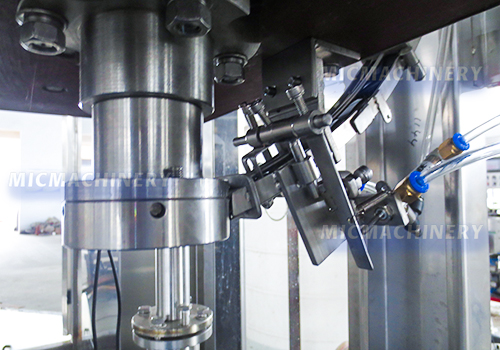

Capping Part

Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.

1

Filling Nozzle

18 heads

2

Water Rinse Nozzle

18 heads

3

Capping Head

1 heads

4

Filling Volume

330ML

5

Filling Speed

800-1500BPH

6

Air Pressure

0.6Mpa

7

Air Consume

0.15m3/min

8

Washing Water Pressure

0.2MPa

9

Washing Water Consume

About 1T-2T/hour

10

Main Motor Power

0.75KW

11

Total Power

2.5KW

12

Size

2600mm*1550mm*2200mm (length* width* height)

13

Total Weight

2500KG

14

Voltage

220/380V 50-60Hz (Can be customized)

15

Control

PLC+Touch Screen

16

Material

SUS 304

17

Filling Pressure

0.2~0.5Mpa



1

Name

Brand

2

Push Button

Schneider France

3

Electromagnetic Contactor

Schneider France

4

Relays

Omron Japan

5

Frequency Converter

Siemens

6

Air Cylinder

AirTAC Taiwan

7

Electromagnetic Valve

AirTAC Taiwan

8

PLC Control System

Siemens

9

Touch Screen

Siemens

10

Photoelectric Switch

Autonics

11

Proximity Switch

Autonics

12

Reducer

Zhejiang Duoli China

13

Sealing Motor

Zhejiang Duoli China

14

Barometer

AirTAC Taiwan

15

Bearing

Harbin China
