The series of products are the Automatic Glass Bottle Carbonated Drink Filling Machine, designed and developed on the basis of introducing the technology from Germany and combining the features in the production industry of pure in China. This machine is of good reliability of mechanical operation, perfect functions in rinsing, filling, capping, disinfecting and sterilizing, realizing filling the sterile into the sterile container in a sterile environment

1. This equipment is automatic washing filling capping three in one machine. Its of many advantages, such as compact structure, perfect control system and easy to be operated. Advanced touch screen and PLC control system makes man-machine communication true.

2. Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.

3. Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.

4. Main electrical components are all imported from world famous brands to guarantee excellent performance of the whole machine.

Introducing the MIC Automatic Glass Bottle Carbonated Drink Filling Machine

At Micmachinery, we are dedicated to providing innovative and reliable solutions for the beverage industry. Our MIC Automatic Glass Bottle Carbonated Drink Filling Machine is engineered to enhance production efficiency, achieving a remarkable filling speed of 800 to 1500 bottles per hour (BPH). This carbonated drink filling machine seamlessly integrates advanced technology with user-friendly features, making it an indispensable asset for beverage manufacturers.

Designed specifically for glass bottles, this automatic glass bottle soft drink filling machine ensures precise filling with minimal product loss. The advanced filling technology guarantees that each bottle is filled accurately, maintaining the quality of your carbonated beverages. With its adaptability, this machine caters to various bottle shapes and sizes, making it ideal for an array of drinks, from sodas to sparkling waters.

The robust construction of the MIC filling machine is crafted from high-quality materials, ensuring durability and longevity even under continuous operation. Safety is a priority, with multiple safety features designed to protect both operators and the production environment, adhering to stringent industry standards.

Energy efficiency is another hallmark of this machine, designed to optimize power consumption while maximizing output. This commitment to sustainability aligns with our vision for a greener manufacturing process, allowing you to reduce operational costs without compromising performance.

With Micmachinery, you gain a partner dedicated to enhancing your beverage production capabilities. The MIC Automatic Glass Bottle Carbonated Drink Filling Machine embodies our expertise in the industry, combining reliability, efficiency, and precision to meet the demands of modern manufacturing. Experience the difference with Micmachinery and take your production line to new heights.
The Carbonated Drink Filling Machine is a game-changing solution for carbonated beverage manufacturers, providing unparalleled efficiency, precision, and productivity. With its versatile design, hygienic construction, and advanced control systems, this machine enables seamless and consistent filling of carbonated drinks while maintaining the highest quality standards. By investing in this cutting-edge technology, beverage producers can stay ahead in the industry, meet consumer demands, and establish themselves as leaders in the competitive carbonated beverage market.

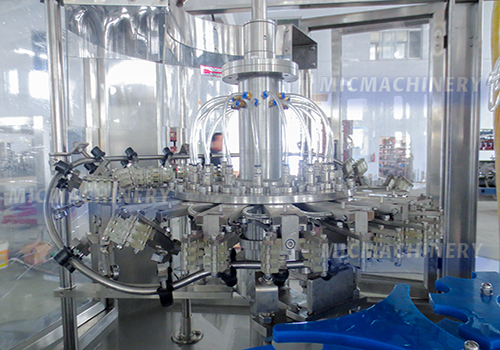

Washing Part

Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

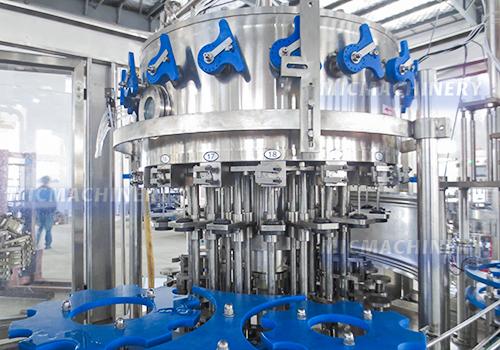

Filling Part

Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.
Rotary wheel fully made of stainless steel SUS 304. Filling valves are made of SUS316L. Filling valves are reasonably structured with accurate filling. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

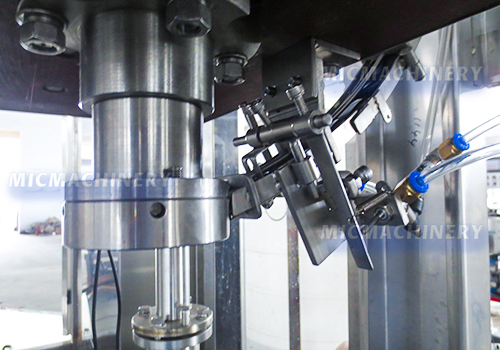

Capping Part

Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.

1

Filling Nozzle

18 heads

2

Water Rinse Nozzle

18 heads

3

Capping Head

1 heads

4

Filling Volume

330ML

5

Filling Speed

800-1500BPH

6

Air Pressure

0.6Mpa

7

Air Consume

0.15m3/min

8

Washing Water Pressure

0.2MPa

9

Washing Water Consume

About 1T-2T/hour

10

Main Motor Power

0.75KW

11

Total Power

2.5KW

12

Size

2600mm*1550mm*2200mm (length* width* height)

13

Total Weight

2500KG

14

Voltage

220/380V 50-60Hz (Can be customized)

15

Control

PLC+Touch Screen

16

Material

SUS 304

17

Filling Pressure

0.2~0.5Mpa


1

Name

Brand

2

Push Button

Schneider France

3

Electromagnetic Contactor

Schneider France

4

Relays

Omron Japan

5

Frequency Converter

Siemens

6

Air Cylinder

AirTAC Taiwan

7

Electromagnetic Valve

AirTAC Taiwan

8

PLC Control System

Siemens

9

Touch Screen

Siemens

10

Photoelectric Switch

Autonics

11

Proximity Switch

Autonics

12

Reducer

Zhejiang Duoli China

13

Sealing Motor

Zhejiang Duoli China

14

Barometer

AirTAC Taiwan

15

Bearing

Harbin China
