MIC 18-18-1 carbonated beverage filling machine(500-2000BPH)

E-mail: sales8@micmachinery.com
Mobile: 0086-13083991987
Whatsapp: 0086-13083991987
Wechat: 0086-13083991987
Shipment: exporting country
Customer reviews: click on

Video

INTRODUCTION
TECHNICAL PARAMETER
SETUP LIST
CUSTOMER REVIEWS

Features of filling machinery:
The whole procedure is full auto, and suitable for glass bottle and aluminum steel-proof caps for filling vodka, wine, sauce and etc. The applicable bottle type can be adjusted freely and conveniently. That is why the machine has more capacity and benefit compared other machine with same specification. This machine is adopted advanced programmable PLC, and make the machine running auto, and bottle input conveyor adopts transducer with speed adjustable, and bottle output conveyor adopts speed adjustable motor. Cooperation with transducer of main machine makes the bottle running smoothly and reliably, it is convenient to operate with high auto because of every part of machine is inspected to run by photoelectric detector. The machine is idea-preferred equipment for beverage makers.

Technical features

1, Filling valves adopt high-precision mechanic filling valve with mechanism of no bottle, no vacuumizing.

2, Out-placement mechanic structure. There is no spring in the valve.

3, There are two times of vacuumizing, equipping high pressure foam simulating device.

4, Driving adopts combination of open-type gear and gear. Adopt stepless frequency speed adjustment.

5, This machine equips automatic lubrication device.

6, Equip automatic washing device for broken bottles.

7, The lift of liquid tank, capping heads and control ring is electric to adapt to different height bottles.

8, The product level in the filling tank is controlled by electric probe to keep stable level and reliable filling.

9, Adopt PLC control.

Introducing the MIC 18-18-1 Beer Bottling Machine: Precision and Efficiency in Carbonated Beverage Filling

At Micmachinery, we are dedicated to delivering top-of-the-line bottling solutions for carbonated drinks. The MIC 18-18-1 Beer Bottling Machine (3000-4000BPH) is designed to meet the needs of high-volume production lines requiring precision and reliability in bottling carbonated beverages. This advanced carbonated beverage filling machine integrates cutting-edge technology to ensure your production process is smooth and efficient, offering optimal filling accuracy for both beer and other carbonated drinks.

The Carbonated Drink Filling Machine is engineered to handle the unique requirements of filling pressurized beverages, such as beer, soda, and sparkling waters. With a specially designed filling system, it maintains carbonation levels and prevents foaming, ensuring that your product retains its quality throughout the bottling process. This system reduces product waste while improving operational efficiency.

Additionally, this carbonated beverage filler offers robust performance at a capacity of 3000-4000 bottles per hour, making it ideal for medium-sized breweries and beverage producers. The machine features a highly automated process, allowing for minimal operator intervention and reducing the risk of contamination. Its design promotes easy maintenance, and its versatility ensures it can adapt to a wide range of bottle types and sizes.

Whether you're bottling beer or carbonated soft drinks, the MIC 18-18-1 Beer Bottling Machine delivers the efficiency, reliability, and precision that your production line demands, backed by Micmachinery's industry expertise and commitment to quality.

Washing Part

Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

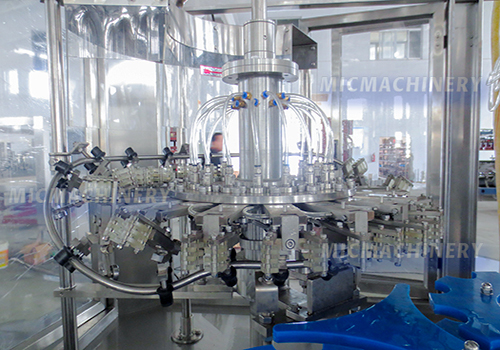

Filling Part

Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.
Rotary wheel fully made of stainless steel SUS 304. Filling valves are made of SUS316L. Filling valves are reasonably structured with accurate filling. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

Capping Part

Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.

1	Filling Nozzle	18 heads
2	Water Rinse Nozzle	18 heads
3	Capping Head	1 heads
4	Filling Volume	330ML
5	Filling Speed	800-1500BPH
6	Air Pressure	0.6Mpa
7	Air Consume	0.15m3/min
8	Washing Water Pressure	0.2MPa
9	Washing Water Consume	About 1T-2T/hour
10	Main Motor Power	0.75KW
11	Total Power	2.5KW
12	Size	2600mm1550mm2200mm (length* width* height)
13	Total Weight	2500KG
14	Voltage	220/380V 50-60Hz (Can be customized)
15	Control	PLC+Touch Screen
16	Material	SUS 304
17	Filling Pressure	0.2~0.5Mpa

1	Name	Brand
2	Push Button	Schneider France
3	Electromagnetic Contactor	Schneider France
4	Relays	Omron Japan
5	Frequency Converter	Siemens
6	Air Cylinder	AirTAC Taiwan
7	Electromagnetic Valve	AirTAC Taiwan
8	PLC Control System	Siemens
9	Touch Screen	Siemens
10	Photoelectric Switch	Autonics
11	Proximity Switch	Autonics
12	Reducer	Zhejiang Duoli China
13	Sealing Motor	Zhejiang Duoli China
14	Barometer	AirTAC Taiwan
15	Bearing	Harbin China
