Fully Automatic Pallet Wrapper

Introducing the Rocker Winding Machine YK-1800

At Micmachinery, we are dedicated to providing top-of-the-line solutions that enhance productivity and efficiency in manufacturing. Our Rocker Winding Machine YK-1800 is a state-of-the-art device designed to meet the rigorous demands of modern production environments. Known for its reliability and advanced features, the YK-1800 is an essential addition to any manufacturing line.

Key Features of the YK-1800
1. Seamless Integration
Engineered to operate in harmony with a fully automatic pallet wrapper, the YK-1800 enhances packaging versatility.
This integration ensures secure and consistent wrapping of products, minimizing damage during transport.
2. User-Friendly Controls
Designed with intuitive controls, operators can easily adjust settings for various winding requirements. Comprehensive guidance is provided in the pallet wrapping machine manual, which details setup, operation, and maintenance.
3. Robust Construction
Built with cutting-edge technology, the YK-1800 guarantees long-lasting performance and durability, making it a reliable choice for your production needs.

Maximize Your Efficiency
The Rocker Winding Machine YK-1800 is not just a standalone device; it enhances overall workflow efficiency by allowing quick transitions between winding and wrapping processes. Whether you're searching for a pallet wrapper for sale or a pallet wrapping machine for sale, the YK-1800 stands out as an ideal solution for optimizing your packaging operations.

Conclusion
Experience the efficiency and reliability of the Rocker Winding Machine YK-1800—the perfect choice for enhancing your packaging processes. At Micmachinery, we pride ourselves on professionalism and dedication to delivering innovative machinery tailored to our clients' needs.
For more information about the YK-1800 and to explore your options for a wrapping machine for pallets, contact us today!

Product Introduction: Rocker Winding Machine

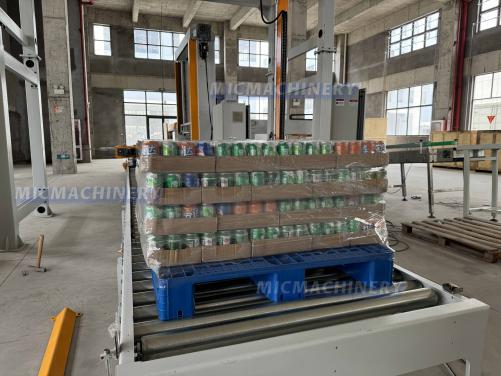

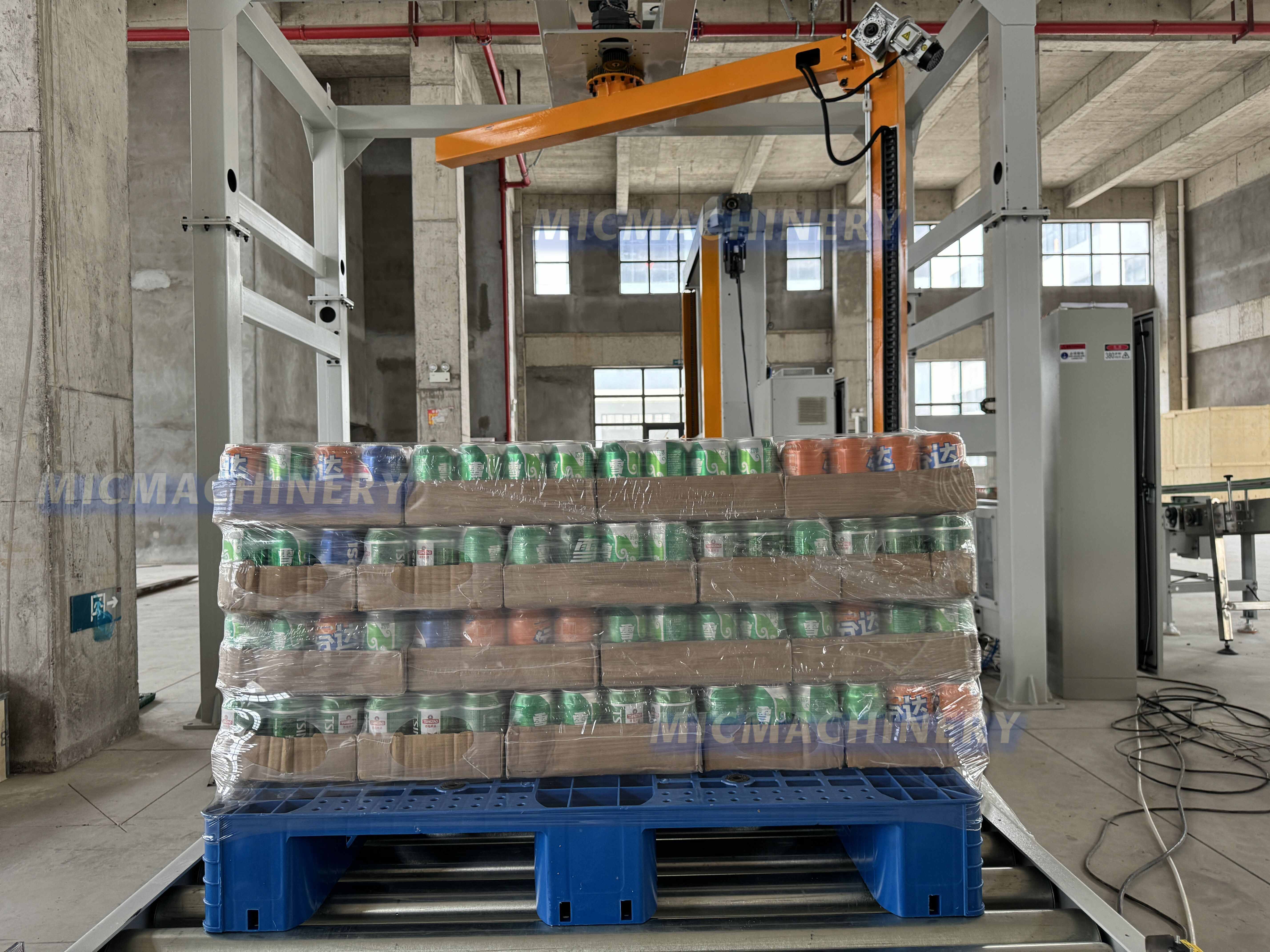

The Rocker Winding Machine operates by placing the object to be wrapped at the center of the turntable. When the turntable motor starts, it rotates, allowing the object to be securely wrapped with film. Simultaneously, the elevator motor activates, moving the winding machine's mold frame up and down to achieve comprehensive wrapping coverage.

Key Operating Principles：
-Film Tension Adjustment: The tension of the film is adjusted by varying the turntable speed and motor speed. For tighter film, ensure the turntable speed exceeds the film feeding speed, and vice versa for a looser wrap.
Versatile Applications: Widely used across various industries, including foreign trade exports, food and beverages, plastic chemicals, glass ceramics, and electromechanical castings. It improves production efficiency, prevents damage during transportation, and protects against dust, moisture, and contamination.

Main Performance Features
1. Programmable Control: PLC-based control with adjustable winding programs and parameters.
2. Automatic Height Sensing: Photoelectric switch automatically detects cargo height.
3. Safety Features: Includes an eye-catching flashing safety warning light and an emergency stop switch.
4. Pre-Stretch Film Mechanism:Automatically feeds film with pre-stretching capabilities.
5. Smooth Operation:Cantilever system features slow start, slow stop, and automatic reset.
6. Customizable Windings: Independent control for top and bottom winding counts.
7. Operation Modes: Supports both automatic and manual operation with minimal maintenance.
8. Quality Components:Electrical devices sourced from reputable manufacturers, all CE certified for safety.
9. User-Friendly Interface: Multi-functional touch display with real-time equipment status and fault detection guidance.

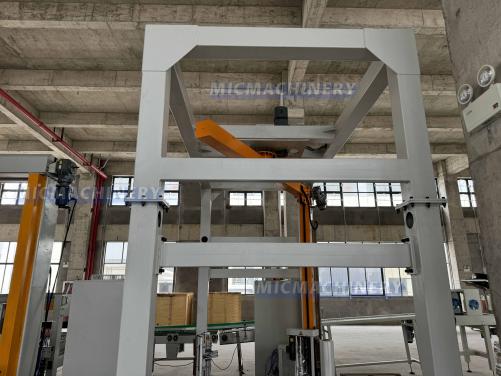

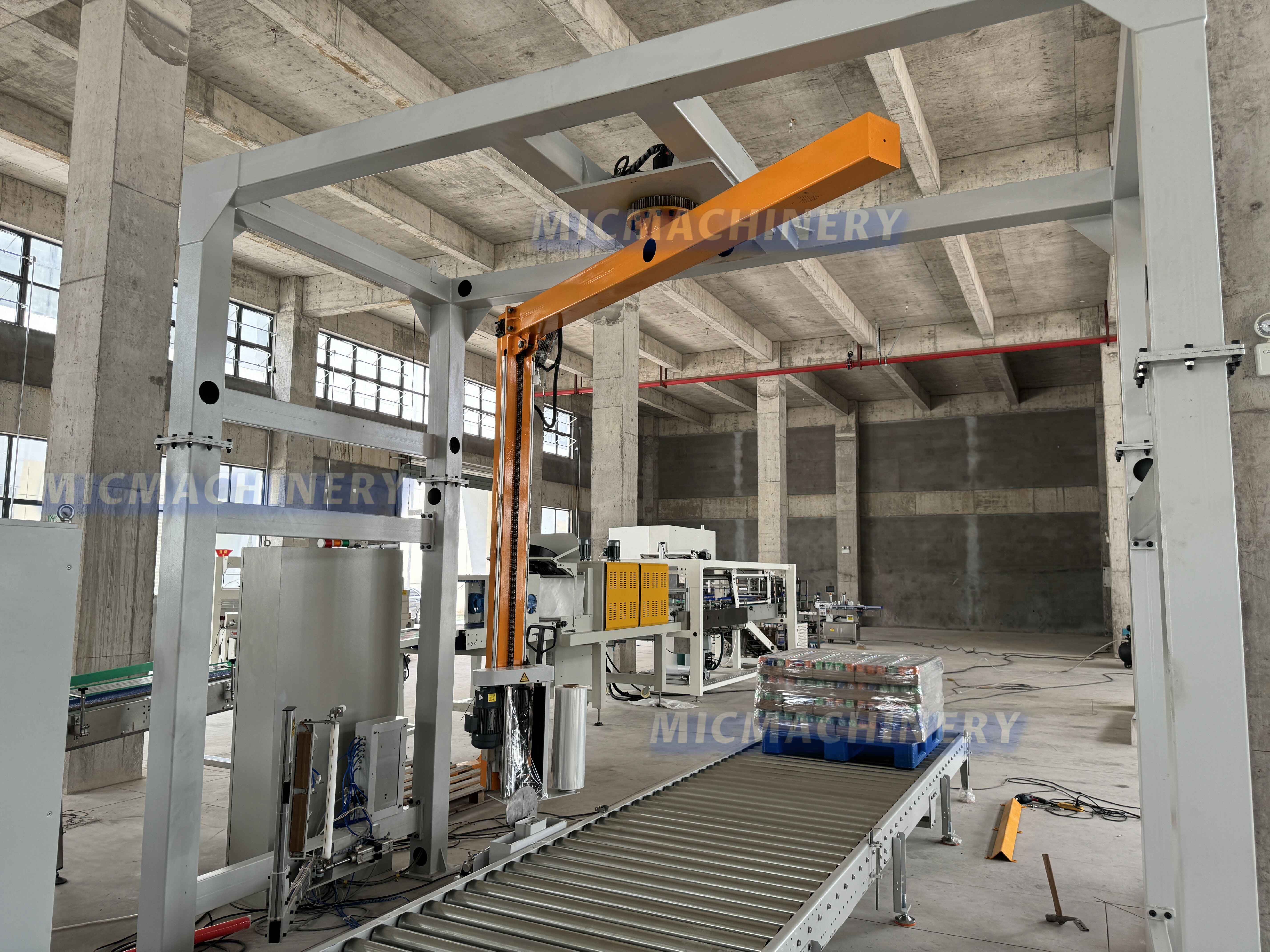

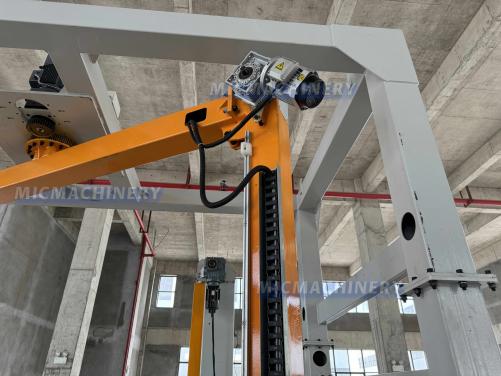

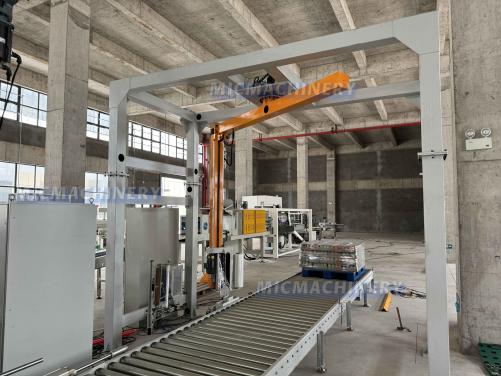

Cantilever System
Variable Speed Regulation: Up to 18 laps/minute with automatic reset capabilities.
Safety Touch Shutdown: Automatically halts operation upon touch.
Efficient Loading:Quick loading and unloading mechanisms, with a foldable design for easy transport.
Stable Support Structure: Integral slewing support structure ensures stability.

Film Rack System
1. Power Pre-Stretch Mechanism:Achieves 200% to 250% pre-stretching, reducing film usage.
2. Adjustable Speed: Rising, falling, and feeding speeds controlled by separate variable frequency AC motors.
3. Independent Winding Control:Top and bottom winding counts can be set separately.
4. Innovative Design:Patented open-door film rack design saves consumables and reduces costs.
5. Enhanced Safety Features:Double limit protection prevents significant damage from operational errors.

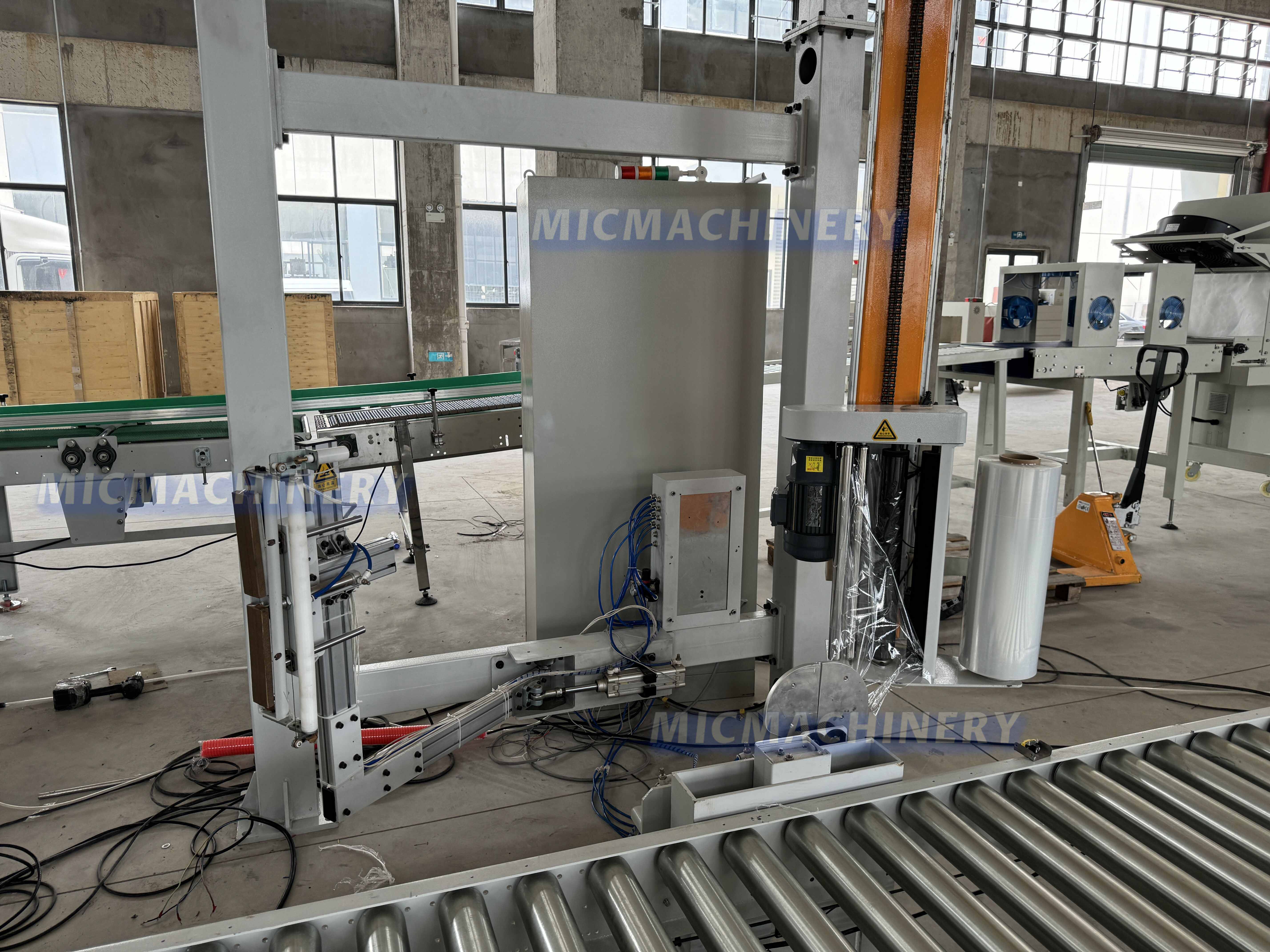

Film Cutting System
Heat Wire Cutting: Film is cut using a heating wire, with a tail fusion process to leave no residual film.
Film Clamping Mechanism: Pulls down the film to secure a solid wrapping point.
Blowing Device: Activates during packaging to ensure clean wrapping with no film tails.
Automatic Alerts: Stops and alarms in case of broken film or empty supplies.

Quick Installation
Easy Assembly: Four-column legs fixed with hinges for straightforward installation using a forklift.
Foldable Rocker Arm Frame: Simplifies disassembly and reassembly.

Online Signal Docking
1.Signal Output for Readiness: The wrapping machine signals when ready, allowing the conveying system to transport goods.
2. Start Signal Activation: The conveying system triggers the wrapping process once goods are in position.

3. Completion Signal： The wrapping machine outputs a completion signal, enabling the transport of packaged goods.

4. Continuous Operation: The system prepares for the next cycle, ensuring seamless workflow.

Wrapping size：	1200*1200*1800mm
Conveying height：	500mm
Applicable film：	Width 500mm, thickness 18~25 μ, outer diameter 220mm, inner diameter 76mm, weight 15KG/roll, stretch ratio: 200%
Rocker speed：	18 rpm
Power supply voltage:	380V/50HZ
Machine power:	2.2KW
Machine color (standard color):	Main color: 7035 computer white/gray hammer pattern; warning color: lemon yellow (color can also be customized, the fee is charged separately)

Touch screen	Siemens	Germany
PLC	Siemens	Germany
Main rotary inverter	Siemens	Germany
Lifting inverter	Siemens	Germany
Pre-tensioning inverter	Siemens	Germany
Travel switch	Schneider	France
Photoelectric switch	Pepperl+Fuchs	Germany
Proximity switch	Yangming, Taiwan	China
Main rotary moto	Zhongda	China
Lifting motor	Deli	China
Pre-tensioning moto	Zhongda	China
Cylinder	SMC	Japan
Solenoid valve	SMC	Japan
Gas consumption:	600L/min
Circuit breaker	Schneider	France
Contactor	Schneider	France
Main command element	Schneider	France
