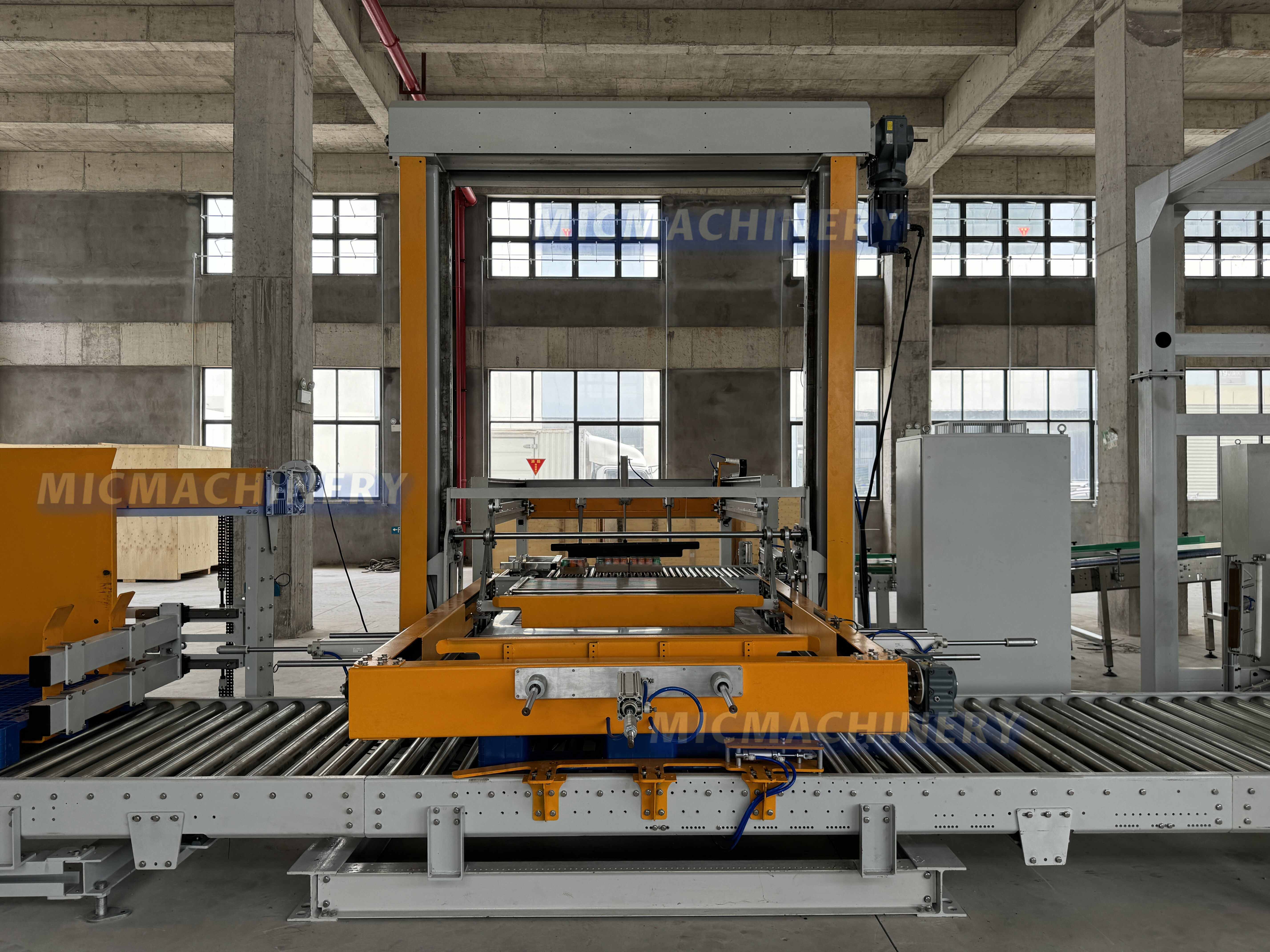

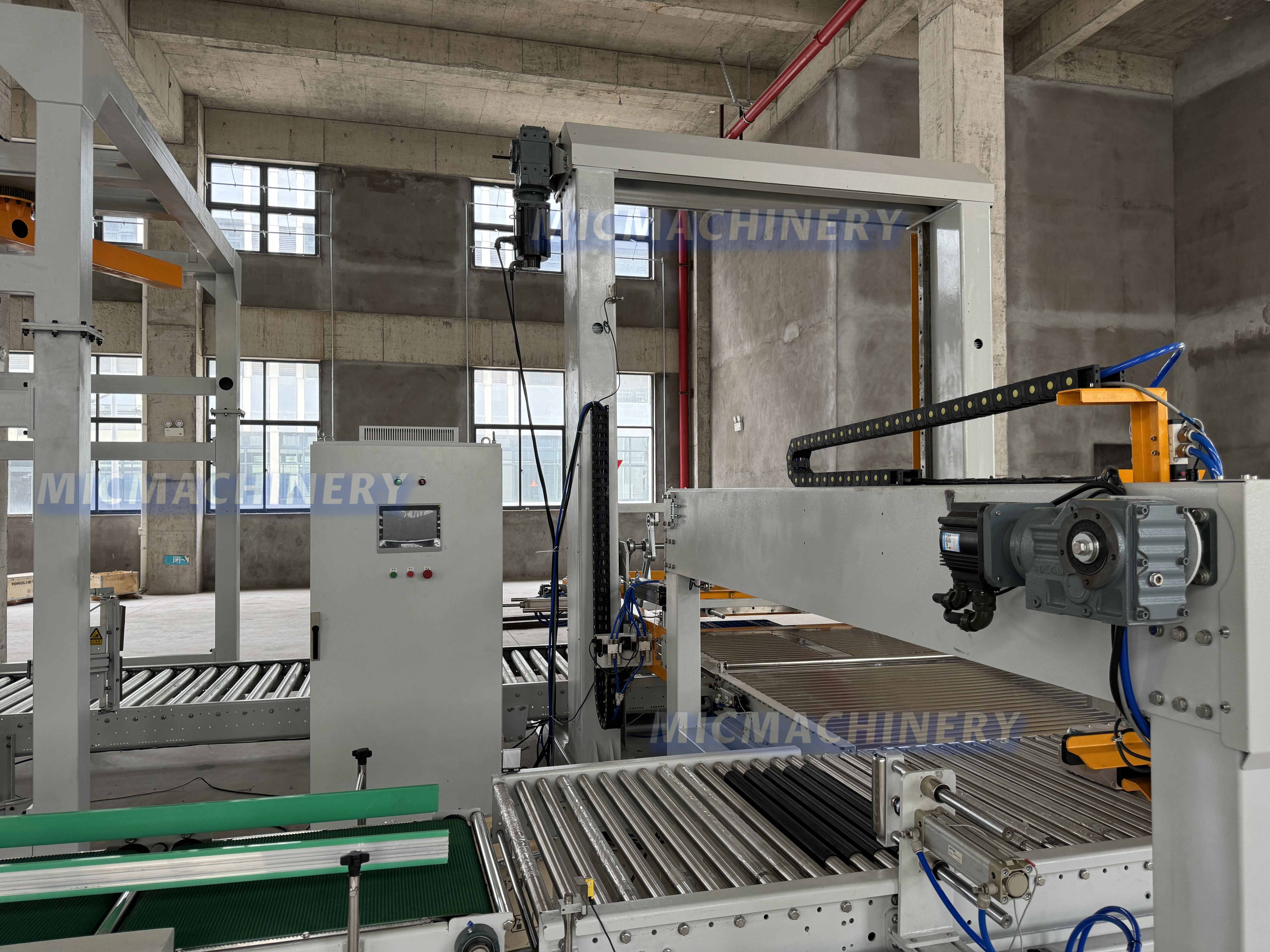

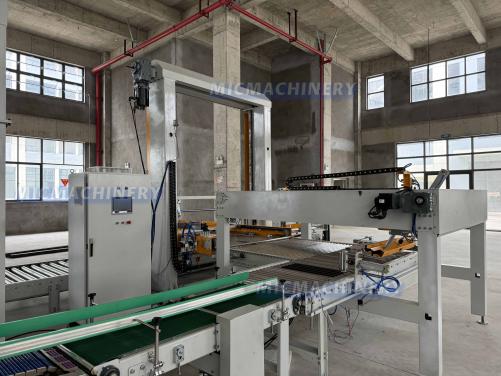

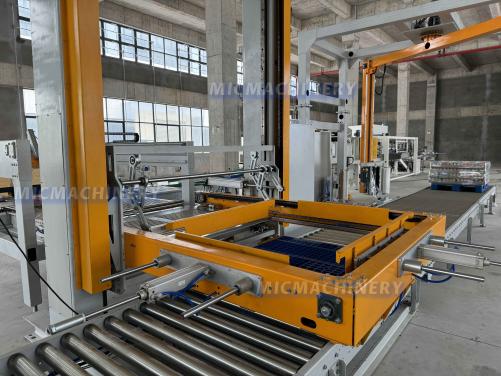

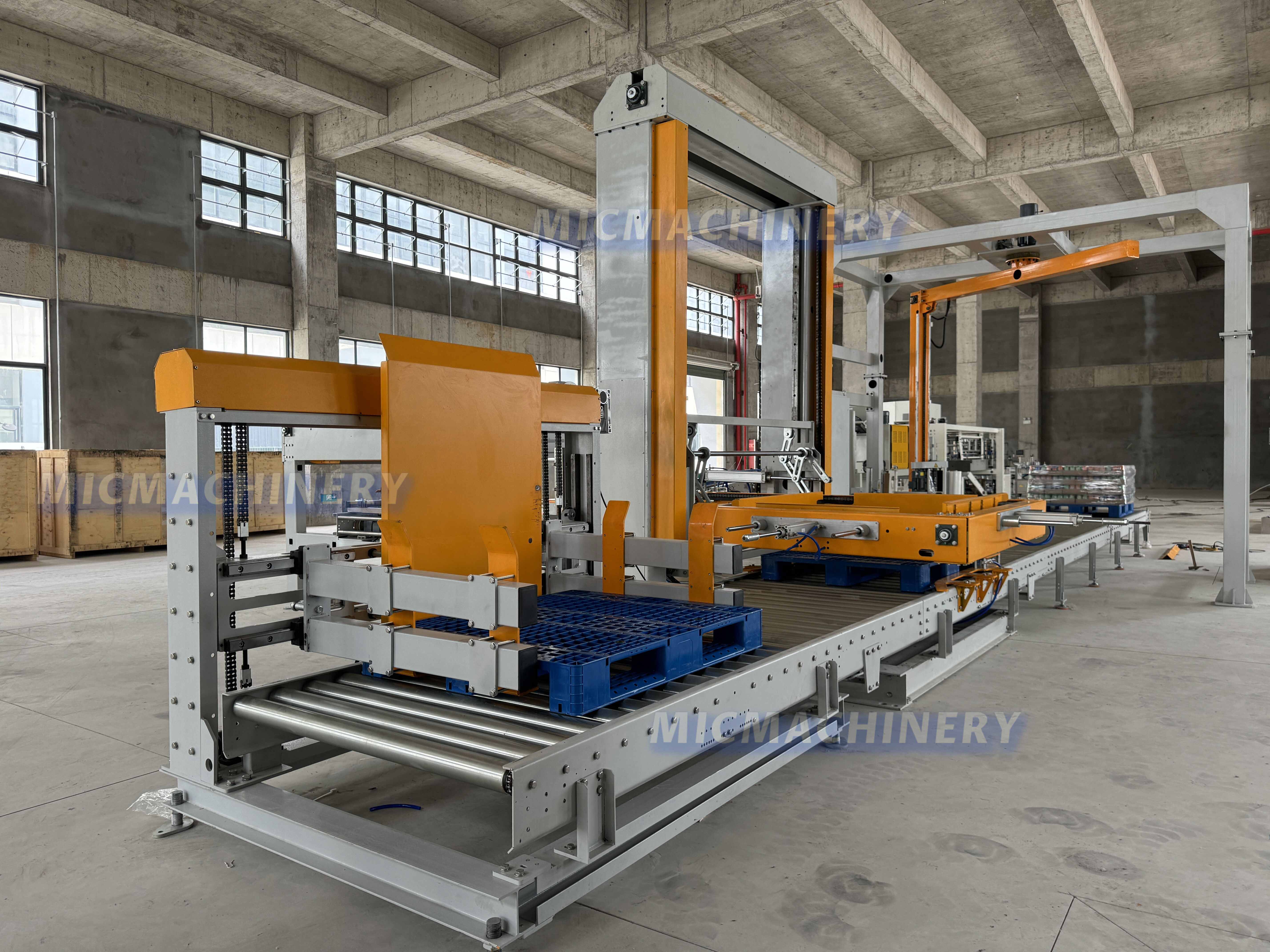

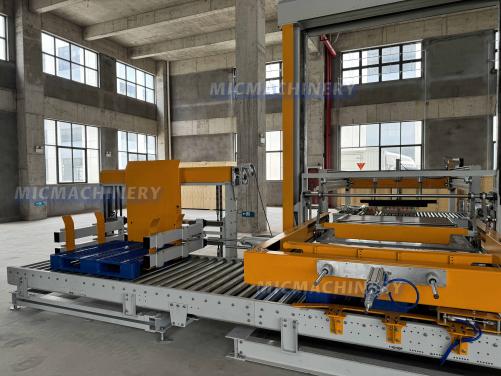

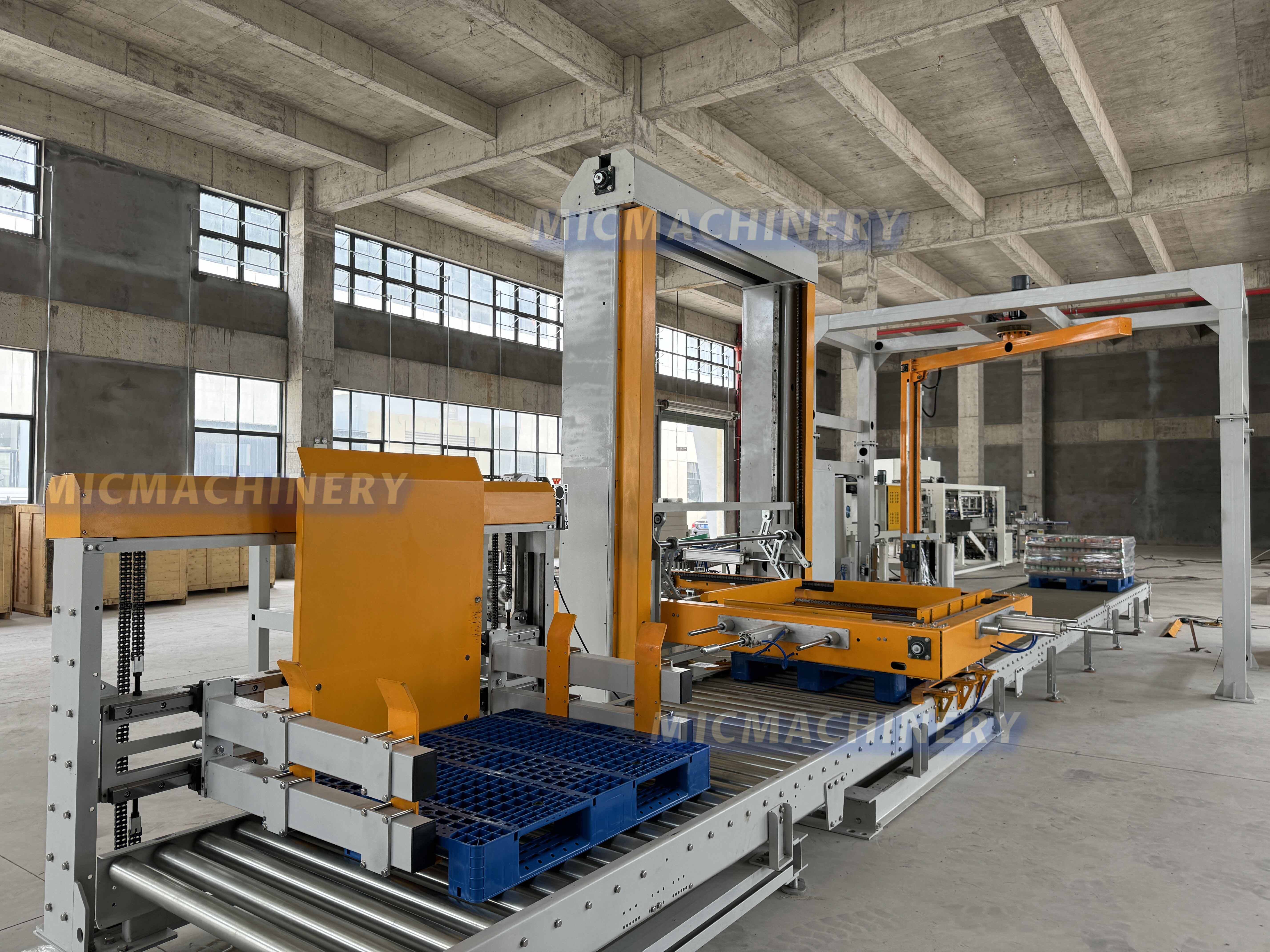

Gantry Palletizer JYMD30: Elevate Your Palletizing Efficiency

Introduction

At Micmachinery, we are thrilled to introduce the Gantry Palletizer JYMD30, a revolutionary solution that transforms palletizing efficiency in modern manufacturing. As a leader in palletising equipment, we are committed to providing advanced technology that enhances productivity and reliability in your operations.

Key Features of the JYMD30

1. High-Speed Operation

The JYMD30 excels in managing large volumes of products effortlessly, making it ideal for high-demand production lines.

Its robust robotic palletizing system minimizes manual intervention, significantly reducing labor costs while ensuring consistent accuracy in product handling.

2. Versatile Design

Accommodates various product shapes and sizes, including boxes, bags, and bottles.

Suitable for diverse industries, from food and beverage to pharmaceuticals.

3. Space-Efficient Structure

The compact gantry design requires minimal floor space, seamlessly integrating into facilities with limited operational areas.

Maximizes productivity without compromising performance.

4. User-Friendly Control Panel

Operators can easily set parameters and monitor processes, ensuring a smooth and efficient workflow.

5. Durability and Reliability

Built with high-quality materials, the JYMD30 withstands the rigors of continuous operation, reducing maintenance needs and ensuring long-lasting performance.

Customizable configurations allow for optimization of the palletizing process to meet specific production requirements.

6. Seamless Integration

The JYMD30 integrates effortlessly with existing conveyor systems and other machinery, creating a cohesive workflow that enhances overall efficiency.

Can be paired with a semi automatic depalletizer for a complete automated system, further streamlining operations.

Considerations for Investment

When evaluating your options, consider the palletizer price in relation to the advanced features and benefits offered by the JYMD30. Investing in this technology not only improves production efficiency but also provides long-term savings through reduced labor costs and operational downtime.

Conclusion

The Gantry Palletizer JYMD30 is more than just a machine; it is a transformative solution designed to elevate your palletizing operations. With high-speed capabilities and a versatile design, it stands out as a premier choice in palletizing in robotics.

At Micmachinery, we are dedicated to helping businesses maximize their efficiency and achieve their production goals.

For more information about the Gantry Palletizer JYMD30 and how it can revolutionize your palletizing process,contact us today!

Name	Model	Quantity	Unit Price (Yuan)	Total (Yuan)	Remarks
Gantry Palletizer	JYMD30	1set
Differential part		1set	14000	14000
Including one set of motor with brake + reducer + inverter, 8 sets of bearings, 4 sets of shafts with outer diameter of 80, one set of frame sheet metal, etc.
Compilation station part		1set	41000	41000
Including one set of motor + reducer + inverter, one set of servo motor + reducer + servo driver, including 70 stainless steel rollers + steel structure + 3 optical axes, 6 sets of cylinders, 4 sets of synchronous wheels, 2 sets of synchronous belts, 2 sets of lights, 2 sets of cold-drawn steel, etc.
Main lifting part		1set	58000	58000
Including one set of 4.4kw motor + reducer + servo controller, one set of motor + reducer + inverter, 2 sets of sprocket chains and drag chains, 24 rollers, sheet metal and steel structure, 5 sets of cylinders, 6 sets of sprockets, 2 sets of cold-drawn steel, etc.

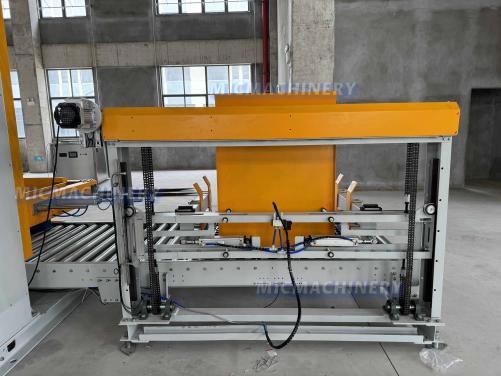

Pallet machine		1set	30000	30000
4 sets of cold-drawn steel, one set of motor + reducer + inverter, steel structure and sheet metal, 2 sets of cylinders
Pallet machine conveyor line		1set	40000	40000
Including 86 80 OD rollers, 3 sets of motors + reducers + inverters, one set of sheet metal and brackets, 2 sets of cylinders, and 35 chains
electric cabinet and control system		1set	32000	32000
Including one set of electric cabinet, PLC relay module, cable, pneumatic components, wire duct, etc.
Total price of the stacking machine				215000
Ball conveyor stainless steel (including motor inverter)		10m
Conveying 90° bend		1set
Fully automatic wrapping machine		1set	59000	59000
Fully automatic wrapping machine roller conveyor		3m	4000	12000
Safety guardrail		1set			Giveaway
Total including tax				286000

Standard capacity:	24 bottles (500ml) up to 33 packs/minute (max) 12 bottles (1000ml) up to 33 packs/minute (max) 6 bottles (1500ml) up to 33 packs/minute (max) Note: The palletizing speed is related to the pallet size and the grouping form of each layer. *Film package shape: 46 shape 24 bottles/package (500ml) 34 shape 12 bottles/package (1500ml) 23 shape 6 bottles/package (1500ml)**
Operation mode:	human-machine interface, free switching of palletizing mode
Maximum load per layer:	260KG
Maximum load per pallet:	1600KG
Maximum stacking height:	1700MM (excluding pallet height) (34 shape 12 bottles/package (1500ml), stacking 5 layers) (46 shape 24 bottles/package (500ml) can be stacked 7 layers) can be automatically adjusted according to product height.
Maximum size of pallet:	*13001100MM 12001100MM 11001000MM 12001000MM 1200800mm (can be customized)**
Motor power supply/power:	three-phase five-wire, AC 380V/50HZ, 10KW
Control voltage:	DC 24V
Air consumption:	500NL/MIN (air usage: 6-8KG/CM2) Air pipe interface size Φ16
Equipment size:	(L)10000MM×(W)6500MM×(H)400MM
Environmental conditions:	Temperature 0-40℃ Humidity 40-95%
Equipment weight:	7500KG
Two servo motors (1 4.4kw, 1.3kw 2 sets)	6 sets of reduction motors

No.	RLMD30 Configuration	Technology	Brand
1	plc	China	Huichuan
2	touch screen	China	Huichuan
3	variable frequency speed regulato	China	Huichuan
4	solenoid valve	TAIWAN	AirTac
5	cylinder	TAIWAN	AirTac
6	proximity electronic switch	Japan	OMRON
7	limit switch	Japan	OMRON
8	air switch	TAIWAN	AirTac
9	contactor r	France	Schneider
10	transmission belt	China	Shenzhou
11	switching power supply	France	Schneider
12	miniature circuit breaker	France	Schneider
13	intermediate relay	France	Schneider
14	servo motor	C-japan	Huichuan
15	reduction motor	China	Hengchi
16	main frame	China	cold rolled carbon steel
17	bearing	Japan	IKO
18	bearing with seat	China	Luoyang
