Adopt products: beer , craft beer , gas water, carbonated water, co2 water, etc liquid like carbonated drinks.
Machine working principle:
1. Isobaric filling system, controled by pressure, accuracy is +/-1%,liquid level difference is not more than 2mm. (requires steady pressure and temperature at 0-4degree).
2. Cap capping machine is qualified for Chinese seaming standard, and no air leakage at all.
3. About beer oxygen content, we have device for foaming after fill and remove oxygen of beer, and nitrogen filling for replace air too.
3. Aluminum cap and crown cap are ok problem working on our capping machine (different heads), We use our own technical drawing and own processing machine, to make sure our seaming head quality and always easy to purchase.
4. If bottle stock on conveyor sensor will inform PLC to stop at the feeding part.
5. About machine automation, we are able to do what client required.
6. About machine test and shipment, we are stick with real production test till all problem is fix and then ship out.
7. Consider of product various ability, we are able to make machine for replace air from the can package.
For this production line you might be interested in:
Related machines are: bottle filling capping machine, glass bottle capping machine, rotated oil bottle filling machine, rotated oil filling machine, beer filling machine, beer capping machine, beer bottling machine and beer filler.

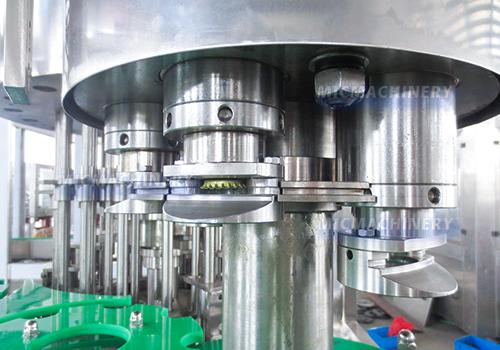

Capping Part
Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. The capper is equipped with inlet bottle detection switch.
Filling Part
Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), filling pump, bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.
Rotary wheel fully made of stainless steel SUS 304. Filling valves are made of SUS316L. Filling valves are reasonably structured with accurate filling. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

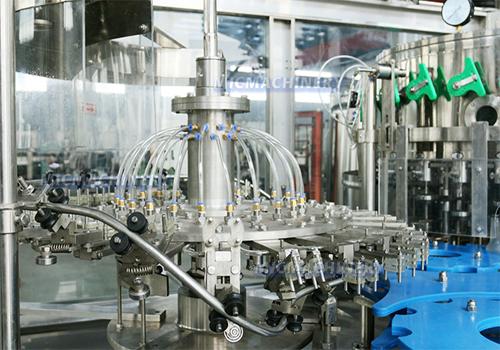

Washing Part
Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.
Model |
MIC-24-24-6 |
Washing heads |
24pcs |
Filling heads |
24pcs |
Capping heads |
6pcs |
Volume |
0.1-1L Customizable |
Production capacity |
4000-5000bottle/hr |
Filling method |
Isobaric |
Power |
4.5kw 380V/50HZ(According to customer) |
Air pressure |
0.7Mpa |
Bottle height, bottle diameter |
180-300MM ¢50-90MM |
Wash bottle water pressure |
0.6~0.8 Mpa |
Weight |
3500Kg |
Dimension |
2200×1800×2550mm |
Filling speed |
4000-5000BPH |
1 |
Name |
Brand |
2 |
Push Button |
Schneider France |
3 |
Electromagnetic Contactor |
Schneider France |
4 |
Relays |
Omron Japan |
5 |
Frequency Converter |
Siemens |
6 |
Air Cylinder |
AirTAC Taiwan |
7 |
Electromagnetic Valve |
AirTAC Taiwan |
8 |
PLC Control System |
Siemens |
9 |
Touch Screen |
Siemens |
10 |
Photoelectric Switch |
Autonics |
11 |
Proximity Switch |
Autonics |
12 |
Reducer |
Zhejiang Duoli China |
13 |
Sealing Motor |
Zhejiang Duoli China |
14 |
Barometer |
AirTAC Taiwan |
15 |
Bearing |
Harbin China |
